JED4430WR01 01 – COOKTOP PARTS

JED4430WR01 01 – COOKTOP PARTS

Written by

in

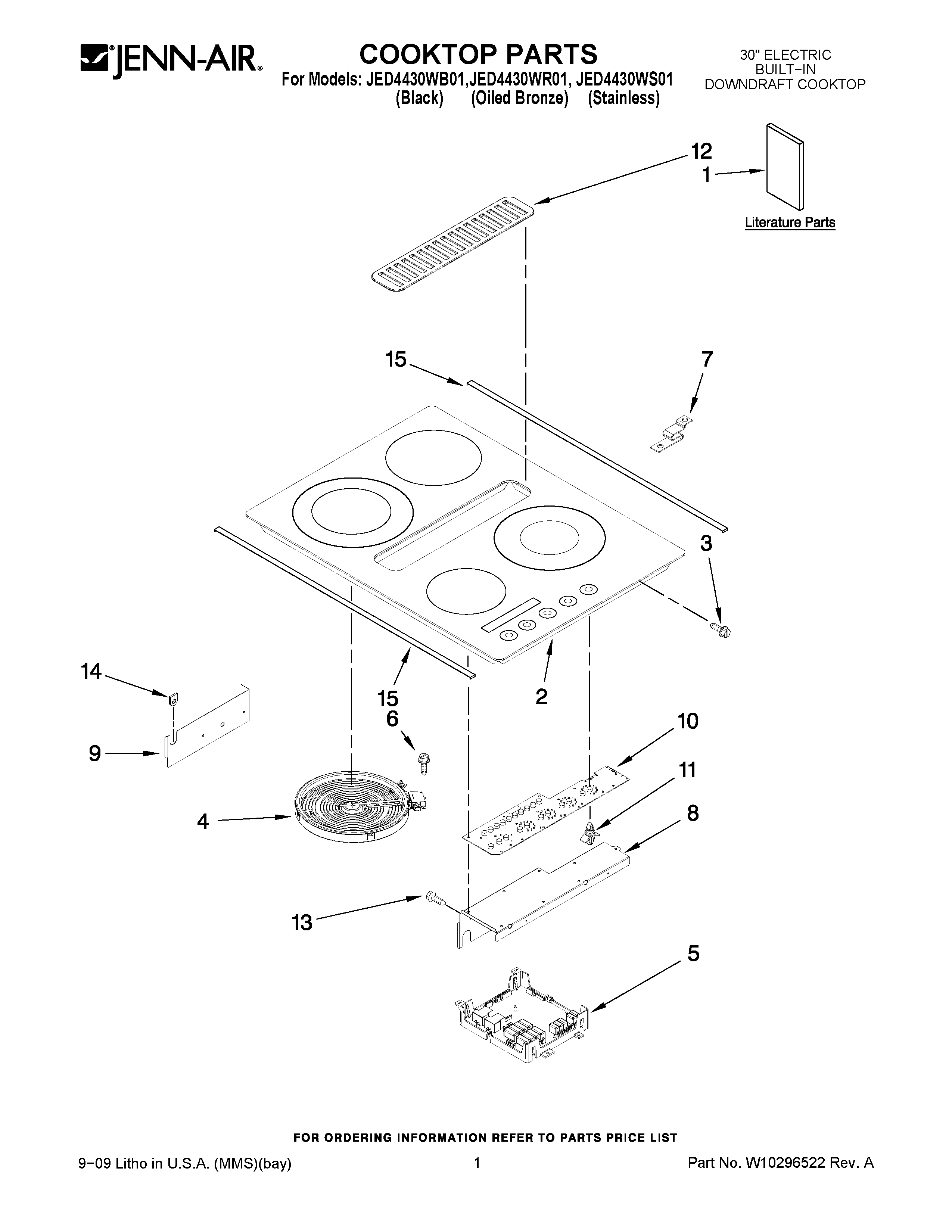

JED4430WR01 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10197057
1MAY W10277486
1MAY W10277485
1MAY W10197059
1CARD, FLOW TESTER
1TIPS, SAFE COOKING (FRENCH)
2TOP, MAIN (BLACK)
2MAY W10163204
4ELEMENT (1800W) (LEFT FRONT AND RIGHT REAR)
4ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
4ELEMENT, SURFACE (ELEMENT, DUAL (3000W) (LEFT FRONT))
4ELEMENT, SURFACE (ELEMENT, DUAL (2200W) (RIGHT REAR))
5MAY W10190396
6MAY 7101P426- 60
7SUPPORT, ELEMENT
8MAY W10225919
9MAY W10223167
10MAY W10190398
11MAY W10225914
12GRILLE, AIR (BLACK)
13MAY 7101P427-60
14MAY 8008P068-60
15TRIM,COOKTOP SS MODEL ONLY (REAR)
