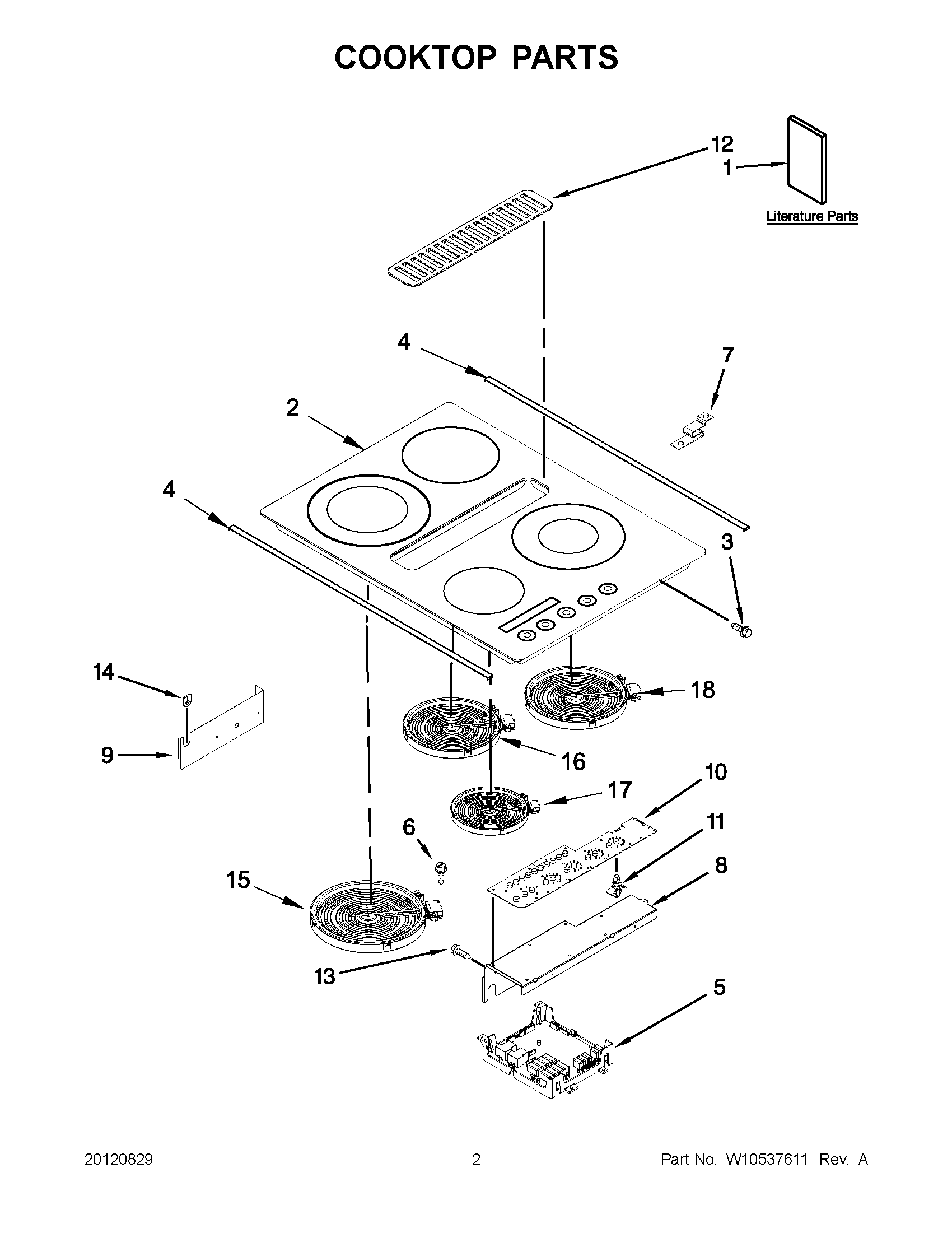

JED4430WS02 01 – COOKTOP PARTS

JED4430WS02 01 – COOKTOP PARTS

Written by

in

JED4430WS02 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10197057
1MAY W10470341
1MAY W10470345
1CARD, FLOW TESTER
1MAY W10436037
1TIPS, SAFE COOKING (FRENCH)
2TOP, MAIN (BLACK)
2MAY W10163204
4TRIM,COOKTOP SS MODEL ONLY (REAR)
5MAY W10190396
6MAY 7101P426- 60
7SUPPORT, ELEMENT
8MAY W10225919
9MAY W10223167
10MAY W10190398
11MAY W10225914
12GRILLE, AIR (BLACK)
13MAY 7101P427-60
14MAY 8008P068-60
15ELEMENT, SURFACE (ELEMENT, DUAL (3000W) (LEFT FRONT))
16ELEMENT (1800W) (LEFT FRONT AND RIGHT REAR)
17ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
18ELEMENT, SURFACE (ELEMENT, DUAL (2200W) (RIGHT REAR))
