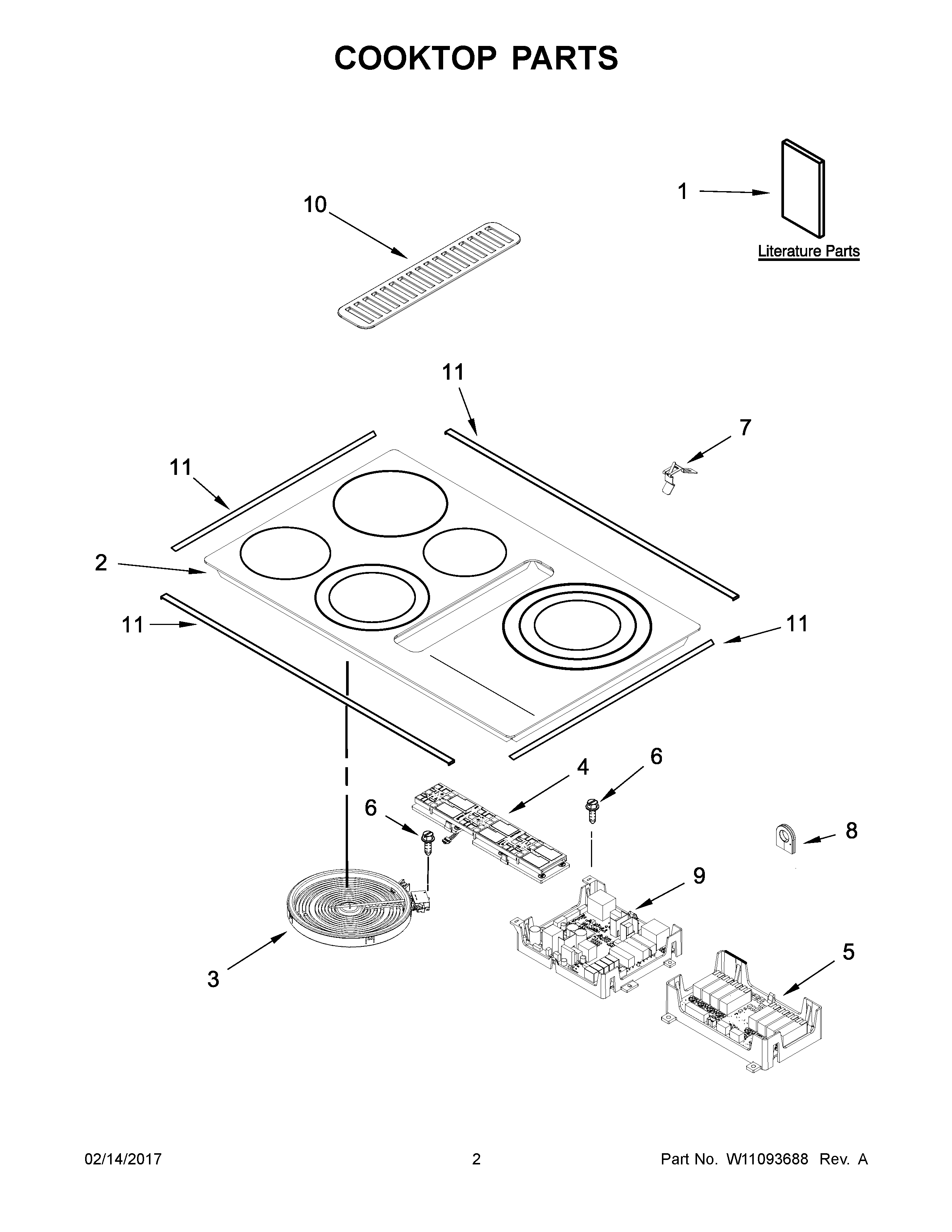

JED4536GB00 02 – COOKTOP PARTS

JED4536GB00 02 – COOKTOP PARTS

Written by

in

JED4536GB00 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10836939
NILINER (NOT A SERVICEABLE PART)
NISEAL, LIMITER
NIKIT, PLENUM SCREW
NIMAY W10809385
1AINSTRUCTIONS, USER
1DMAY W11031714
1BTIPS, SAFE COOKING (ENGLISH)
1EMAY W10917835
1INSTRUCTIONS, INSTALLATION
1CTIPS, SAFE COOKING (FRENCH)
2MAY W10794981
2AMAY W10908407
3CELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
3BELEMENT (3000/1400W) (LEFT FRONT)
3ELEMENT (1300W) (LEFT REAR)
3DELEMENT (4500W) (CENTER)
3AELEMENT (1800W) (LEFT FRONT AND RIGHT REAR)
4MAY W11032485
5MAY W10817976
6MAY 7101P426- 60
7SPRING, ELEMENT
8MAY W10324729
9MAY W10817979
10GRILLE, AIR (BLACK)
11MAY W10836025
