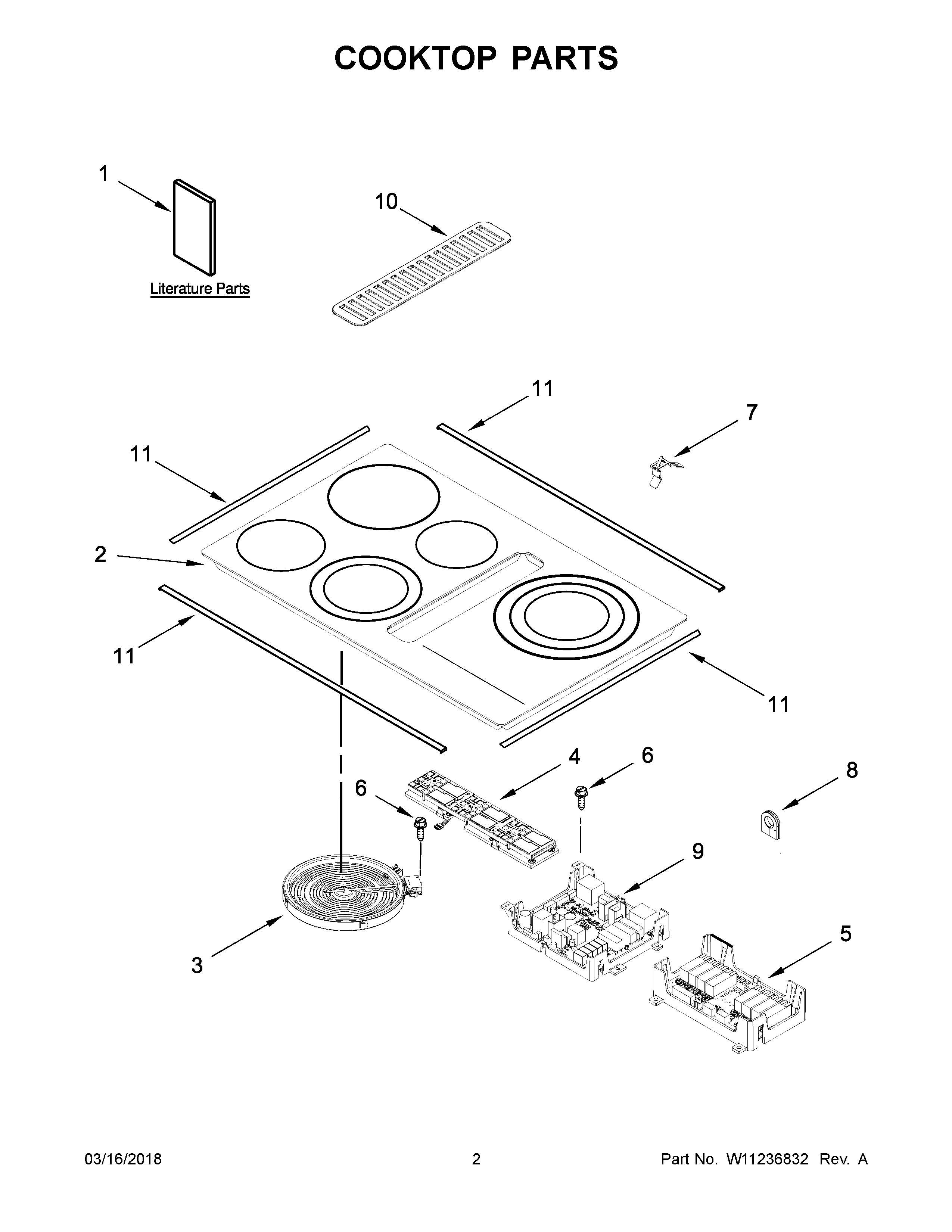

JED4536GB01 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W11171892
NI	MAY W11174860
NI	KIT, PLENUM SCREW
NI	Screw, Ground
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 8286642
NI	SEAL, LIMITER
1A	INSTRUCTIONS, USER
1	INSTRUCTIONS, INSTALLATION
1B	MAY W11031714
1C	MAY W10917835
2A	MAY W10908407
2	MAY W10794981
3C	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
3B	ELEMENT (3000/1400W) (LEFT FRONT)
3	ELEMENT (1300W) (LEFT REAR)
3A	ELEMENT (1800W) (LEFT FRONT AND RIGHT REAR)
3D	ELEMENT (4500W) (CENTER)
4	MAY W11032485
5	MAY W10817976
6	MAY 7101P426- 60
7	SPRING, ELEMENT
8	MAY W10324729
9	MAY W10817979
10	GRILLE, AIR (BLACK)
11	MAY W10836025
