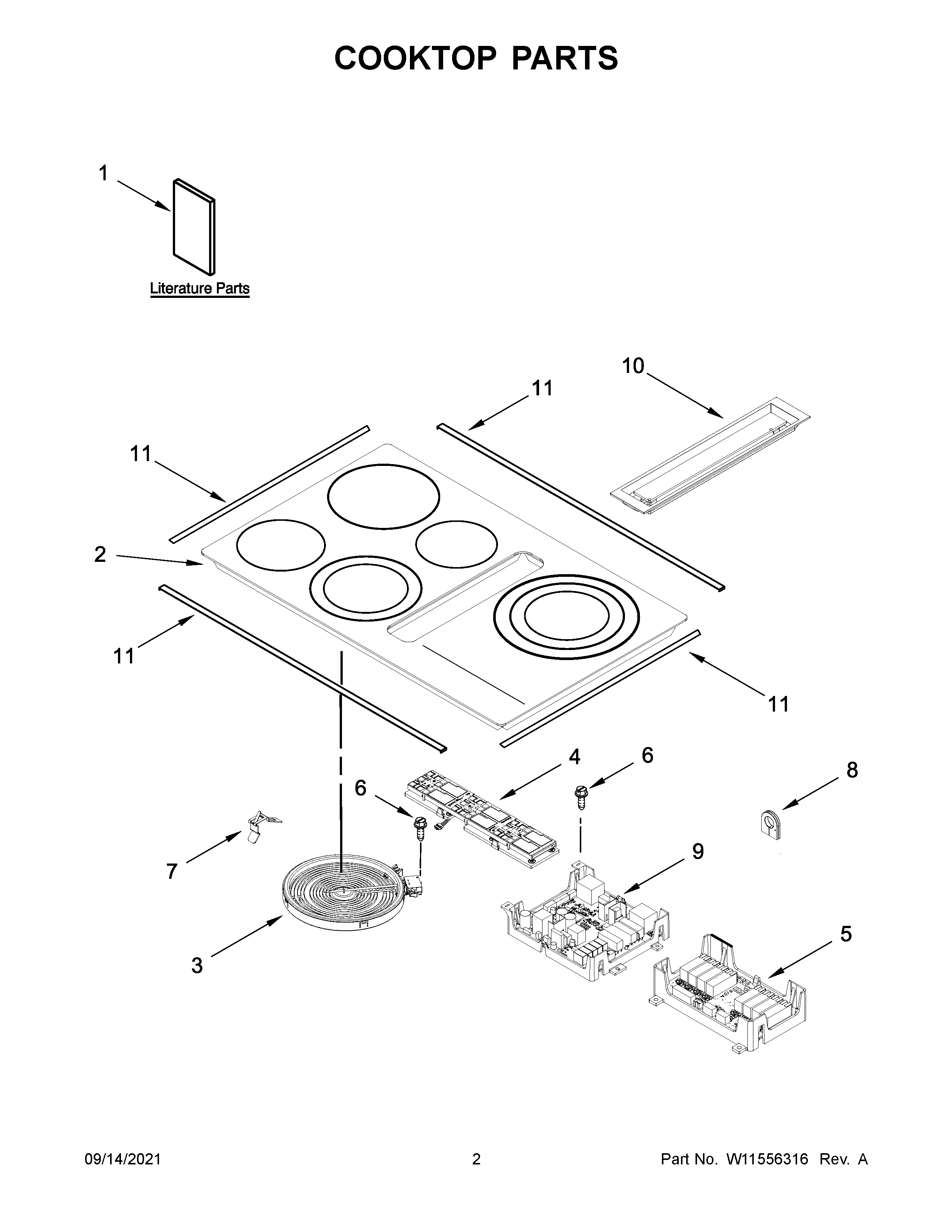

JED4536KS00 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, COOKTOP ELEMENT
NI	SCREW
NI	W10491984 Whirlpool Switch Seal
NI	WP8286642 Whirlpool Tape
NI	HARNESS, MAIN
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10909126 Whirlpool Screw
1B	SHEET, TECH
1C	DIAGRAM, WIRING
1	INSTRUCTIONS, USER
1A	INSTRUCTIONS, INSTALLATION
2A	COOKTOP ASSEMBLY (STAINLESS)
2	COOKTOP ASSEMBLY (BLACK)
3D	WPW10298145 Whirlpool Surface Element
3C	ELMNT-SURF
3	WPW10342780 Whirlpool Surface Element
3A	WP8273993 Whirlpool Surface Element
3B	W11517959 Whirlpool Electric Range Radiant Surface Element
4	W11569459 Whirlpool Display Assembly
5	W11083952 Whirlpool Electronic Control Board + Core
6	SCREW
7	WPW10225448 Whirlpool Spring Assembly
8	GROMMET, WIRE
9	W11556188-includeCORE Whirlpool W11556188 Refrigerator Electronic Control Board + Core
10	W11476087 Whirlpool Grille
11	W11093627 Whirlpool Cooktop Trim
