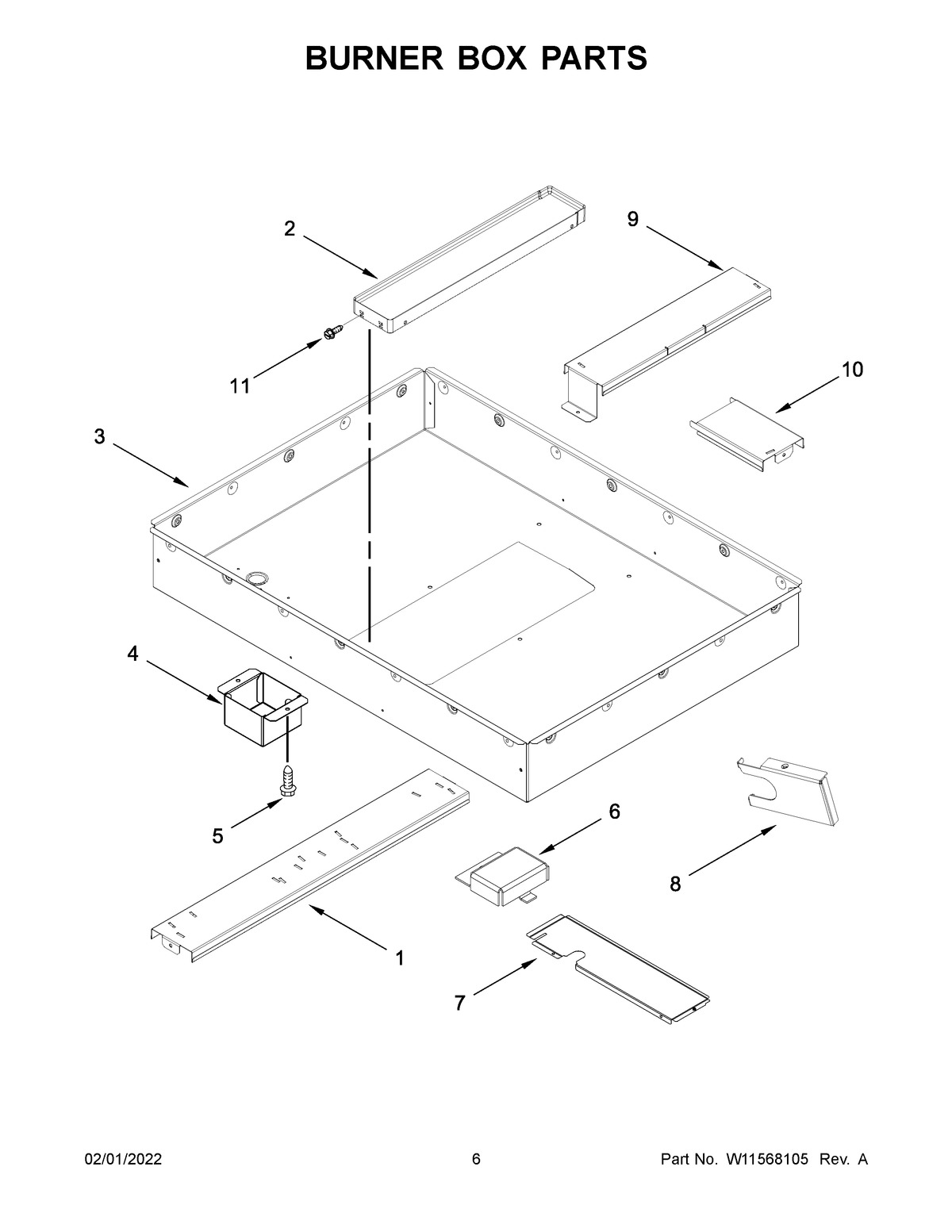

JED4536KS01 04 – BURNER BOX PARTS

Written by

Products

Position	Product
1	RAIL, STRAIGHT
2	W10235990 Whirlpool Drip Tray
3	CABINET (NOT A SERVICEABLE PART)
4	W10258697 Whirlpool Wire Cover
5	SCREW
6	8285593 Whirlpool Oven Wire Cover
7	SHIELD, HEAT
8	SHIELD, SIDE HEAT
9	RAIL, RIGHT
10	RAIL, ELEMENT SUPPORT
11	WPY706189 Whirlpool Stove Screw
