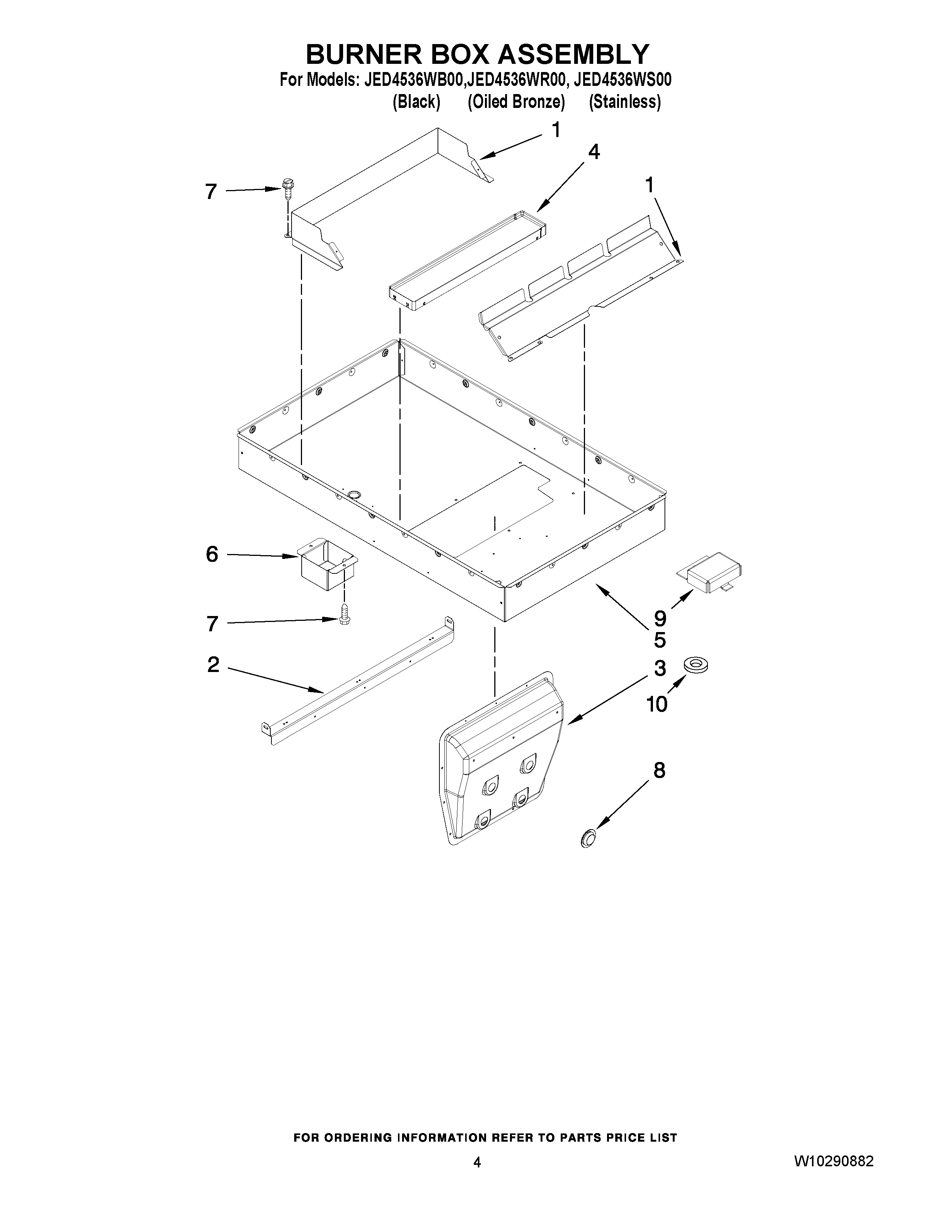

JED4536WB00 03 – BURNER BOX ASSEMBLY

Written by

Products

Position	Product
1	BRACKET, BURNER BOX SHIELD (RIGHT)
1	BRACKET, BURNER BOX SHIELD (LEFT)
2	MAY W10254665
3	BYPASS, PLENUM SIDE
4	TRAY, SPILL
5	MAY W10267688
6	COVER, BLOWER MOTOR HARNESS
7	MAY 7101P426- 60
8	PLUG, HOLE
9	MAY 8285593
10	MAY 8008P004-60
