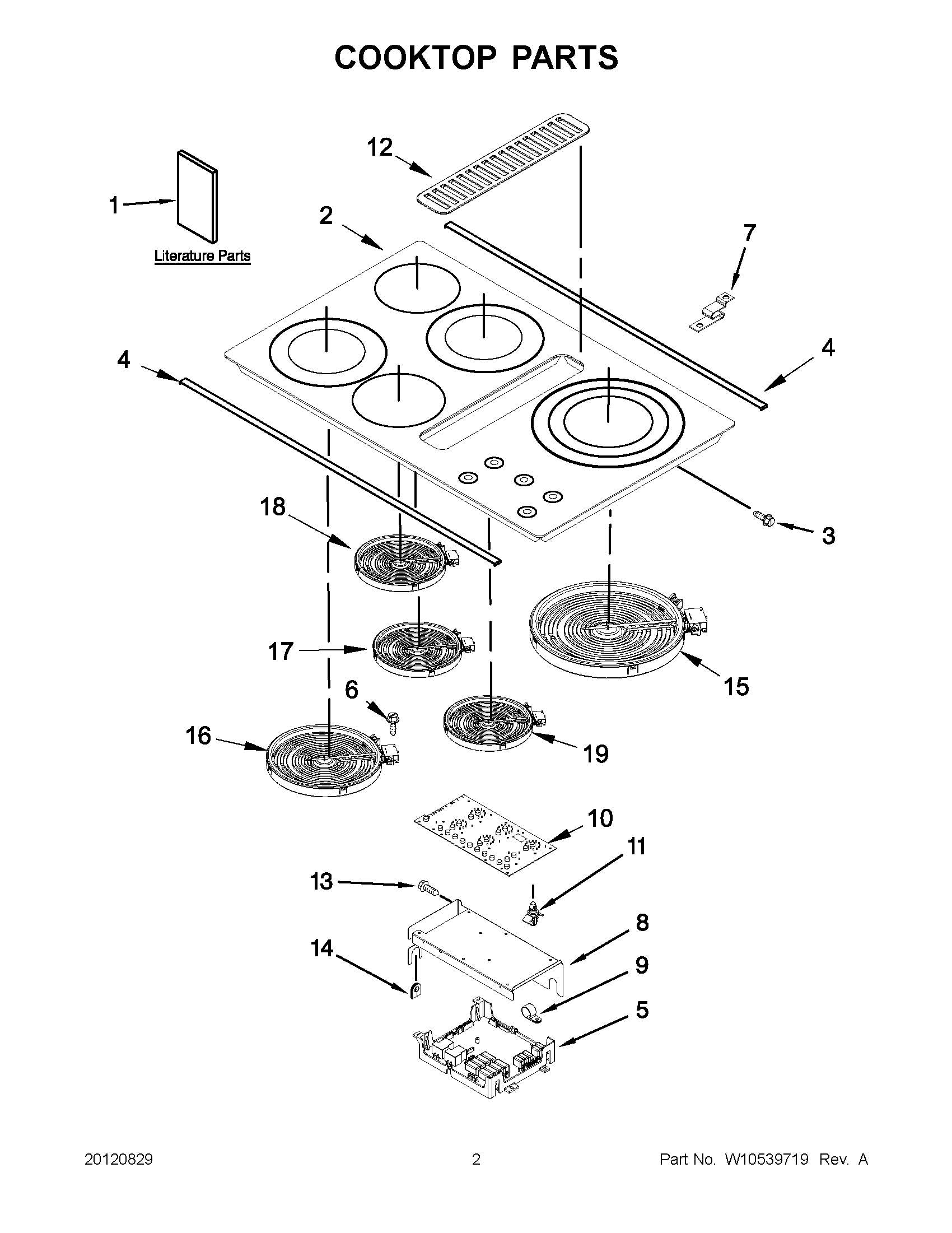

JED4536WB02 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10470332
1MAY W10197057
1MAY W10436037
1MAY W10470337
1CARD, FLOW TESTER
1TIPS, SAFE COOKING (FRENCH)
2MAY W10161726
2MAY W10162423
4TRIM, COOKTOP FOR SS MODEL ONLY (STAINLESS) (REAR)
5MAY W10190396
6MAY 7101P426- 60
7SUPPORT, ELEMENT
8MAY W10225920
9MAY 7111P020-60
10MAY W10190399
11MAY W10225914
12GRILLE, AIR (BLACK)
13MAY 7101P427-60
14MAY 8008P068-60
15ELEMENT, TRIPLE (2700W) (LEFT FRONT)
17ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
18ELEMENT (CTR)
19ELEMENT, SURFACE (ELEMENT, DUAL (2200W) (RIGHT REAR))
