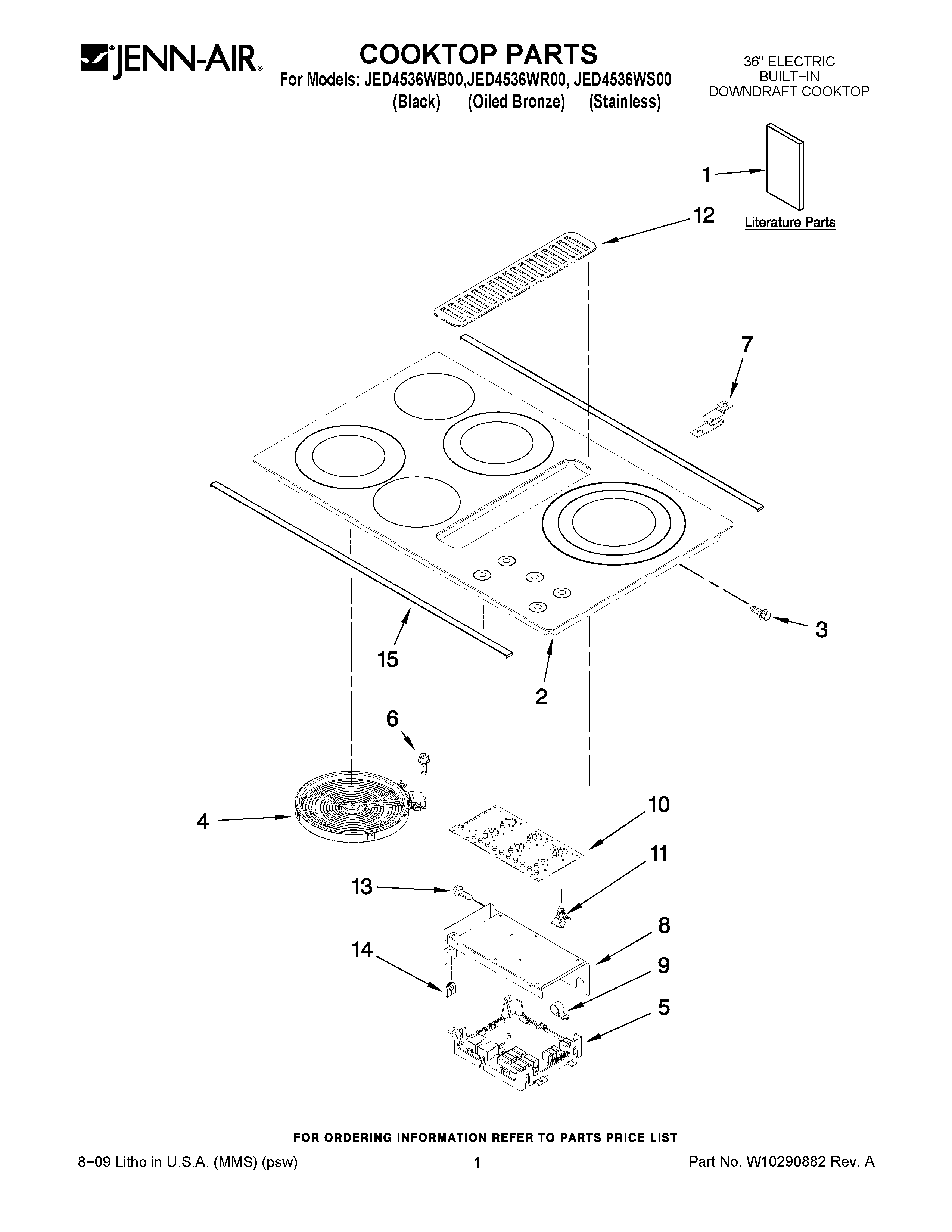

JED4536WR00 01 – COOKTOP PARTS

JED4536WR00 01 – COOKTOP PARTS

Written by

in

JED4536WR00 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10197059
1MAY W10197057
1MAY W10254695
1MAY W10254696
1TIPS, SAFE COOKING (FRENCH)
1CARD, FLOW TESTER
2MAY W10161726
2MAY W10162423
4ELEMENT, SURFACE (ELEMENT, DUAL (2200W) (RIGHT REAR))
4ELEMENT (CTR)
4ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
4ELEMENT, TRIPLE (2700W) (LEFT FRONT)
5MAY W10190396
6MAY 7101P426- 60
7SUPPORT, ELEMENT
8MAY W10225920
9MAY 7111P020-60
10MAY W10190399
11MAY W10225914
12GRILLE, AIR (BLACK)
13MAY 7101P427-60
14MAY 8008P068-60
15TRIM, COOKTOP FOR SS MODEL ONLY (STAINLESS) (REAR)
