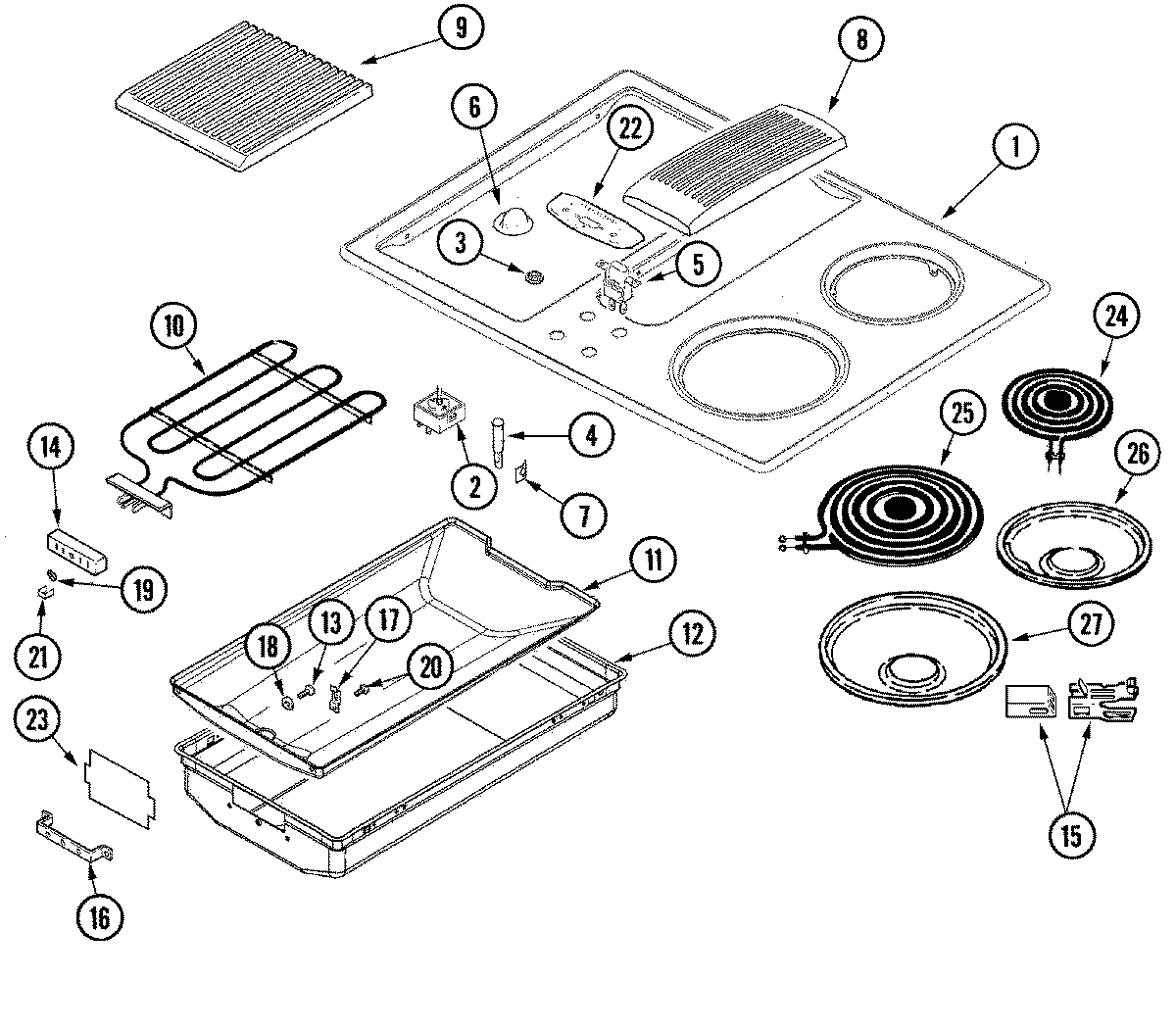

JED8130ADB 03 – TOP ASSEMBLY

Products

Position	Product
1	SCREW
1	MAY 74005901
2	W11088181 Whirlpool Surface Element Switch
2	MAY Y705255
2	SCREW
3	MAY 71001561
4	74005790 Whirlpool Light Indicator Red
5	12001452 Whirlpool Relay Change
5	MAY 71001564
6	WP7737P193-60 Whirlpool Knob
7	WP7112P152-60 Whirlpool Clip
8	MAY 74005794
9	MAY 74006513
9	MAY 74005795
10	MAY Y703571
10	MAY Y700449
10	Y708862 Whirlpool Speed Nut
10	WPW10310263 Whirlpool Grille Element
11	MAY 74005797
12	MAY 74005799
13	WP12990527 Whirlpool Microwave Screw
14	WPY708730 Whirlpool Terminal Block
15	WP74007474 Whirlpool Dishwasher Element Receptacle
16	MAY 74005798
17	MAY Y702699
17	74004835 Whirlpool Clip
18	MAY 74005796
19	M0282009 Whirlpool Air Conditioner Nut
20	WP489128 Whirlpool Refrigerator Screw
21	MAY Y700450
22	W10341820 Whirlpool Fan Switch
23	MAY 74005866
24	WPY04100165 Whirlpool Surface Element
24	WP660532 Whirlpool Oven Surface Element
25	00484791 Bosch Oven Heating Element
25	WPY04100166 Whirlpool Oven 8" Surface Element
26	715877 Whirlpool Electric Range 6" Chrome Drip Pan
27	715878 Whirlpool Range 8" Chrome Drip Pan
28	MAY 74005842
28	MAY 74005843
28	MAY 74005841
28	MAY 74005844
29	MAY 74005475
29	MAY 16008409
29	MAY EC001-00
30	MAY 74005526
