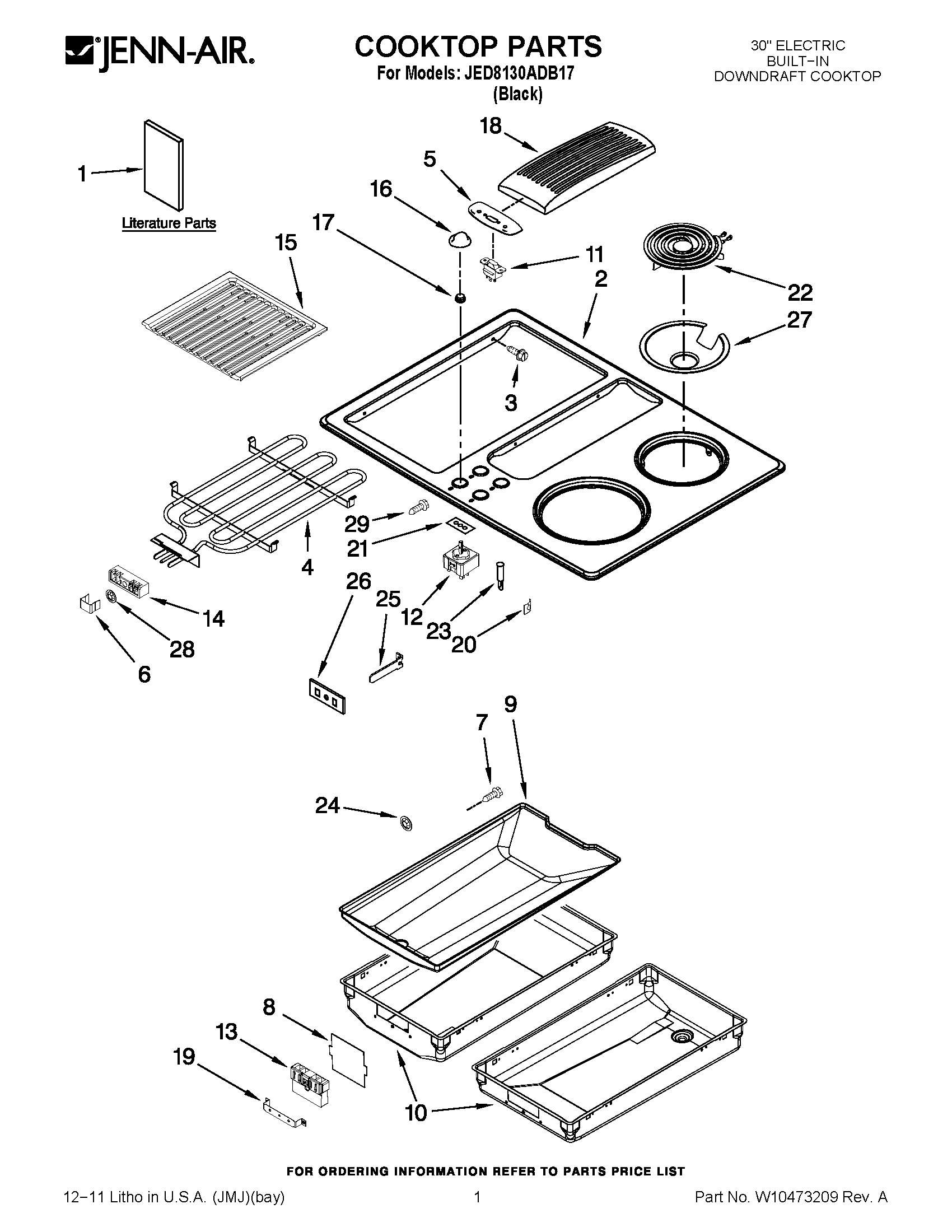

JED8130ADB17 01 – COOKTOP PARTS

Products

Position	Product
1	TIPS, SAFE COOKING (ENGLISH)
1	TIPS, SAFE COOKING (FRENCH)
1	MAY W10411781
1	MAY W10298939
1	MAY W10298937
1	CARD, FLOW TESTER
2	MAY 2002F169-09
3	SCREW
4	MAY W10310263
5	MAY W10298872
6	CLIP, SHUNT
7	MAY 7101P451-60
8	MAY 7003P130-60
9	MAY 4009F087-19
10	PAN, GRILL (LEFT)
11	SWITCH, FAN
11	RELAY, FAN
12	MAY W10391800
13	MAY 7408P047-60
14	MAY 7401P061-60
15	MAY 7518P118-60
16	MAY 7737P193-60
17	PALNUT
18	MAY 7772P046-60
19	BRACKET, GRILL
21	SEAL, GASKET INF. SW.
22	MAY W10345411
22	MAY W10345414
23	MAY W10354968
25	MAY 7405P131-60
26	MAY 7003P082-60
27	MAY 7725P068-60
27	MAY 7725P067-60
28	NUT, SPEED
29	SCREW
