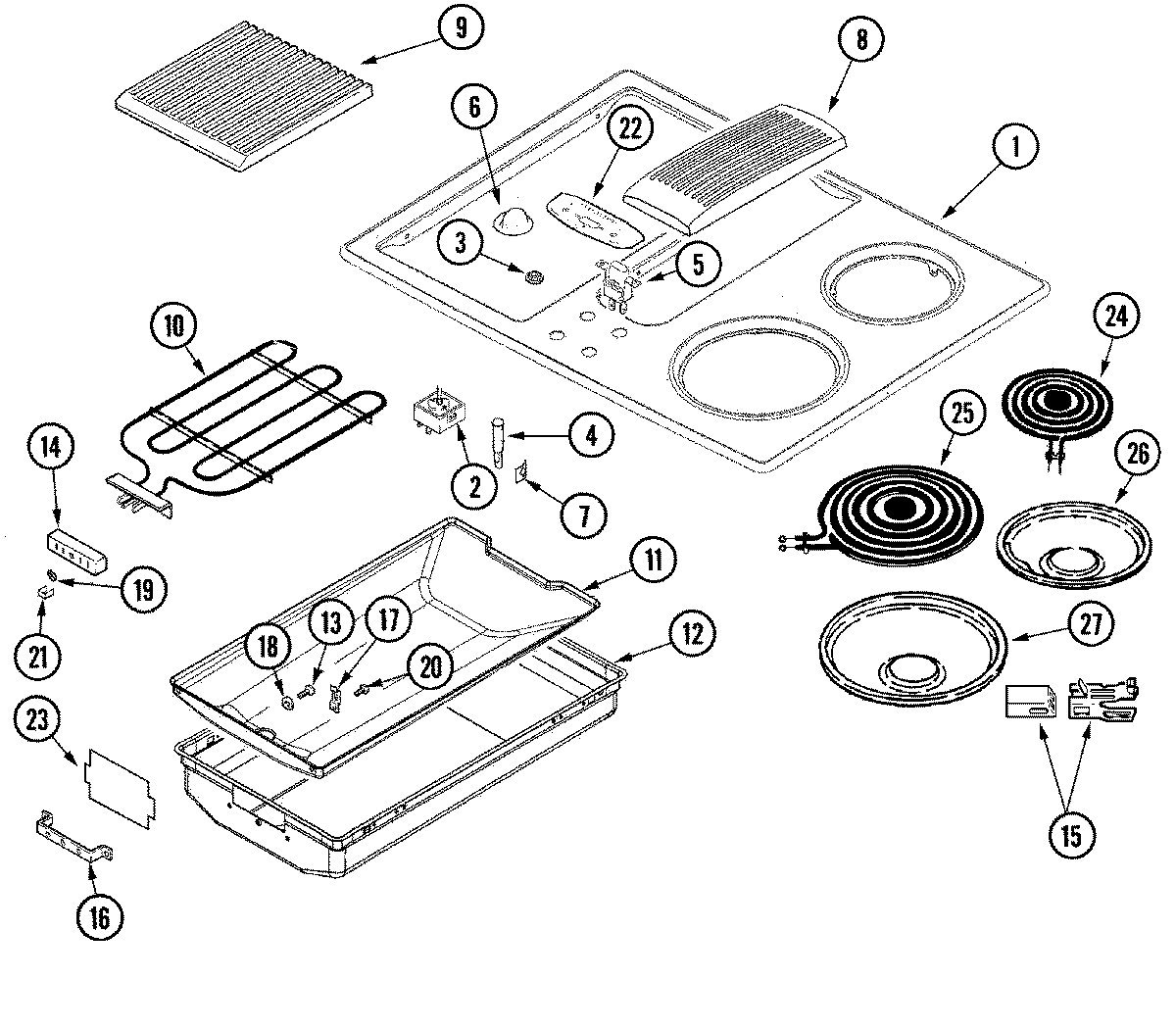

JED8130ADW 03 – TOP ASSEMBLY

JED8130ADW 03 – TOP ASSEMBLY

Written by

in

JED8130ADW 03 – TOP ASSEMBLY

Products

PositionProduct
1SCREW
1MAY 74005900
2MAY Y705255
2SCREW
2W11088181 Whirlpool Surface Element Switch
3MAY 71001561
4MAY 74005804
512001452 Whirlpool Relay Change
5MAY 71001563
6W11106384 Whirlpool Knob
7WP7112P152-60 Whirlpool Clip
8MAY 74005793
9MAY 74005795
9MAY 74006513
10WPW10310263 Whirlpool Grille Element
10Y708862 Whirlpool Speed Nut
10MAY Y703571
10MAY Y700449
11MAY 74005797
12MAY 74005799
13WP12990527 Whirlpool Microwave Screw
14WPY708730 Whirlpool Terminal Block
15WP74007474 Whirlpool Dishwasher Element Receptacle
16MAY 74005798
1774004835 Whirlpool Clip
17MAY Y702699
18MAY 74005796
19M0282009 Whirlpool Air Conditioner Nut
20WP489128 Whirlpool Refrigerator Screw
21MAY Y700450
22MAY 74005806
23MAY 74005866
24WPY04100165 Whirlpool Surface Element
24WP660532 Whirlpool Oven Surface Element
25WPY04100166 Whirlpool Oven 8" Surface Element
2500484791 Bosch Oven Heating Element
26715877 Whirlpool Electric Range 6" Chrome Drip Pan
27715878 Whirlpool Range 8" Chrome Drip Pan
28MAY 74005844
28MAY 74005841
28MAY 74005842
28MAY 74005843
29MAY 74005475
29MAY EC001-00
29MAY 16008409
30MAY 74005526
