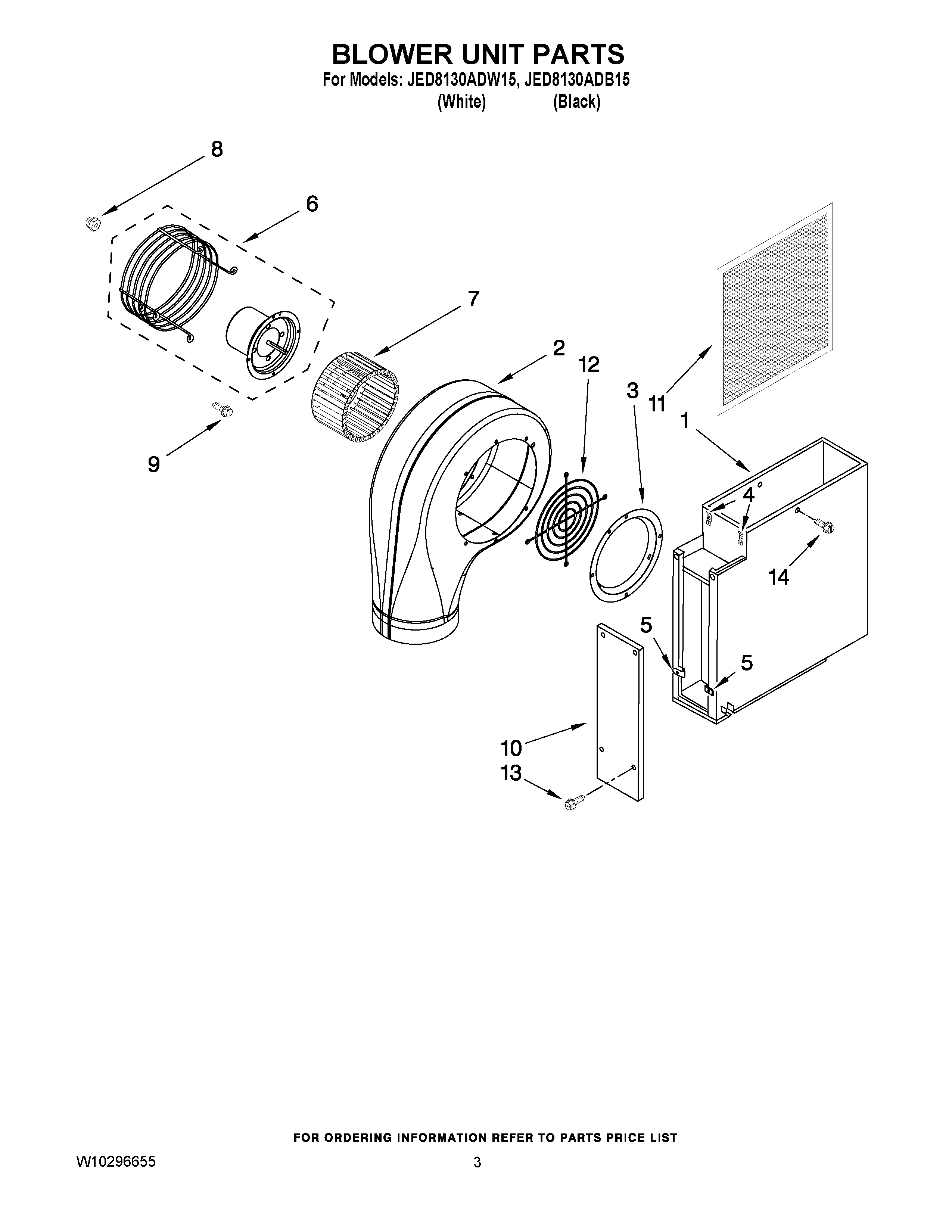

JED8130ADW15 02 – BLOWER UNIT PARTS – Aparts

JED8130ADW15 02 – BLOWER UNIT PARTS

Products

Position	Product
1	MAY 2801W023-80
2	MAY 8038P003-60
2	RING, RESTRICTOR
2	MAY 2822W001-80
3	RING, INLET
4	CLIP, GROUND
5	MAY 7104P007-60
6	MAY 7409P029-60
7	WHEEL, BLOWER
8	NUT, ACORN
9	SCREW
10	COVER (COVER, PLATE)
10	COVER (COVER, ELECTRIC)
11	MAY 8312P121-60
11	MAY 3804F188-50
12	WASHER
12	GUARD, BLOWER
13	SCREW, SUPPORT
14	MAY 7101P426- 60
