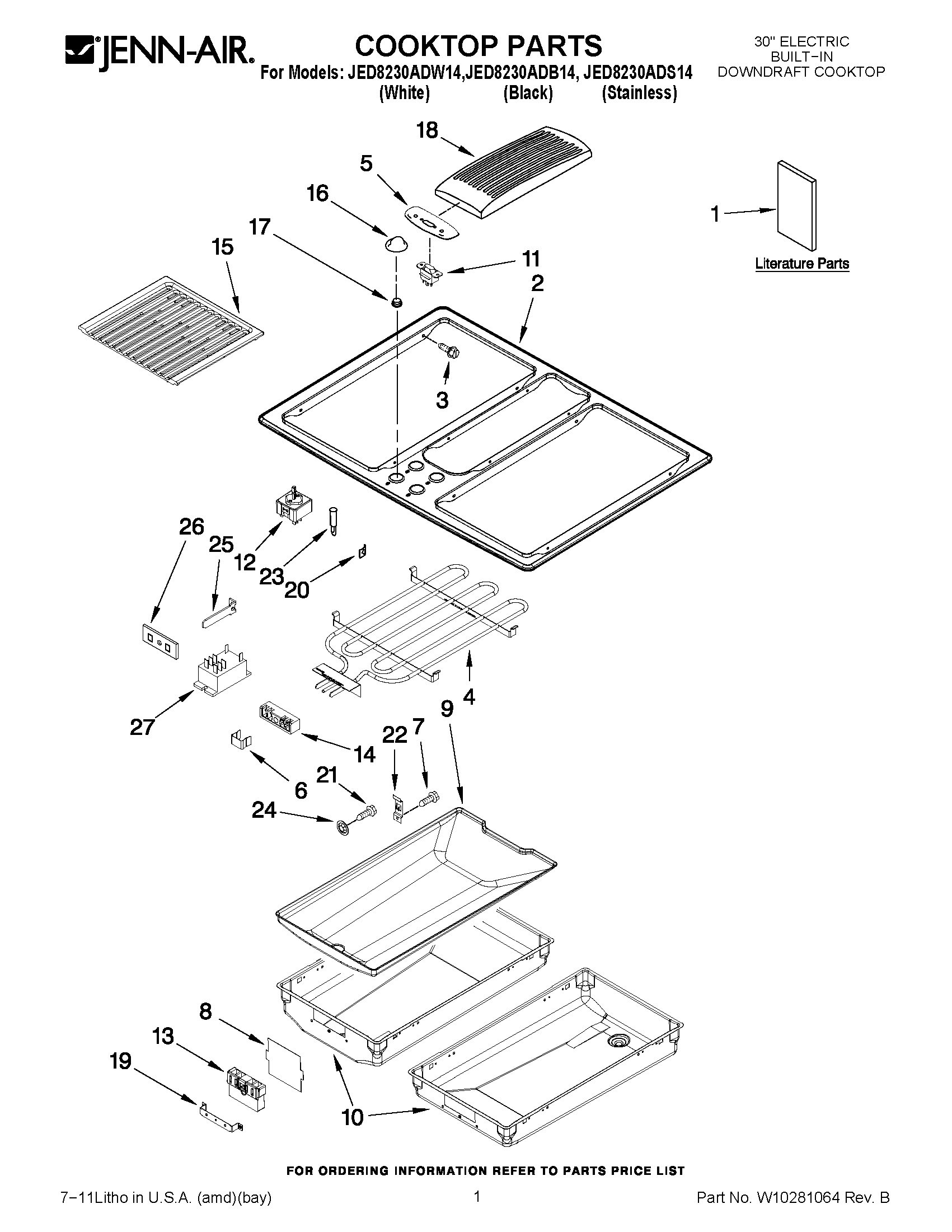

JED8230ADS14 01 – COOKTOP PARTS

JED8230ADS14 01 – COOKTOP PARTS

Written by

in

JED8230ADS14 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY 8101P421-60
1MAY 8111P529-60
1INSTRUCTIONS, DUCTING
1CARD, FLOW TESTER
1MAY 8104P731-60
2MAY 2002F152-81
2MAY 2002F209-50
2MAY 2002F152-09
3SCREW
4MAY W10310263
5MAY W10298871
5MAY W10298872
6CLIP, SHUNT
7MAY 7101P451-60
8MAY 7003P130-60
9MAY 4009F087-19
10MAY 3401F051-19
10PAN, GRILL (LEFT)
11MAY W10331929
11SWITCH, FAN
12MAY 7403P405-60
13MAY 7408P047-60
14MAY 7401P061-60
15MAY 7518P118-60
16MAY 7737P193-60
16MAY 7737P194-60
17PALNUT
18MAY 7772P046-60
18MAY 7772P047-60
19BRKT, GRILL PAN
20CLIP,IND.LIGHT(2)
21MAY 7101P403-60
22CLIP, GROUND
23IND., LIGHT(2) (BLACK)
23IND., LIGHT(2) (WHITE)
24NUT, SPEED
25MAY 7405P131-60
26MAY 7003P082-60
27RELAY, FAN
