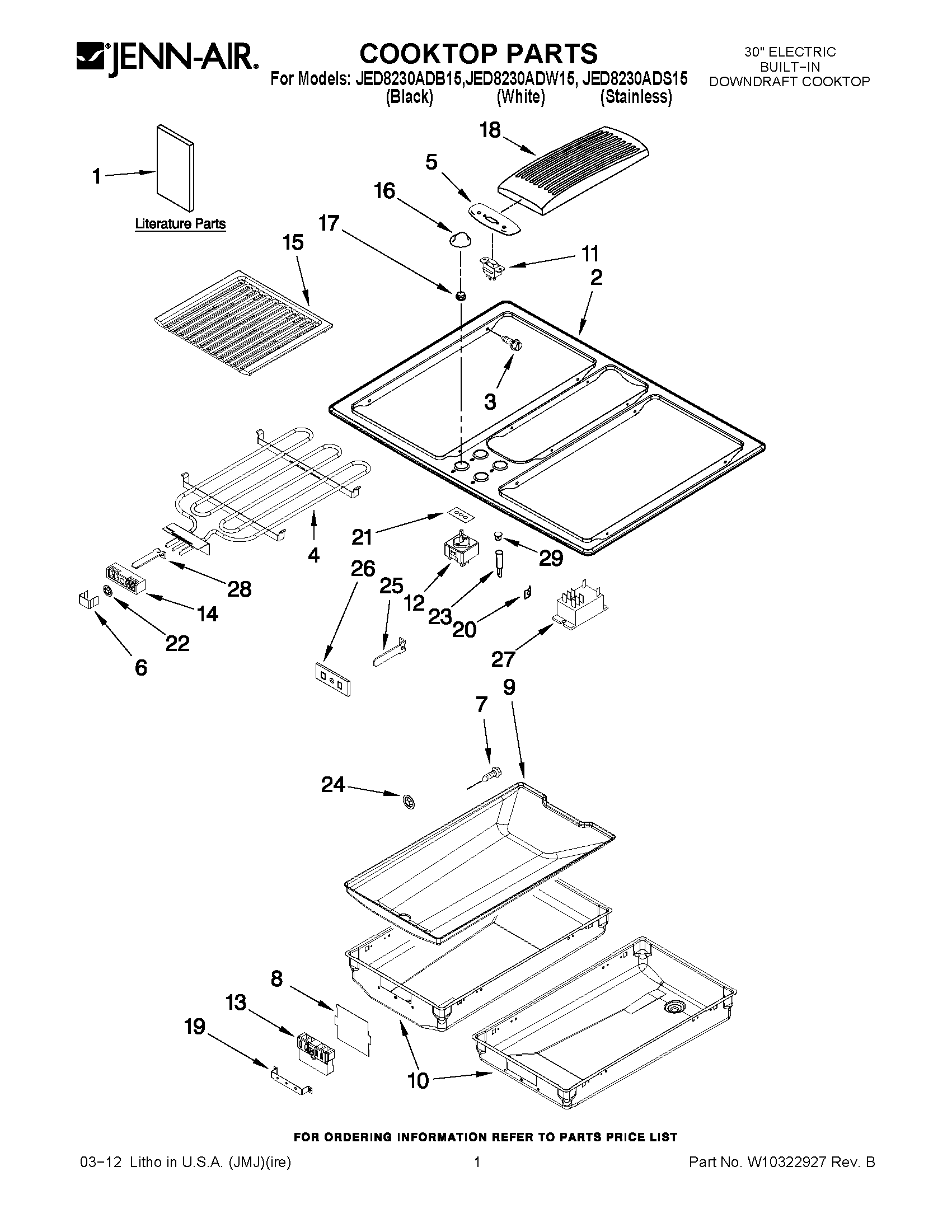

JED8230ADW15 01 – COOKTOP PARTSadmin2025-04-26T09:29:52+00:00JED8230ADW15 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 1 | MAY 8104P731-60 |
| 1 | MAY 8111P529-60 |
| 1 | MAY 8101P421-60 |
| 1 | CARD, FLOW TESTER |
| 1 | INSTRUCTIONS, DUCTING |
| 2 | MAY 2002F209-50 |
| 2 | MAY 2002F152-81 |
| 2 | MAY 2002F152-09 |
| 3 | SCREW |
| 4 | MAY 7406P297-60 |
| 5 | MAY 7744P389-60 |
| 5 | MAY 7744P388-60 |
| 6 | CLIP, SHUNT |
| 7 | MAY 7101P451-60 |
| 8 | MAY 7003P130-60 |
| 9 | MAY 4009F087-19 |
| 10 | PAN, GRILL (LEFT) |
| 11 | MAY 7403P429-60 |
| 11 | MAY 7403P428-60 |
| 12 | MAY 7403P405-60 |
| 13 | MAY 7408P047-60 |
| 14 | MAY 7401P061-60 |
| 15 | MAY 7518P118-60 |
| 16 | MAY 7737P193-60 |
| 16 | MAY 7737P194-60 |
| 17 | PALNUT |
| 18 | MAY 7772P047-60 |
| 18 | MAY 7772P046-60 |
| 19 | BRKT, GRILL PAN |
| 20 | CLIP,IND.LIGHT(2) |
| 21 | SEAL, GASKET INF. SW. |
| 23 | IND., LIGHT(2) (BLACK) |
| 23 | IND., LIGHT(2) (WHITE) |
| 24 | NUT, SPEED |
| 26 | MAY 7003P082-60 |
| 27 | RELAY, FAN |
| 28 | MAY 7405P131-60 |
| 29 | W11690131 Whirlpool Light Lens |
