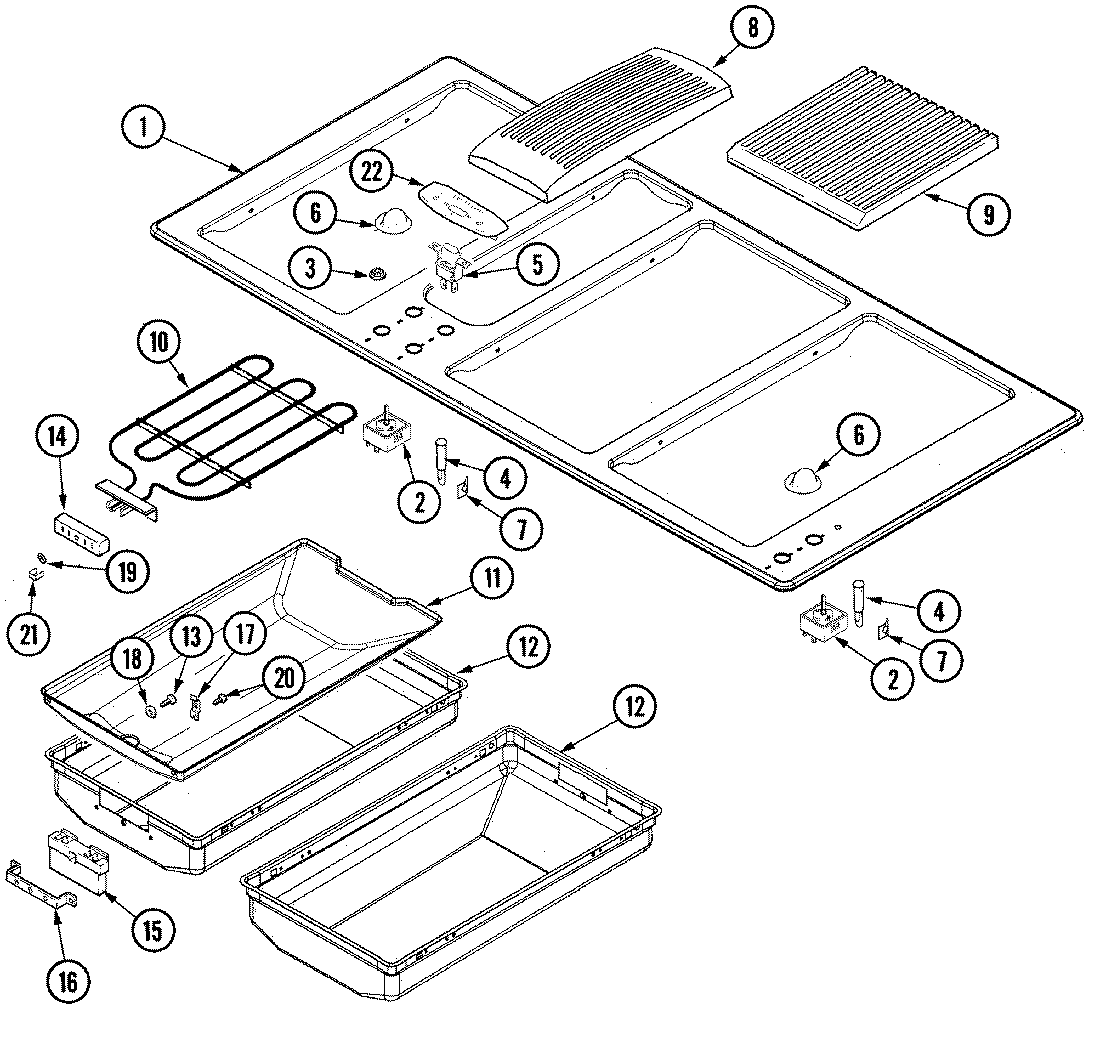

JED8345ADB 03 – TOP ASSEMBLY

Products

Position	Product
1	SCREW
1	MAY 74005803
2	W11088181 Whirlpool Surface Element Switch
2	SCREW
2	MAY Y705255
3	MAY 71001561
4	74005790 Whirlpool Light Indicator Red
5	12001452 Whirlpool Relay Change
5	MAY 71001564
6	WP7737P193-60 Whirlpool Knob
7	WP7112P152-60 Whirlpool Clip
8	MAY 74005794
9	MAY 74005795
9	MAY 74006513
10	WPW10310263 Whirlpool Grille Element
10	MAY Y703571
11	MAY 74005797
12	MAY 74006299
12	MAY 74005799
12	MAY 74005800
13	WP12990527 Whirlpool Microwave Screw
14	WPY708730 Whirlpool Terminal Block
15	WPY702434 Whirlpool Receptacle
15	MAY 74005866
16	MAY 74005798
17	MAY Y702699
18	MAY 74005796
19	M0282009 Whirlpool Air Conditioner Nut
20	WP489128 Whirlpool Refrigerator Screw
21	MAY Y700450
22	W10341820 Whirlpool Fan Switch
23	MAY 74005851
23	MAY 74005850
23	MAY 74005849
23	MAY 74005847
23	MAY 74005845
23	MAY 74005852
23	MAY 74005843
23	MAY 74005842
23	MAY 74005841
23	MAY 74005848
23	WP5708M007-60 Whirlpool Wire Harness
23	MAY 74005844
23	MAY 74005853
24	MAY 74005475
24	MAY EC001-00
24	MAY 74005526
24	MAY 16008409
