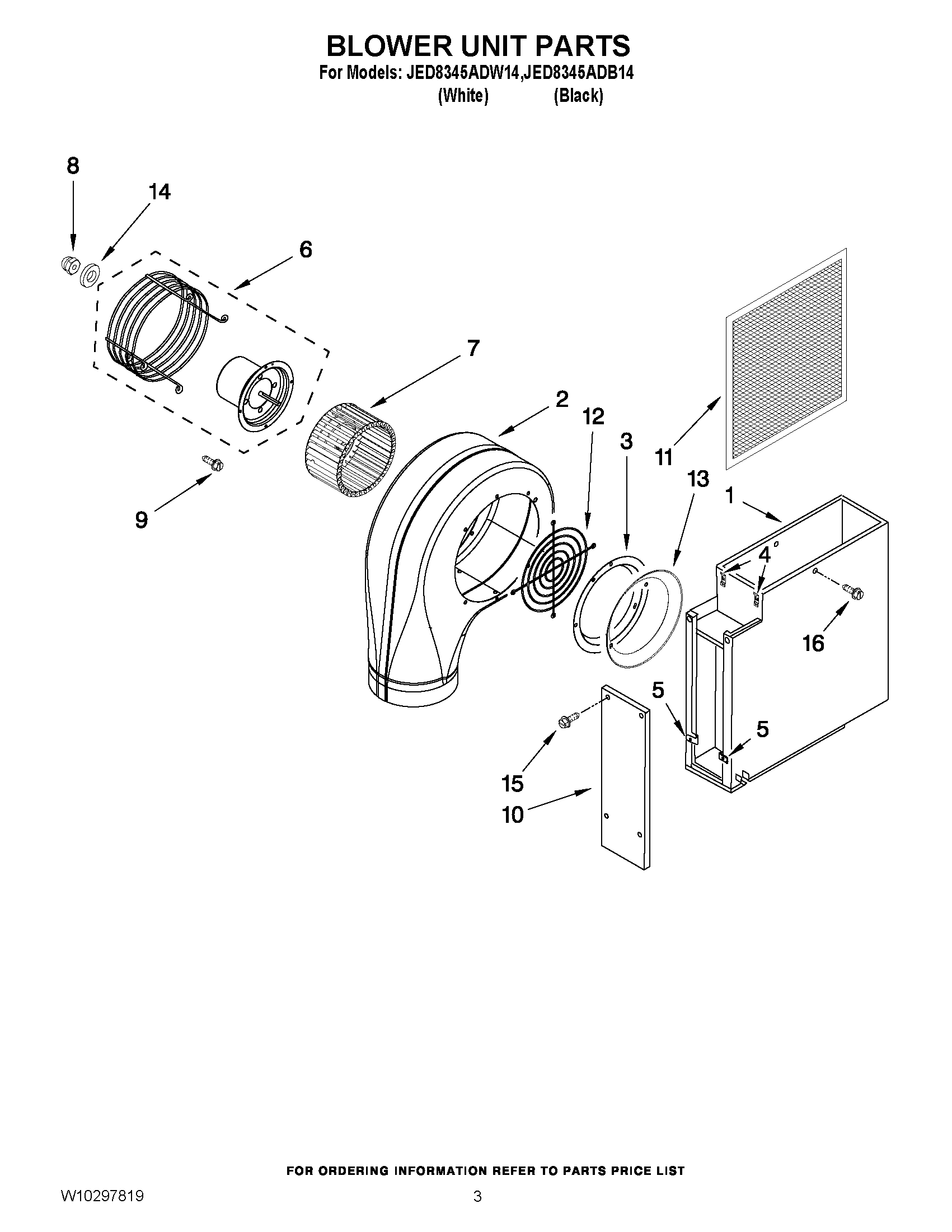

JED8345ADB14 02 – BLOWER UNIT PARTS – Aparts

JED8345ADB14 02 – BLOWER UNIT PARTS

Products

Position	Product
1	MAY 2801W023-80
2	MAY 2822W001-80
3	RING, INLET
4	CLIP
5	MAY 7104P007-60
6	MAY 7409P029-60
7	WHEEL, BLOWER
8	NUT, LOCK
9	SCREW
10	COVER (COVER, ELECTRIC)
10	COVER (COVER, PLATE)
11	MAY 8312P121-60
12	GUARD, BLOWER
13	RING, RESTRICTOR
14	WASHER
15	SCREW, SUPPORT
16	Screw, Ground
