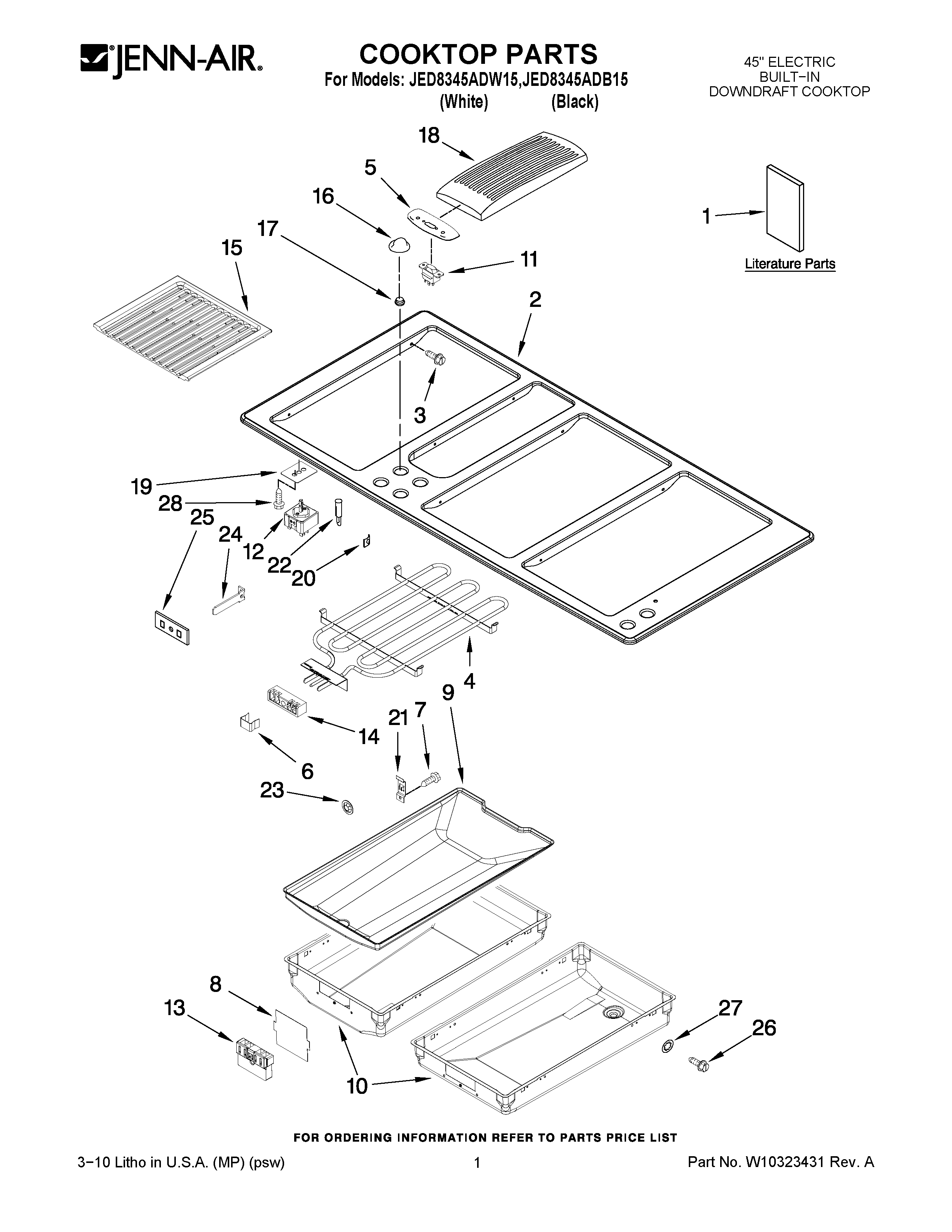

JED8345ADB15 01 – COOKTOP PARTS
Written by
in
JED8345ADB15 01 – COOKTOP PARTS
Products
Position
Product
1
TIPS, SAFE COOKING (ENGLISH)
1
TIPS, SAFE COOKING (FRENCH)
1
MAY 8101P421-60
1
MAY 8104P714-60
1
INSTRUCTIONS, DUCTING
1
MAY 8111P529-60
1
CARD, FLOW TESTER
2
MAY 2002F164-09
2
MAY 2002F164-81
3
SCREW
4
MAY 7406P297-60
5
MAY 7744P388-60
5
MAY 7744P389-60
6
CLIP, SHUNT
7
MAY 7101P451-60
8
MAY 7003P130-60
9
MAY 4009F087-19
10
MAY 3401F051-19
10
PAN, GRILL (RIGHT)
10
PAN, GRILL (LEFT)
11
MAY 7403P428-60
11
MAY 7403P429-60
12
MAY 7403P405-60
13
MAY 7408P047-60
14
MAY 7401P061-60
15
MAY 7518P118-60
16
MAY 7737P193-60
16
MAY 7737P194-60
17
PALNUT
18
MAY 7772P047-60
18
MAY 7772P046-60
19
SEAL, GASKET INF. SW.
20
CLIP,IND.LIGHT(2)
21
CLIP, GROUND
22
IND., LIGHT(2) (BLACK)
22
IND., LIGHT(2) (WHITE)
23
NUT, SPEED
24
MAY 7405P131-60
25
MAY 7003P082-60
26
MAY 7101P426- 60
27
MAY 7109P057-60
28
SCREW
←
