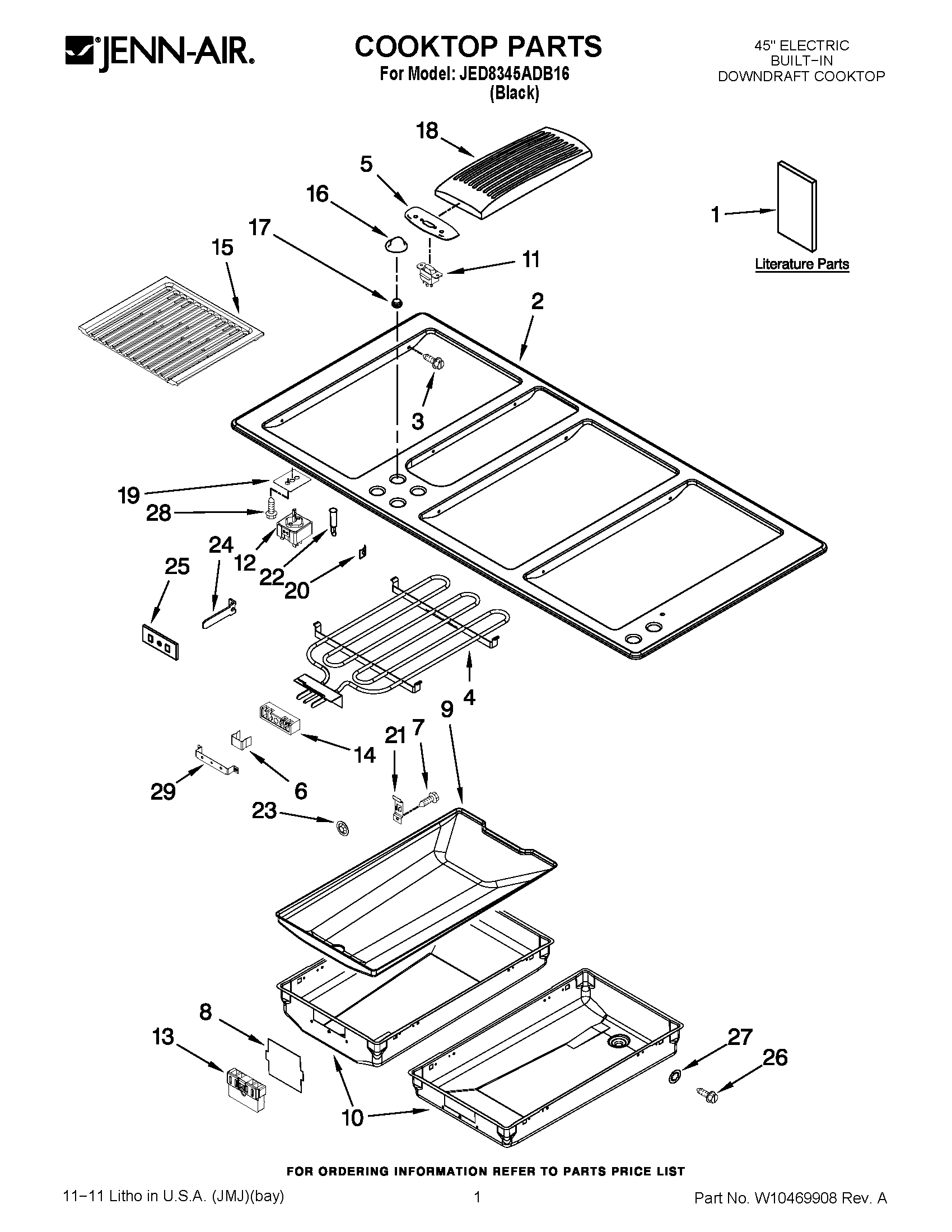

JED8345ADB16 01 – COOKTOP PARTSadmin2025-04-26T09:26:54+00:00JED8345ADB16 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 1 | MAY W10411778 |
| 1 | MAY W10298938 |
| 1 | MAY W10298937 |
| 1 | CARD, FLOW TESTER |
| 2 | MAY 2002F164-09 |
| 3 | SCREW |
| 4 | MAY W10310263 |
| 5 | MAY W10298872 |
| 6 | CLIP, SHUNT |
| 7 | MAY 7101P451-60 |
| 8 | MAY 7003P130-60 |
| 9 | MAY 4009F087-19 |
| 10 | MAY 3401F051-19 |
| 10 | PAN, GRILL (RIGHT) |
| 10 | PAN, GRILL (LEFT) |
| 11 | SWITCH, FAN |
| 12 | MAY W10391800 |
| 13 | MAY 7408P047-60 |
| 14 | MAY 7401P061-60 |
| 15 | MAY 7518P118-60 |
| 16 | MAY 7737P193-60 |
| 17 | PALNUT |
| 18 | MAY 7772P046-60 |
| 19 | SEAL, GASKET INF. SW. |
| 20 | CLIP,IND.LIGHT(2) |
| 21 | CLIP, GROUND |
| 22 | IND., LIGHT(2) (BLACK) |
| 23 | NUT, SPEED |
| 24 | MAY 7405P131-60 |
| 25 | MAY 7003P082-60 |
| 26 | MAY 7101P426- 60 |
| 27 | WASHER |
| 28 | SCREW |
| 29 | BRKT, GRILL PAN |
