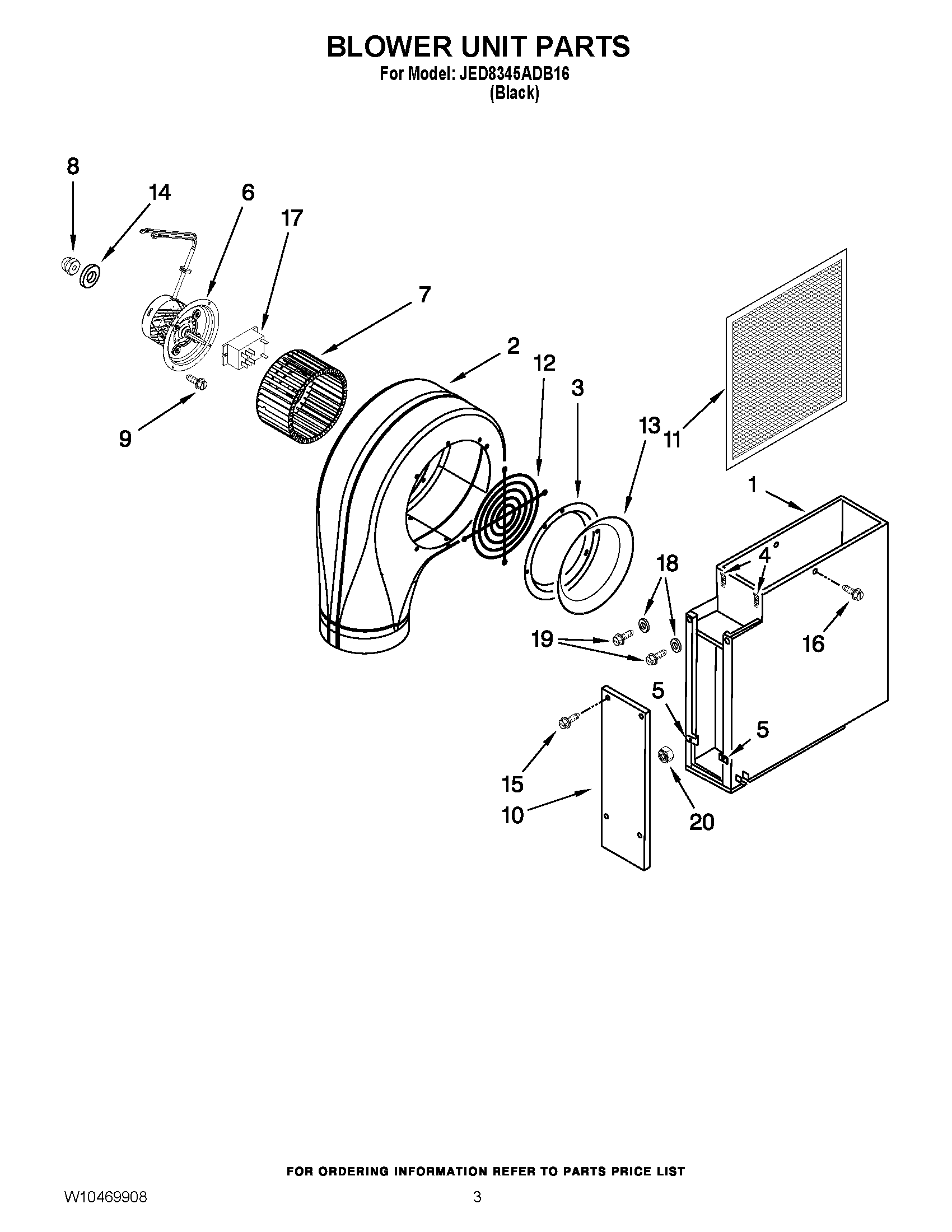

JED8345ADB16 02 – BLOWER UNIT PARTSadmin2025-04-26T09:26:27+00:00JED8345ADB16 02 – BLOWER UNIT PARTS
Products
| Position | Product |
|---|
| 1 | MAY 2801W023-80 |
| 2 | MAY 2822W001-80 |
| 3 | RING, INLET |
| 4 | CLIP |
| 5 | MAY 7104P007-60 |
| 6 | MAY W10241953 |
| 7 | WHEEL, BLOWER |
| 8 | NUT, ACORN |
| 9 | SCREW |
| 10 | COVER (COVER, PLATE) |
| 10 | COVER (COVER, ELECTRIC) |
| 11 | MAY 8312P121-60 |
| 12 | GUARD, BLOWER |
| 13 | RING, RESTRICTOR |
| 14 | WASHER |
| 15 | SCREW, SUPPORT |
| 16 | Screw, Ground |
| 17 | RELAY, FAN |
| 18 | MAY 7109P036-60 |
| 19 | SCREW |
| 20 | NUT, LOCK |
