JED8430BDF 02 – BODY

JED8430BDF 02 – BODY

Written by

in

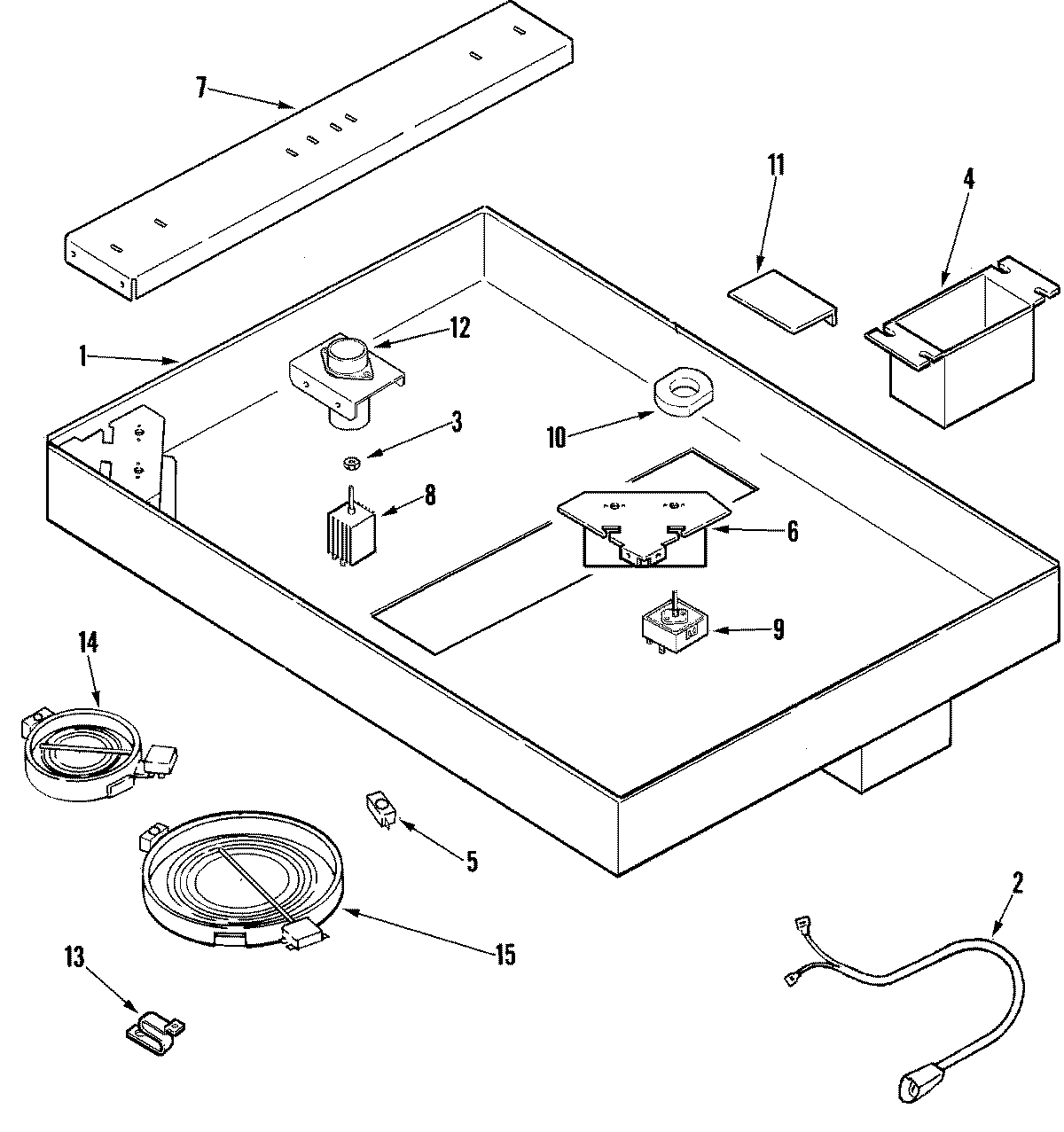

JED8430BDF 02 – BODY

Products

PositionProduct
1MAY 74007640
2MAY 71003476
3MAY Y312706
4MAY Y706174
4MAY Y706173
5MAY 71003486
6MAY 74004940
6WP90767 Whirlpool Screw
7MAY 71003467
8WP74009254 Whirlpool Fan Switch
9SWITCH-INF
9W11088181 Whirlpool Surface Element Switch
9WP74008248 Whirlpool Infinite Switch
10MAY Y706061
10MAY Y04100274
11MAY 71003470
12WP74005965 Whirlpool Knob Sleeve
13SPRING, ELEMENT SUPPORT
13SCREW
14MAY 74007125
14MAY 74007124
14WP74011191 Whirlpool Element
14WP74011190 Whirlpool Element 6
15W10823703 Whirlpool Surface Element
15WPW10162365 Whirlpool Surface Element
15MAY 74007251
15MAY 74011192
