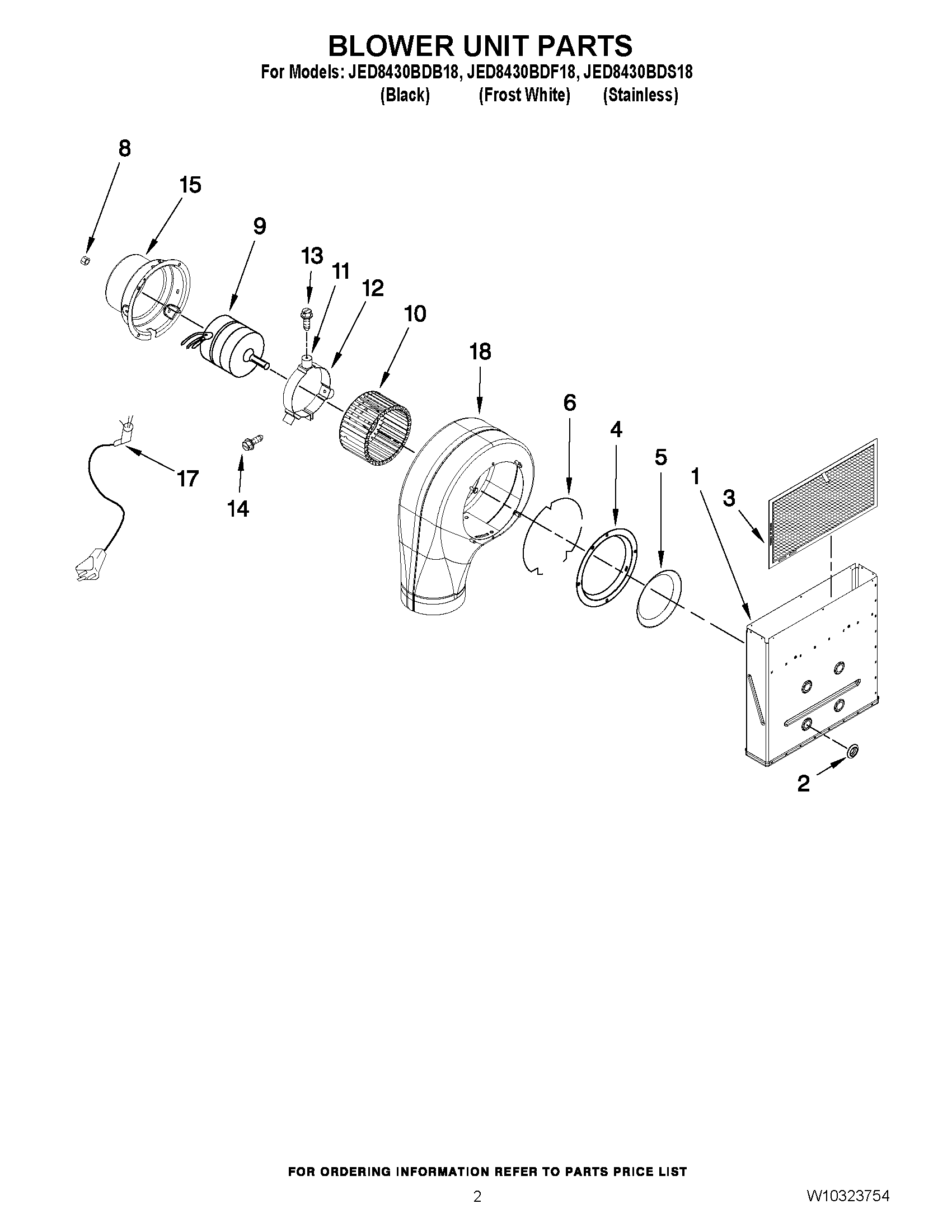

JED8430BDF18 02 – BLOWER UNIT PARTS – Aparts

JED8430BDF18 02 – BLOWER UNIT PARTS

Products

Position	Product
1	MAY 2801W028-80
2	PLUG, HOLE
3	FILTER
4	RING, INLET
5	RING, RESTRICTOR
6	MAY 8038P003-60
8	WP7103P027-60 Whirlpool Nut
9	MAY 7409P011-60
10	WHEEL, BLOWER
11	MAY 8038P002-60
12	BAND, MOTOR
13	SCREW
14	WP4159193 Whirlpool Screw
15	MAY 4005F513-80
17	MAY 7402P096-60
18	MAY 2822W001-80
