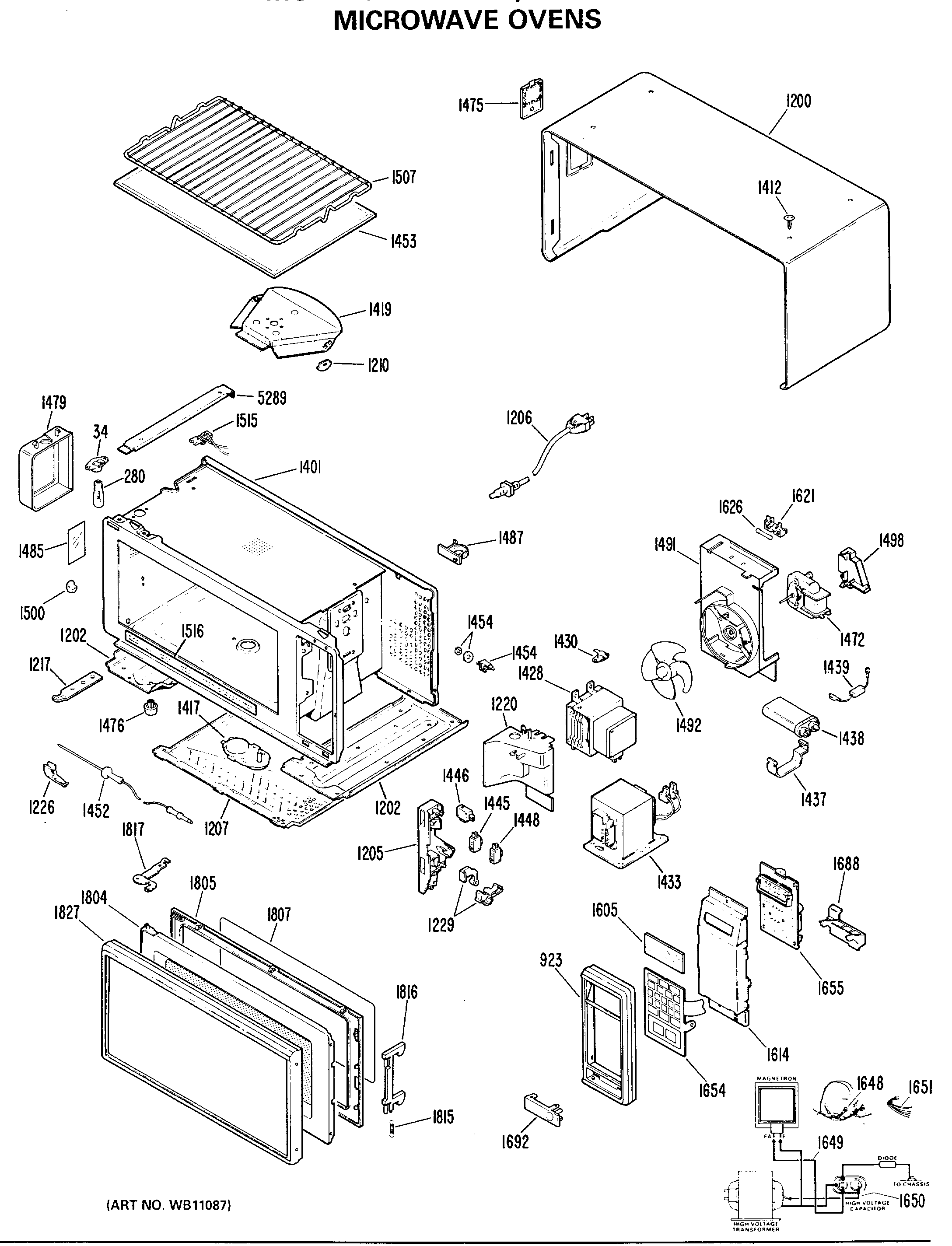

JEM31H01 MICROWAVE OVENS

JEM31H01 MICROWAVE OVENS

Written by

in

JEM31H01 MICROWAVE OVENS

Products

Position	Product
34	RECEPTACLE-OVEN LAMP
280	LAMP-OVEN
923	TRIM-CONTROL PANEL
923	GEN WB07X1937
1200	GEN WB56X1916
1202	GEN WB56X1914
1202	GEN WB56X1918
1205	GEN WB2X10090
1206	GEN WB18X0317
1207	GEN WB02X9197
1210	ANTENNA SUPPORT
1217	GEN WB10X5194
1220	GEN WB02X9200
1226	HOLDER PROBE-M/W
1229	HOOK SPACER-LOWER
1229	HOOK SPACER-UPPER
1401	OVEN ASSEMBLY
1412	PLUG BUTTON
1417	MOTOR-STIRRER
1419	GEN WB02X9202
1422	GEN WB26X0101
1428	GEN WB27X0337
1430	GEN WB27X5452
1433	GEN WB27X5450
1437	GEN WB02X9204
1438	GEN WB27X5451
1439	GEN WB27X0424
1445	GEN WB24X0421
1446	GEN WB24X0352
1448	GEN WB24X0420
1452	PROBE-M/W
1453	GEN WB48X0211
1454	SENSOR JACK
1454	SPACER-M/W
1454	NUT-SENSOR JACK
1475	LAMP COVER
1476	GEN WB02X7790
1479	COVER-OVEN LAMP
1485	REFLECTOR-OVEN LAMP
1487	GEN WB02X4691
1491	GEN WB02X9201
1492	GEN WB02X4644
1498	GEN WB02X7809
1500	SUPPORT-OVEN RACK
1507	GEN WB48X0212
1515	SENSOR-TEMPERATURE
1516	MENU LABEL
1605	GEN WB36X5636
1614	GEN WB02X9205
1621	FUSE HOLDER
1626	WB27X7 GE Oven Fuse
1648	GEN WB18X0318
1649	GEN WB18X5109
1650	GEN WB18X0349
1651	GEN WB18X0319
1654	KEY PANEL ASSEMBLY
1655	GEN WB27X0426
1688	GEN WB09X0220
1688	GEN WB15X0267
1804	GEN WB55X0674
1805	GEN WB55X0676
1807	GEN WB55X0708
1815	SPRING-DOOR KEY
1816	GEN WB2X10097
1817	HINGE-UPPER
1827	OUTER DOOR FRAME W/GLASS
5288	GEN WB02X9203
5289	GEN WB02X9199
8888	GEN WB02X9193
9999	GEN 49-4917
32767	GEN 49-4930
32767	TOUCH UP-CAVITY (SPRAY)
