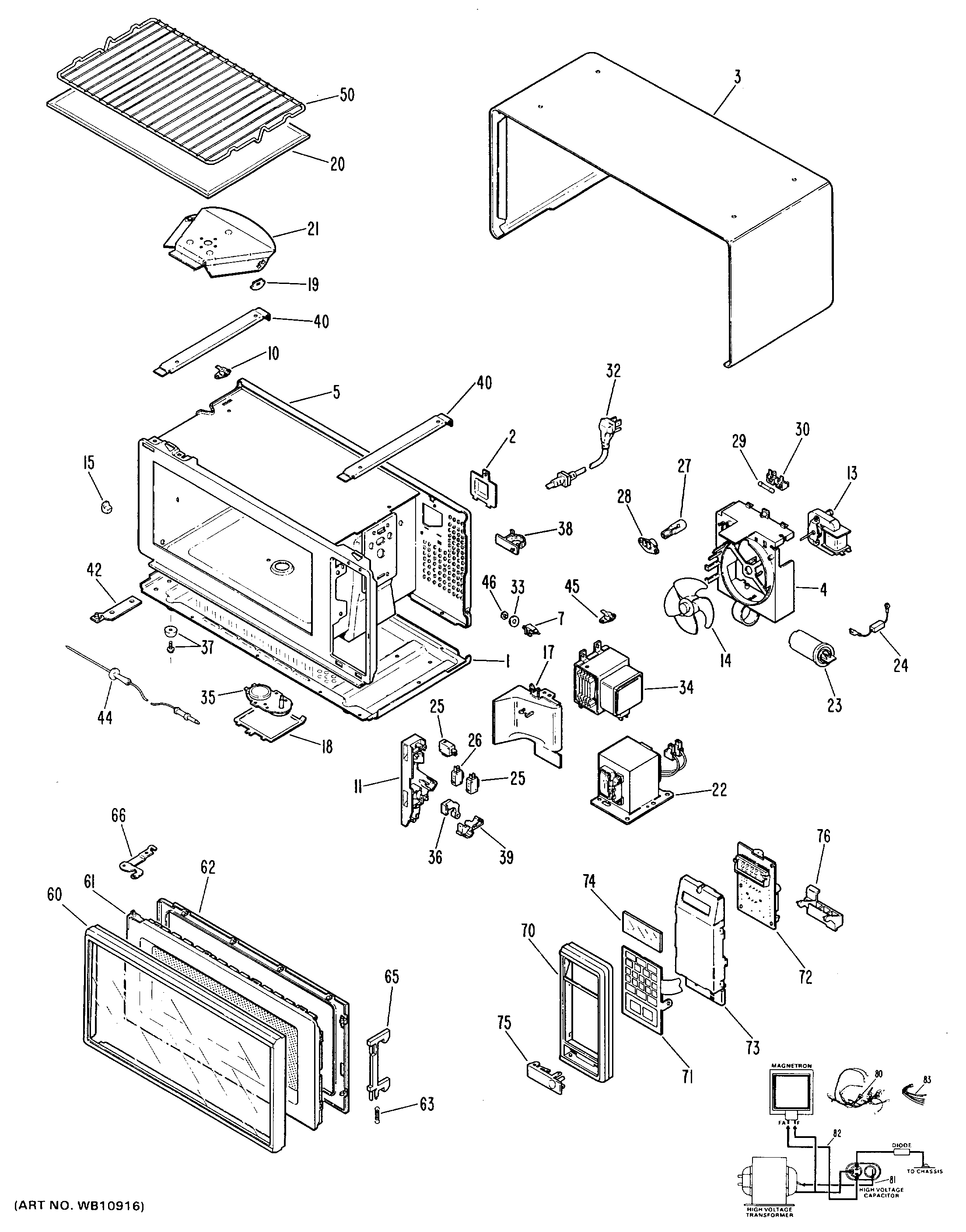

JEM32G02 0 – Aparts

JEM32G02 0

Products

Position	Product
1	GEN WB49X0609
2	LAMP COVER
3	GEN WB56X1863
3	GEN WB2X10103
4	ORIIFICE-FAN
5	MENU LABEL
5	OVEN ASSEMBLY
7	SENSOR JACK
10	SENSOR-TEMPERATURE
11	GEN WB2X10090
11	GEN WB02X4655
13	FAN MOTOR
14	GEN WB02X4644
15	SUPPORT-OVEN RACK
17	GEN WB02X7784
18	GEN WB2X10102
19	ANTENNA SUPPORT
20	GEN WB48X0201
21	GEN WB2X10091
22	GEN WB27X0385
23	BRACKET-CAPACITOR
23	GEN WB27X0386
24	DIODE
25	GEN WB24X0352
26	GEN WB24X0353
27	LAMP-OVEN-M/W
27	GEN WB02X4654
28	GEN WB08X5092
29	WB27X7 GE Oven Fuse
30	FUSE HOLDER
32	GEN WB18X0277
34	GEN WB27X0337
35	MOTOR-STIRRER
36	GEN WB2X10093
37	GEN WB02X7790
38	GEN WB02X4691
39	HOOK SPACER
40	GEN WB2X10095
42	HINGE-LOWER
43	SPACER-M/W
44	PROBE-M/W
44	CUTOUT-THERMAL
46	NUT-SENSOR JACK
50	GEN WB48X0200
60	GEN WB55X0649
61	GEN WB2X10104
61	GEN WB55X0651
62	GEN WB55X0652
63	GEN WB09X232
65	GEN WB2X10097
66	HINGE-UPPPER
70	ESCUTCHEON
70	GEN WB02X4662
71	GEN WB27X0390
72	GEN WB27X0391
73	GEN WB2X10101
74	GEN WB36X0739
75	GEN WB09X0220
76	GEN WB15X0258
80	GEN WB18X0274
81	GEN WB18X5101
82	GEN WB18X5102
83	GEN WB18X0276
9999	GEN 49-4860
9999	GEN 31-0661
9999	GEN 31-0662
9999	GEN 49-4854
32767	GEN WB2X10099
