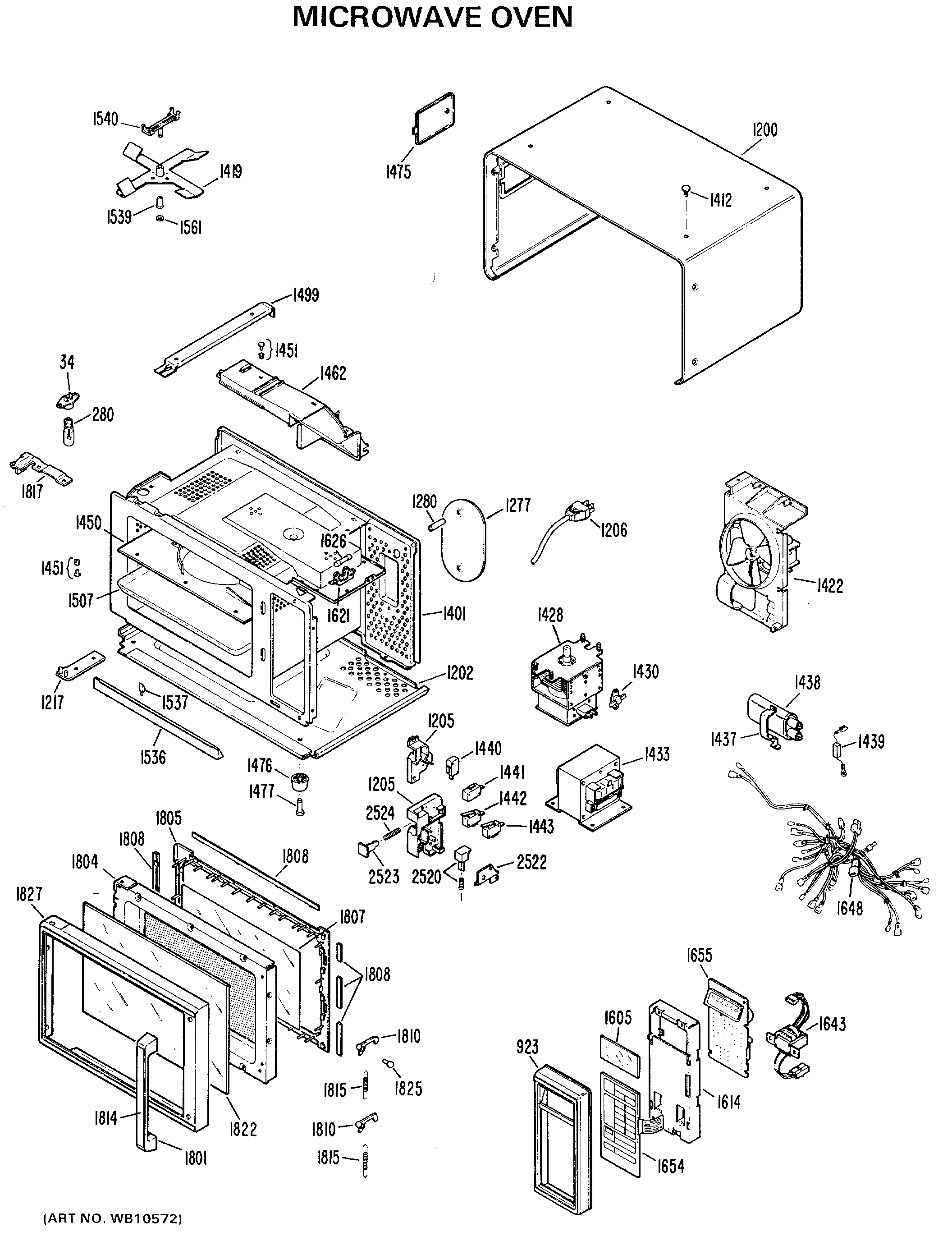

JEM616001 MICROWAVE OVEN

Products

Position	Product
34	GEN WB08X0256
280	GEN WB02X4611
923	GEN WB02X4700
1200	GEN WB56X1775
1202	BASE PLATE
1205	LATCH BODY-LOWER
1205	LATCH BODY-UPPER
1206	CORD-POWER SUPPLY
1217	HINGE-LOWER
1227	GEN WB02X4683
1280	GEN WB02X4682
1401	OVEN ASSEMBLY
1412	PLUG BUTTON
1419	BLADE-STIRRER
1422	FAN MOTOR ASM
1428	GEN WB27X0348
1430	GEN WB27X0231
1433	TRANSFORMER-HV
1437	GEN WB02X4677
1438	GEN WB27X0331
1439	WB27X1160 GE Microwave High Voltage Diode
1440	WB24X829 GE Oven Microwave Secondary Micro Switch
1441	SWITCH-MONITOR
1443	SWITCH-SECONDARY/DOOR
1450	COVER-STIRRER
1451	GEN WB02X7566
1462	COVER-AIR
1475	GEN WB56X1752
1476	GEN WB02X7374
1477	PIN-FOOT
1499	GEN WB02X4693
1499	BRACKET-LIGHT SHIELD
1507	TRAY-GLASS
1536	STOP-COOK TRAY
1537	CLIP-COOK TRAY STOP
1539	GEN WB02X4688
1540	GEN WB02X4882
1561	GEN WB01X0651
1605	GEN WB36X0726
1614	GEN WB02X4701
1621	FUSE HOLDER
1626	WB27X7 GE Oven Fuse
1643	GEN WB27X0353
1648	GEN WB18X0251
1654	GEN WB27X0351
1655	SMART BOARD AND DISPLAY
1668	KNOB-TIMER
1801	GEN WB15X0227
1804	GEN WB55X0593
1805	FRAME-DOOR-INNER
1807	GEN WB02X4698
1808	RUBBER-FERRITE-RH BOTTOM
1808	RUBBER-FERRITE-LH SIDE
1808	RUBBER-FERRITE-RH TOP
1808	RUBBER-FERRITE-TOP/BOT
1808	RUBBER-FERRITE-RH CENTER
1810	KEY-LOWER
1810	KEY-UPPER
1814	GEN WB15X0226
1815	SPRING-KEY-LOWER
1815	SPRING-KEY-UPPER
1817	GEN WB10X0232
1822	GLASS-DOOR-OUTER
1825	PIN-HANDLE KEY
1827	GEN WB55X0591
2520	SPRING-SLIDER
2521	SLIDE-LATCH
2522	COVER-SLIDE
2523	GEN WB02X4681
2524	SPRING-SLIDER
32767	GEN WB02X4726
32767	GEN 49-4753
32767	TOUCH UP-CAVITY (SPRAY)
32767	INSTALLATION INSTRUCTION
32767	GEN 49-4758
