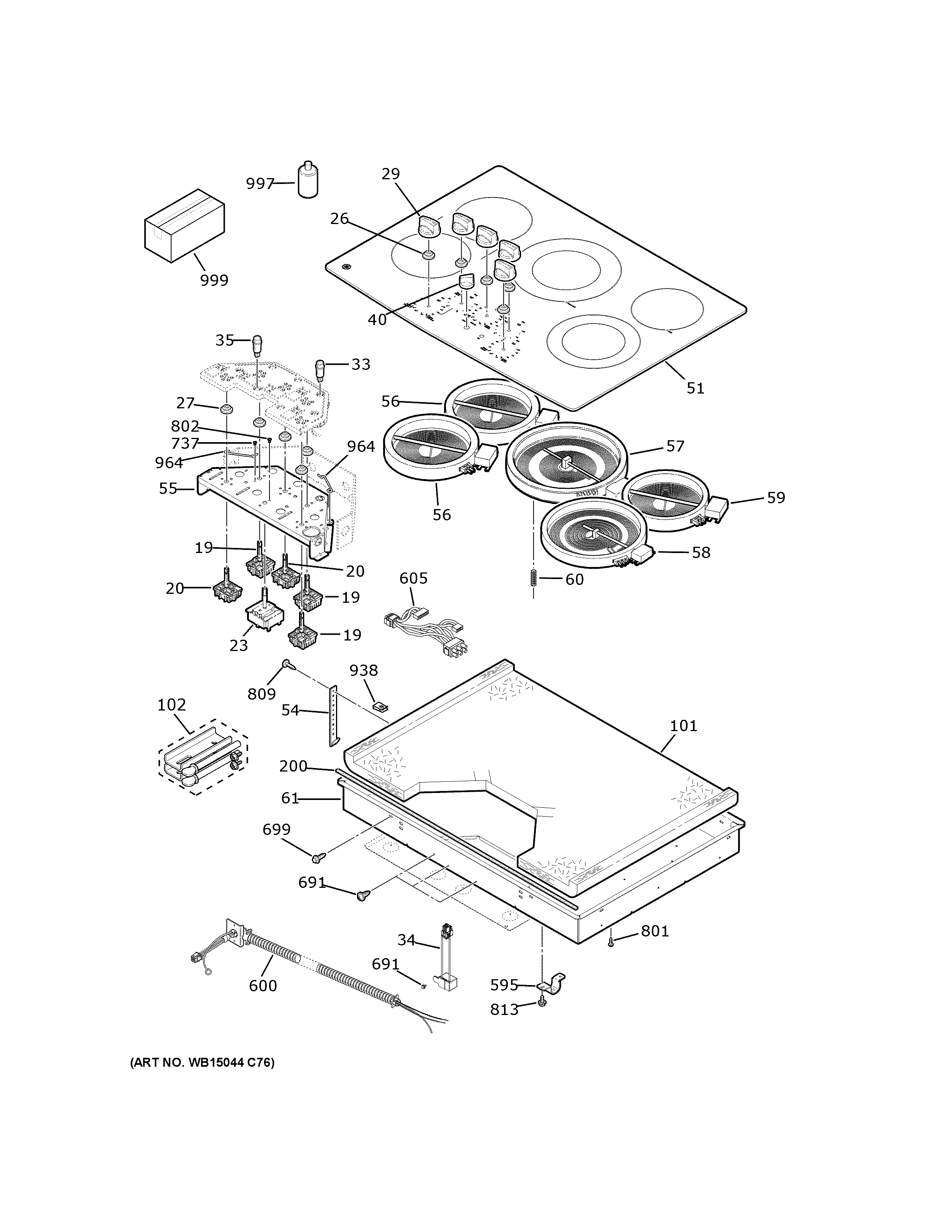

JEP5030DT1BB CONTROL PANEL & COOKTOP

Products

Position	Product
19	INFINITE SWITCH CONTROL
20	INFINITE SWITCH AND SEAL KIT
23	WB24X24106 GE Oven Lockout Switch
27	INFINITE CONTROL SEAL
29	KNOB – BLACK
33	WB25T10012 GE Oven Indicator Light
34	WB18X24105 GE Oven Buzzer
35	WB25X24131 GE Oven Lockout Indicator Light
40	WB03X29623 GE Selector Knob
51	WB62X44569 GE Maintop Glass and Frame
54	WB2K5328 GE Oven Hold Down Bracket
55	WB02X24187 GE Inf Switch Bracket
56	WB30T10129 GE Oven Radiant Element 6 In
57	WB30X24111 GE Oven Dual Radiant Element
58	WB30X24134 GE Oven Halogen Element (Dual)
59	WB30T10145 GE Oven Radiant Surface Element
60	WB09X40389 GE Radiant Element Spring
61	BURNER BOX BOTTOM
101	WB35X24123 GE Insulation
102	WB01X24570 GE Oven Installation Kit
200	WB02X26088 GE Oven Foam Tape
595	WB2K5126 GE Oven Condenser Clamp
600	WB18X32524 GE Conduit Wire Assembly
605	WB18X44577 GE Light Main Wire Harness
605	HARNESS WIRE POWER
605	WB18X32565 GE Oven 18 Gauge Lead Wire
605	WB18X44590 GE Right Main Wire Harness
691	GEN WZ04X0217
699	WB01X24096 GE Screw 8-18X
801	WS02X10087 GE Screws 10-32 GX HXW 7/16 S
802	WB1K5119 GE Oven Screw
809	WB1X1137 GE Oven Screw
813	WB01X24092 GE Oven Screw 8-18
938	WB1K5209 GE Oven Clip
964	WB02T10086 GE Retainer Wire
997	PM10X310 GE Cerama Bryte Cooktop Cleaner
999	PRINTED ONLYMINI MANUAL AND WIRING
999	PM INSTALL INSTRUCTIONS
999	PM OWNERS MANUAL
