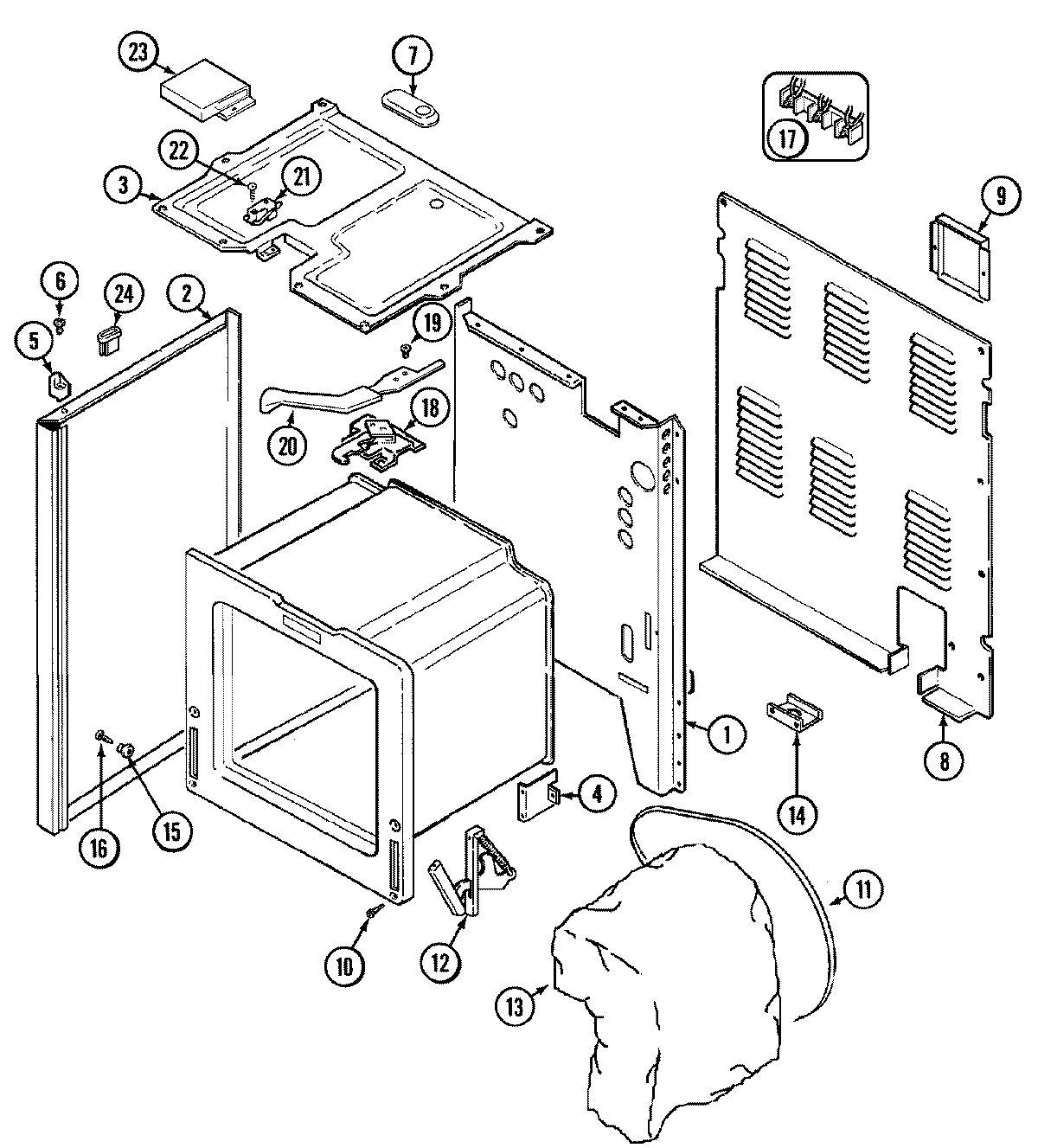

JER8500AAW 01 – BODY

Products

Position	Product
1	MAY 74002334
1	MAY 74001772
2	MAY 8270P078-60
2	MAY 74003236
3	MAY 74003403
3	WP74003976 Whirlpool Screw
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	SCREW
7	COVER, VENT
8	MAY 74003241
9	MAY 4005F427-51
10	WP4159193 Whirlpool Screw
11	MAY 74003385
12	WP74011140 Whirlpool Oven Hinge
13	MAY 74003381
13	WP74010942 Whirlpool Insulation
14	MAY 3605F174-51
15	MAY 8004P024-60
16	MAY 74001449
16	W11693756 Whirlpool Screw Assembly
17	WP7103P027-60 Whirlpool Nut
17	SCREW (10ABX1.0-ZN)
17	WPW10245259 Whirlpool Terminal Block
18	MAY 74003139
18	MAY 74003380
18	MAY 74001084
20	MAY 74002973
21	MAY 74003383
21	MAY 74003630
22	MAY 912012
23	MAY 74003479
24	MAY 74001256
