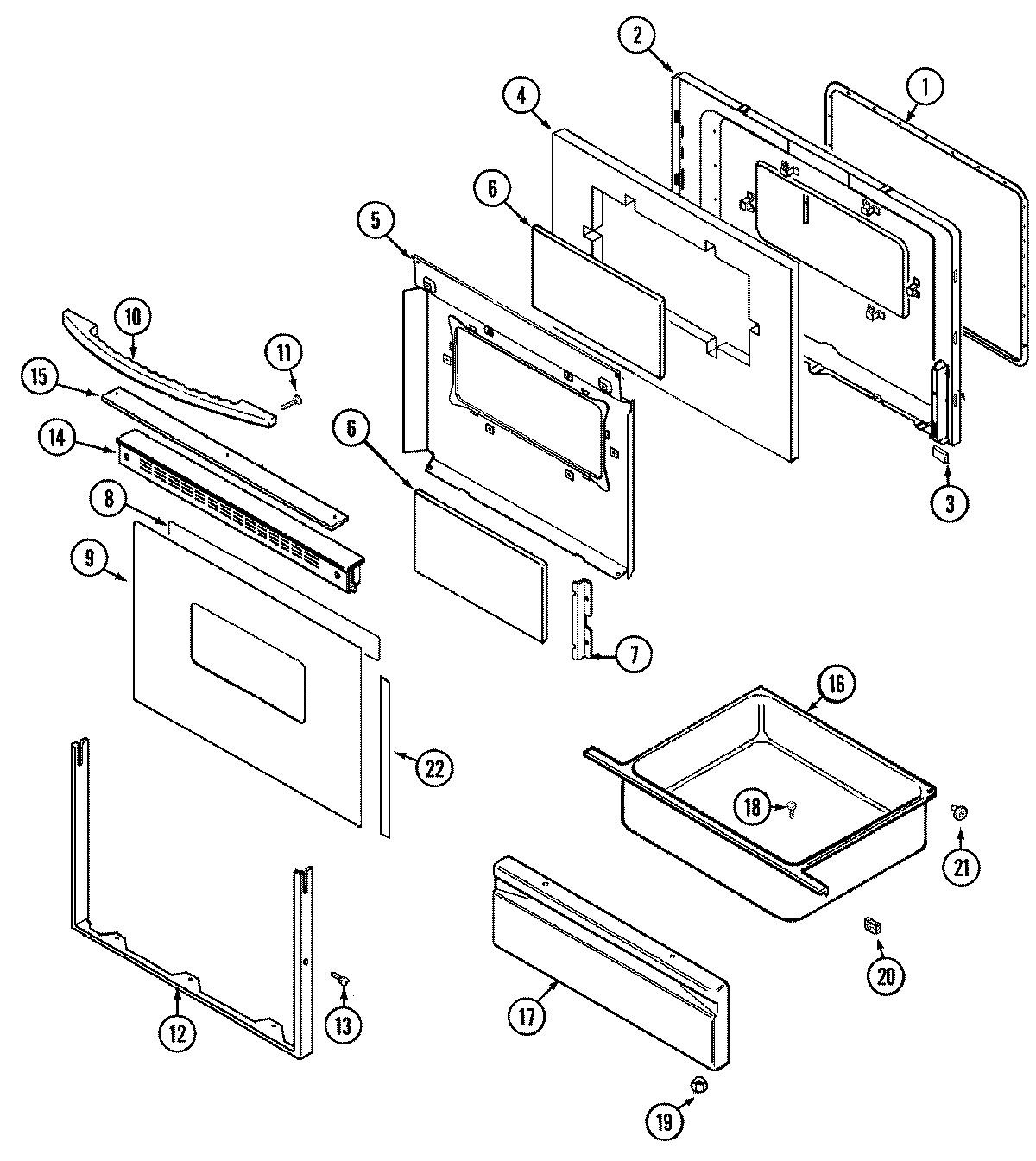

JER8530AAQ 03 – DOOR/DRAWER

JER8530AAQ 03 – DOOR/DRAWER

Written by

in

JER8530AAQ 03 – DOOR/DRAWER

Products

PositionProduct
1GASKT-DOOR OVEN
2MAY 74003244
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6GLASS, INNER
7MAY 74001844
8MAY 8270P078-60
9MAY 74006396
11WP74006515 Whirlpool Washer Screw
12MAY 74004975
14MAY 74006378
14SCREW
15WP74009541 Whirlpool Screw Assembly
15MAY 74004978
16MAY 71003042
17MAY 74005055
1974005230 Whirlpool Oven Lock Nut (8-32)
20WP854334 Whirlpool Air Conditioner Sealing Strip
21WP74004078 Whirlpool Door Roller
21SHAFT, STORAGE DRAWER ROLLER
22MAY 74003660
