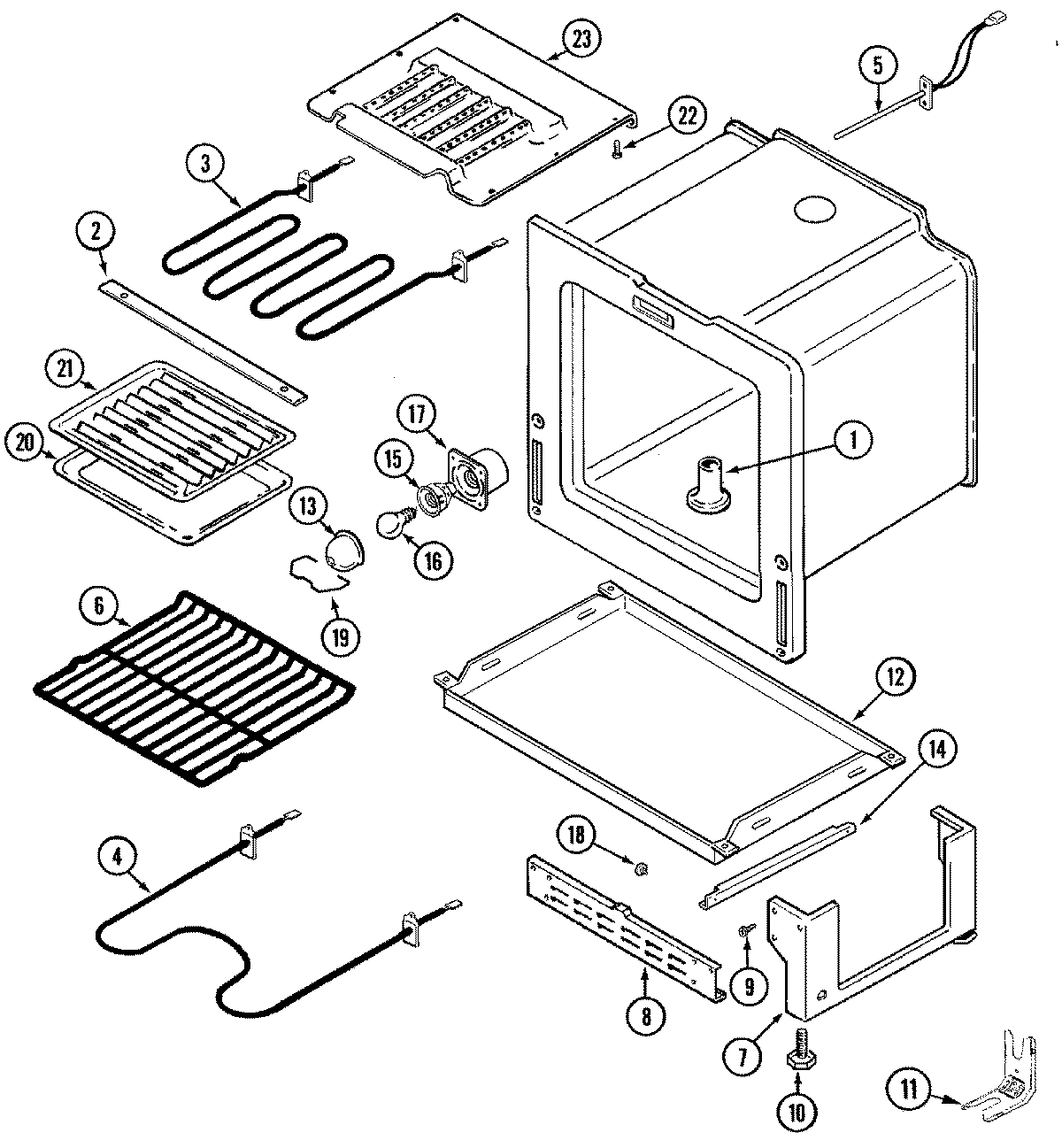

JER8530AAW 04 – OVEN/BASE

Products

Position	Product
1	MAY 74003469
2	MAY 74003563
3	WP400021-1 Whirlpool Screw
3	WP7406P218-60 Whirlpool Broil Element
4	WP74010750 Whirlpool Oven Bake Element
5	12001656 Whirlpool Range Oven Temperature Sensor
6	WPW10282492 Whirlpool Oven Rack
7	MAY 74006325
8	MAY 4020F001-80
10	W11665456 Whirlpool Range Level Foot
11	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
11	WP7101P485-60 Whirlpool Anchor Tip
12	RETAINER, INSULATION (BOTTOM)
13	MAY 74003389
14	SHAFT, STORAGE DRAWER ROLLER
14	RUNNER, DRAWER
15	MAY 74003387
15	SCREW
16	MAY Y707319
17	MAY 74003388
18	WP74004078 Whirlpool Door Roller
18	74005230 Whirlpool Oven Lock Nut (8-32)
18	WP488130 Whirlpool Air Conditioner Nut
19	MAY 74003391
20	MAY Y3401F02019
21	MAY Y3413F01619
22	SCREW, 8 X 1/2
23	MAY 3601F237-47
