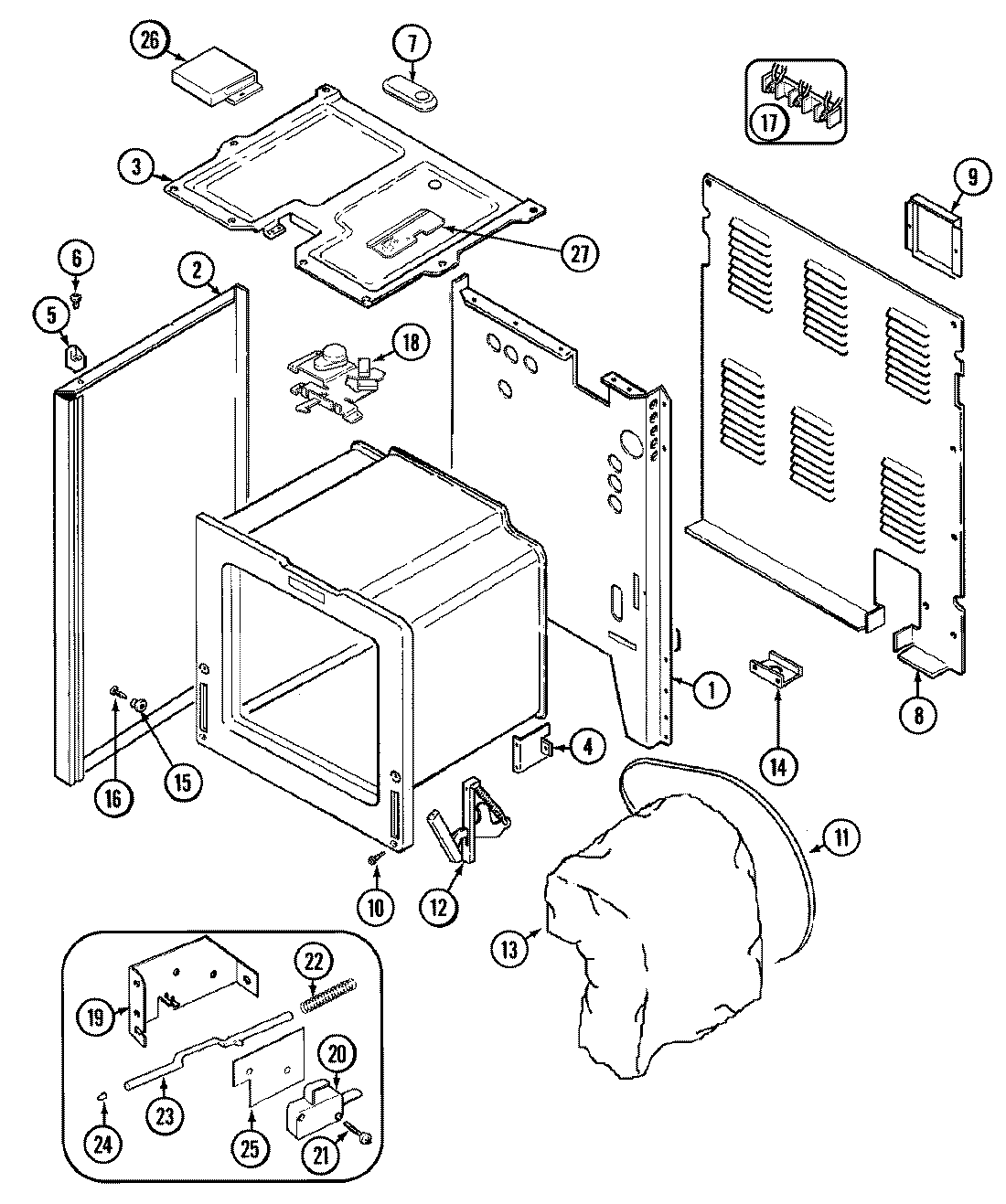

JER8550AAA 01 – BODY

Products

Position	Product
1	MAY 74001772
1	MAY 74002334
2	MAY 8270P078-60
2	MAY 74003237
3	MAY 74003403
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	SCREW
7	COVER, VENT
8	MAY 74003241
9	MAY 4005F427-51
10	WP4159193 Whirlpool Screw
11	MAY 74003385
12	MAY 74003249
13	MAY 74003381
13	WP74010942 Whirlpool Insulation
14	MAY 3605F174-51
15	MAY 8004P024-60
16	MAY 74001449
16	W11693756 Whirlpool Screw Assembly
17	WPW10245259 Whirlpool Terminal Block
17	WP7103P027-60 Whirlpool Nut
17	SCREW (10ABX1.0-ZN)
18	MAY 74003560
18	MAY 74003559
18	MAY 74003561
19	WPY706189 Whirlpool Stove Screw
19	BRACKET, SWITCH ACTUATOR
20	MAY 74001802
21	MAY 912012
23	ROD, DOOR LIGHT SWITCH
24	MAY 74001631
25	MAY 74001872
26	MAY 74003479
27	MAY 74001598
