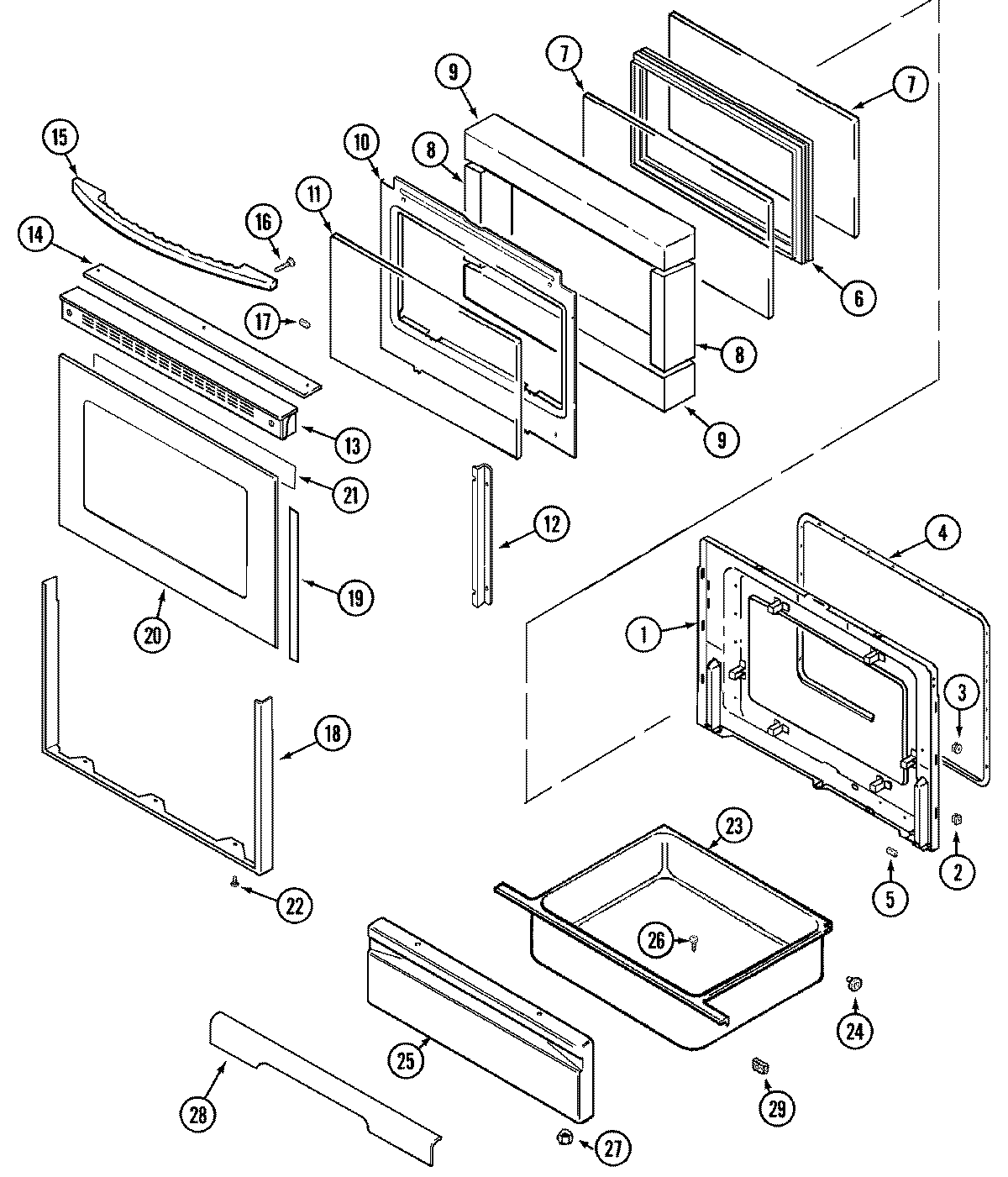

JER8550ACW 02 – DOOR/DRAWER

Products

Position	Product
1	MAY 74003642
2	MAY 74003643
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	MAY 74003646
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	GLASS, DOOR
12	MAY 74003650
13	WP74003653 Whirlpool Door Trim
14	MAY 7728P094-60
14	MAY 74001278
15	MAY 74003656
16	WP179051 Whirlpool Screw
17	MAY 71002092
18	MAY 74003659
18	WP98008544 Whirlpool Screw Assembly
19	MAY 74003660
20	MAY 74003663
21	TAPE, FOIL 29`` X 2``
22	SCREW
23	MAY 74003618
24	MAY 74003566
24	WP488130 Whirlpool Air Conditioner Nut
25	MAY 74003667
26	WP7101P072-60 Whirlpool Screw
27	WPW10131078 Whirlpool Nut Assembly
28	MAY 74003670
29	MAY 8010P085-60
