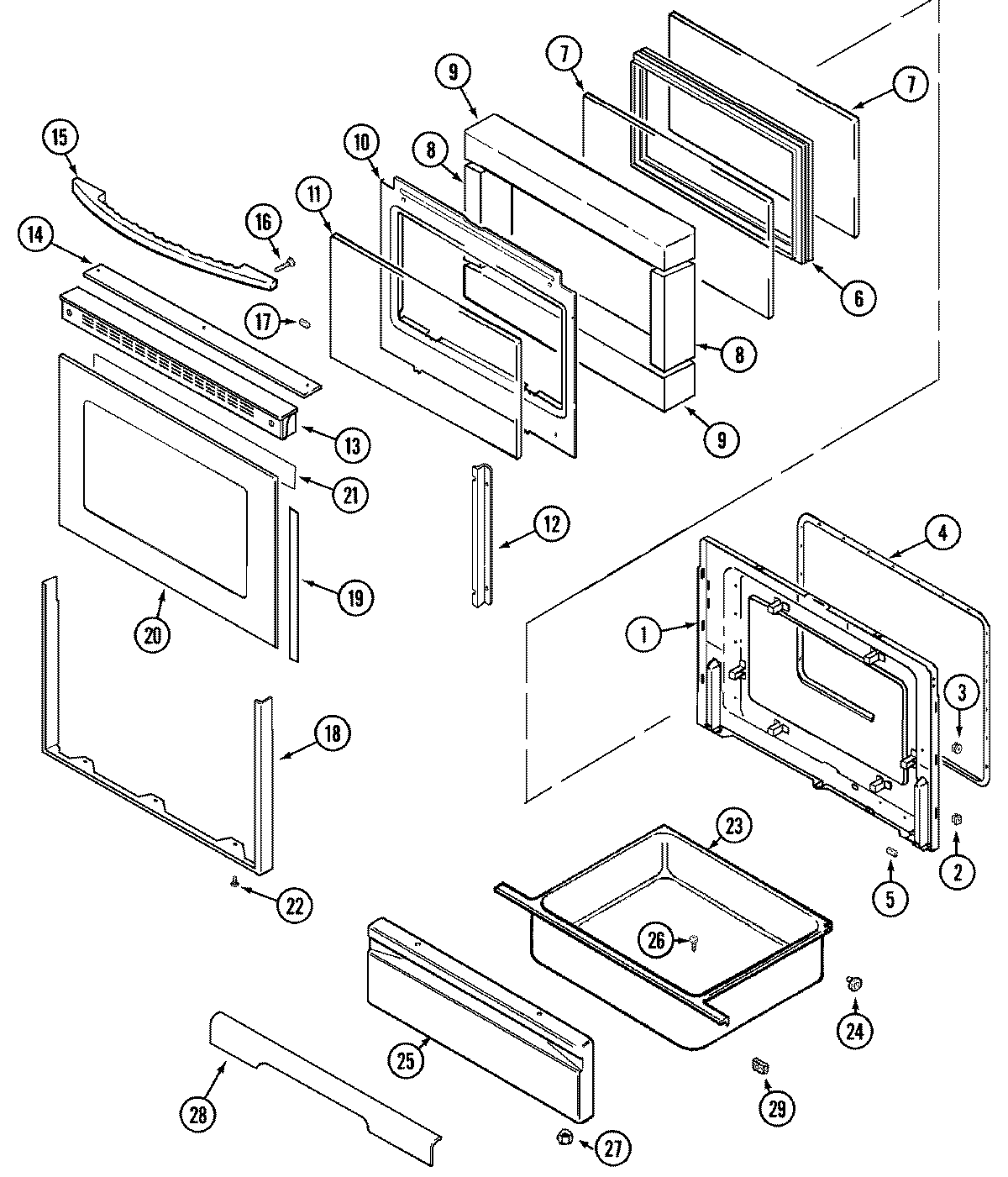

JER8650AAW 02 – DOOR/DRAWER

Products

PositionProduct
1MAY 74003642
2MAY 74003643
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8MAY 74003646
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13WP74003653 Whirlpool Door Trim
14MAY 7728P094-60
14MAY 74001278
15MAY 74003656
16WP179051 Whirlpool Screw
17MAY 71002092
18MAY 74003659
18WP98008544 Whirlpool Screw Assembly
19MAY 74003660
20MAY 74003663
21TAPE, FOIL 29“ X 2“
22SCREW
23MAY 74003618
24MAY 74003566
24WP488130 Whirlpool Air Conditioner Nut
25MAY 74003667
26WP7101P072-60 Whirlpool Screw
27WPW10131078 Whirlpool Nut Assembly
28MAY 74003670
29MAY 8010P085-60
