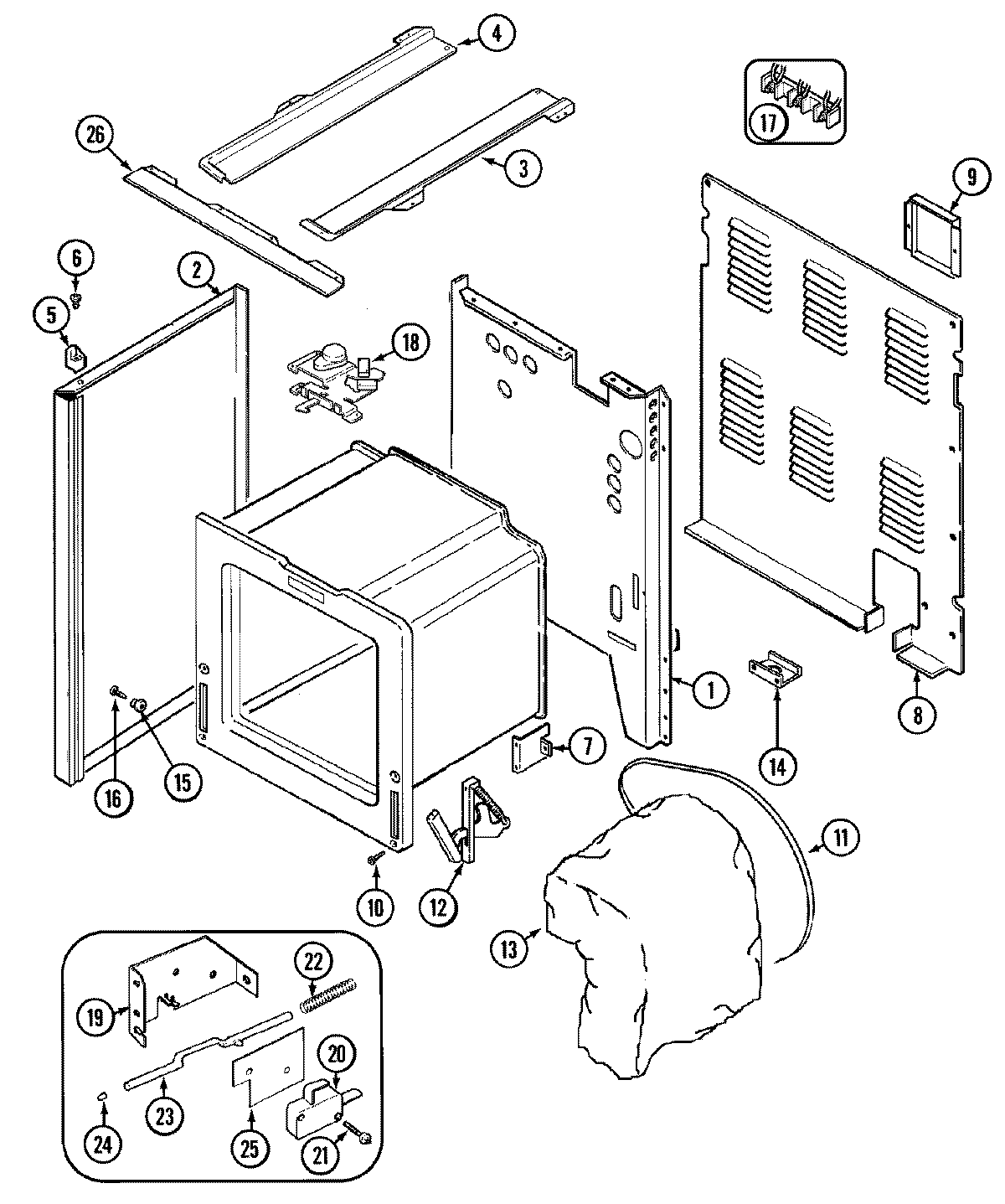

JER8750AAA 01 – BODY

JER8750AAA 01 – BODY

Written by

in

JER8750AAA 01 – BODY

Products

PositionProduct
1MAY 74001772
2MAY 74003237
2MAY 8270P078-60
3MAY 74003378
4MAY 74003379
5SPACER, MAIN TOP (RT)
5SPACER, MAIN TOP (LT)
6SCREW
7SUPPORT,OVEN REAR
8MAY 74003241
9MAY 4005F427-51
10WP4159193 Whirlpool Screw
11MAY 74003385
12MAY 74003249
13MAY 74003381
13WP74010942 Whirlpool Insulation
14W10190166 Whirlpool Service Bracket
14MAY 3605F174-51
15MAY 8004P024-60
16MAY 74001449
16W11693756 Whirlpool Screw Assembly
17WPW10245259 Whirlpool Terminal Block
17SCREW (10ABX1.0-ZN)
17WP7103P027-60 Whirlpool Nut
18MAY 74003561
18MAY 74003560
18MAY 74003559
19BRACKET, SWITCH ACTUATOR
19WPY706189 Whirlpool Stove Screw
20MAY 74001802
21MAY 912012
23ROD, DOOR LIGHT SWITCH
24MAY 74001631
25MAY 74001872
26MAY 74003384
