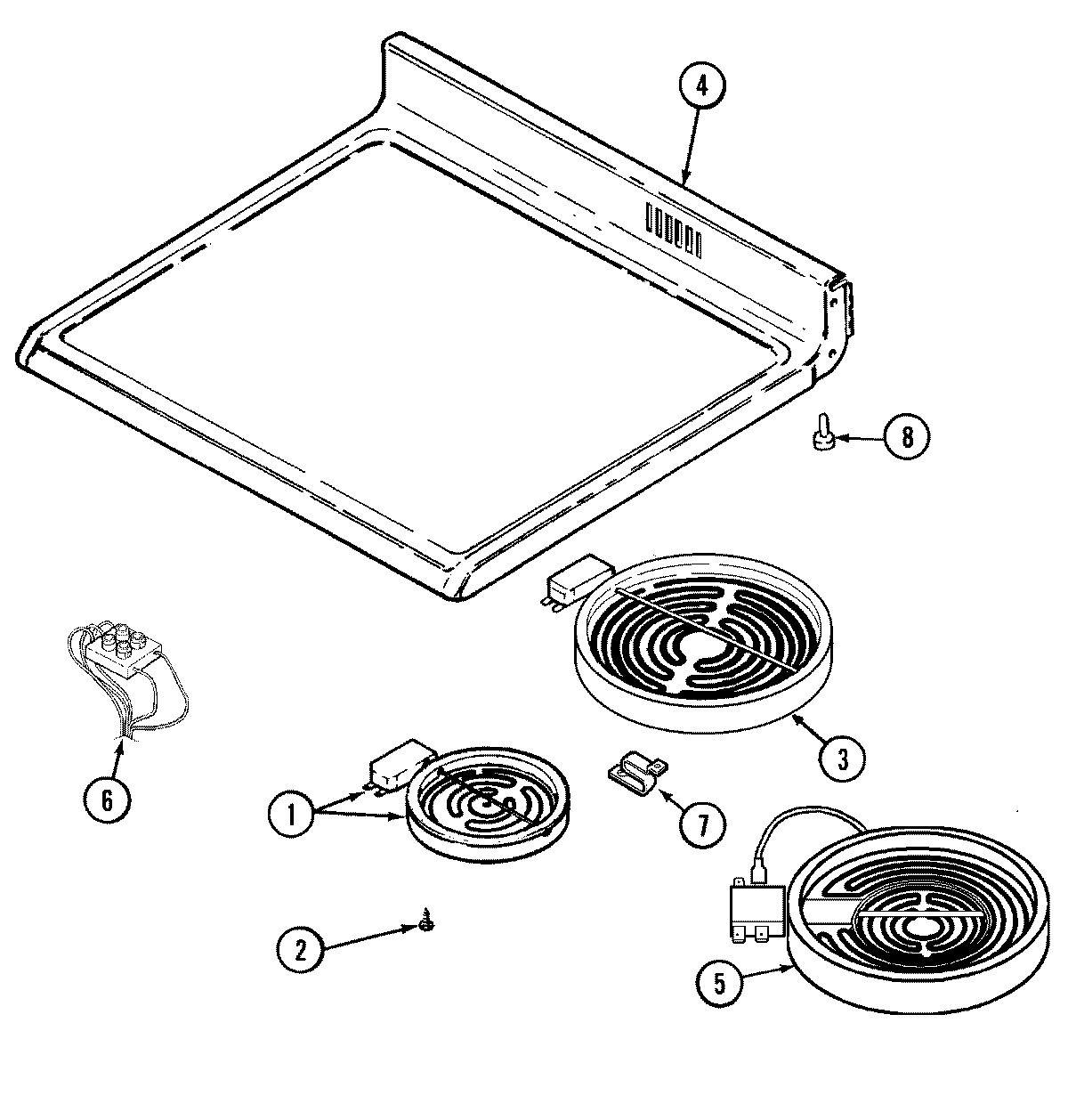

JER8750AAW 05 – TOP ASSEMBLY

JER8750AAW 05 – TOP ASSEMBLY

Written by

in

JER8750AAW 05 – TOP ASSEMBLY

Products

PositionProduct
1W10823711 Whirlpool Surface Element Left Front and Right Rear
1W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
2SCREW (6ABX.25-ZN)
3W10823697 Whirlpool Surface Element
3W10823707 Whirlpool Range Radiant Surface Element 8"
3MAY 74002652
3MAY 74004494
4MAY 74003588
5MAY 74002176
5W10823703 Whirlpool Surface Element
5MAY 74002667
5W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
68004P093-60 Whirlpool Support C
7MAY 74003589
8W11189172 Whirlpool Glide Drawer
