JER8750ACB 05 – TOP ASSEMBLY

JER8750ACB 05 – TOP ASSEMBLY

Written by

in

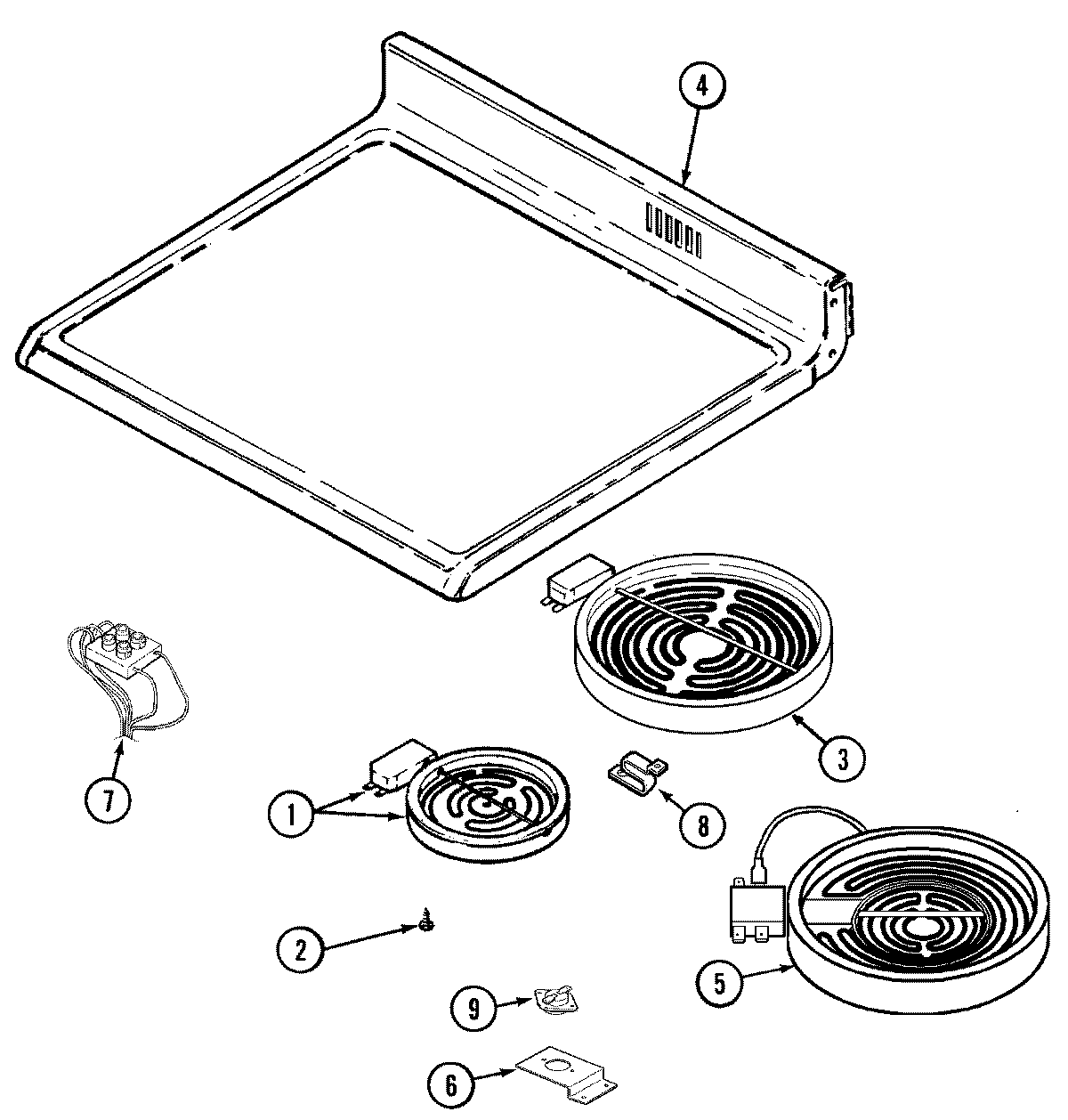

JER8750ACB 05 – TOP ASSEMBLY

Products

PositionProduct
1W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
3W10823707 Whirlpool Range Radiant Surface Element 8"
3MAY 74002652
3MAY 74004494
4MAY 8308P002-60
4W11189172 Whirlpool Glide Drawer
4MAY 71003074
5W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
5W10823703 Whirlpool Surface Element
5MAY 74002667
5MAY 74002176
6MAY 71003077
7MAY 71003078
88004P093-60 Whirlpool Support C
9SCREW (6ABX.25-ZN)
9MAY 71003076
