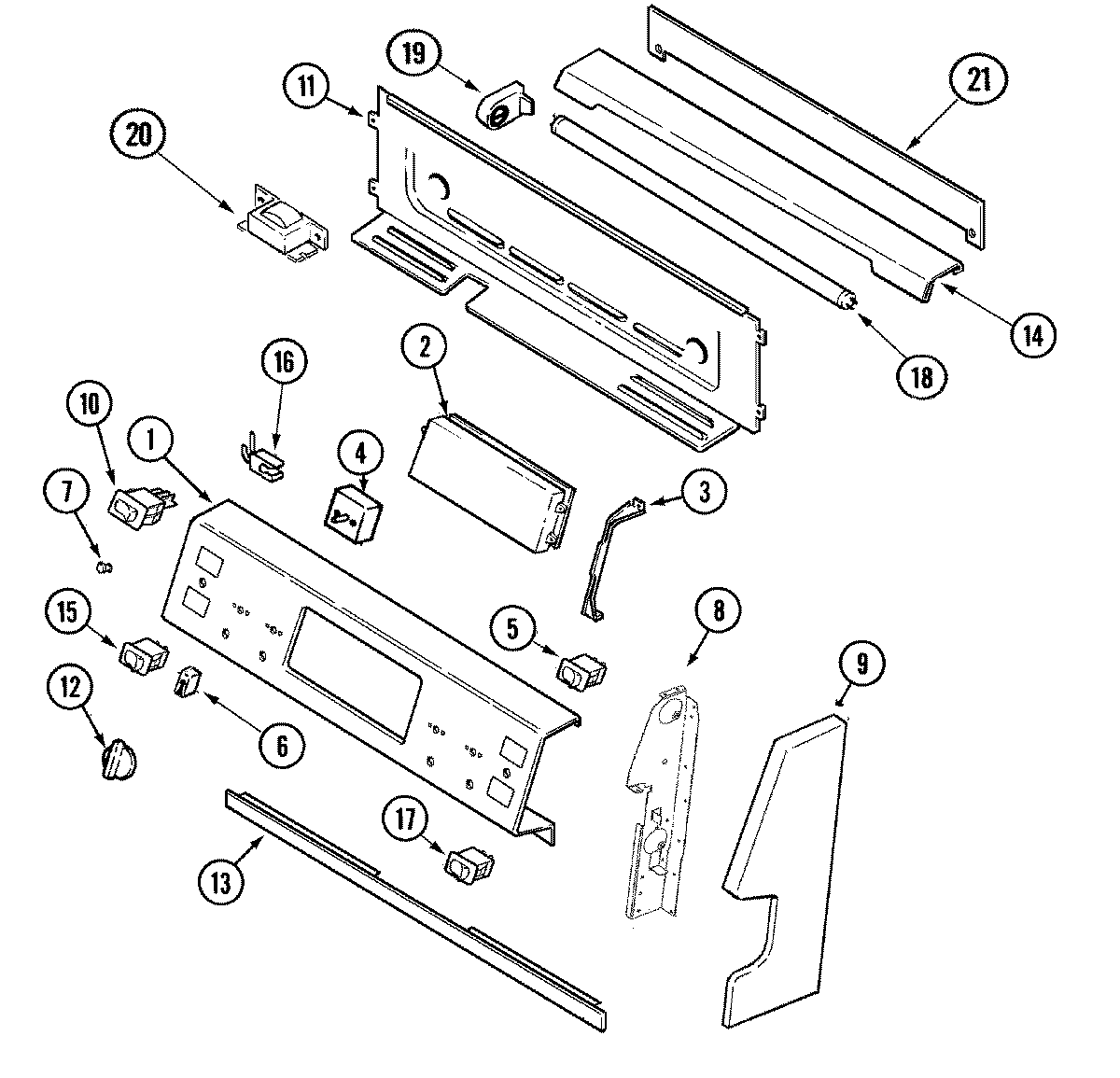

JER8750BAW 02 – CONTROL PANEL

Products

PositionProduct
1MAY 74006799
2SCREW (6ABX.25-ZN)
2MAY 74006219
3MAY 74003550
3MAY 7101P348-60
4WP7403P238-60 Whirlpool Infinite Switch (Small Element)
4SCREW
4MAY 74006797
4WP7403P239-60 Whirlpool Oven Switch
6WP74004153 Whirlpool Indicator Light
7WP7730P011-60 Whirlpool Indicator Lens
8MAY 74003365
8MAY 74003366
9MAY 74003581
9MAY 74003580
9MAY 74002451
9WP98008544 Whirlpool Screw Assembly
10MAY 74003577
11MAY 74003372
12WP74003143 Whirlpool Infinite Control Knob
13SCREW
13MAY 74003374
14MAY 74003579
15MAY 74006703
16WP903115 Whirlpool Dishwasher Indicator Light
1774008717 Whirlpool White Rocker Switch
18WP95292 Whirlpool Fluorescent Light Bulb
19MAY 7408P030-60
20MAY 74003033
21MAY 74003558
