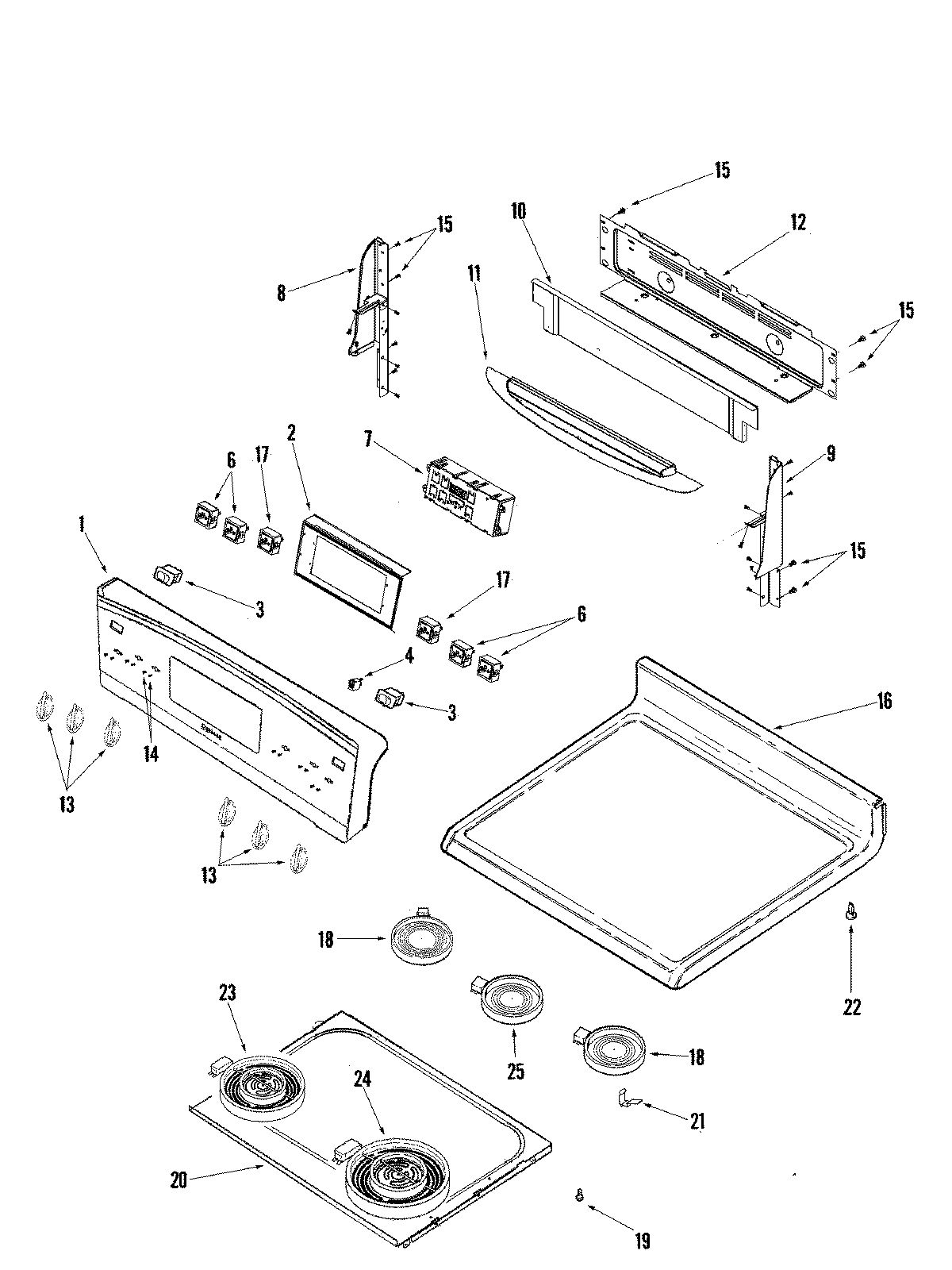

JER8785QAB 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

Products

Position	Product
1	MAY 74008649
2	MAY 74008716
3	74008765 Whirlpool Range Oven Rocker Switch Bisque
3	SWITCH, ROCKER (BLK)
4	WP74004153 Whirlpool Indicator Light
4	WP903115 Whirlpool Dishwasher Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
7	MAY 74009163
8	End Cap (Right Black)
9	End Cap (Left Black)
10	MAY 74009205
10	MAY 74008725
11	MAY 74008891
11	MAY 74009202
12	MAY 74008730
12	MAY 74008836
13	WP74008921 Whirlpool Knob
14	SCREW
16	MAY 74008553
17	MAY 74006589
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	W10823692 Whirlpool Dual Radiant Element
24	W10823713 Whirlpool Surface Element
25	MAY 74008898
