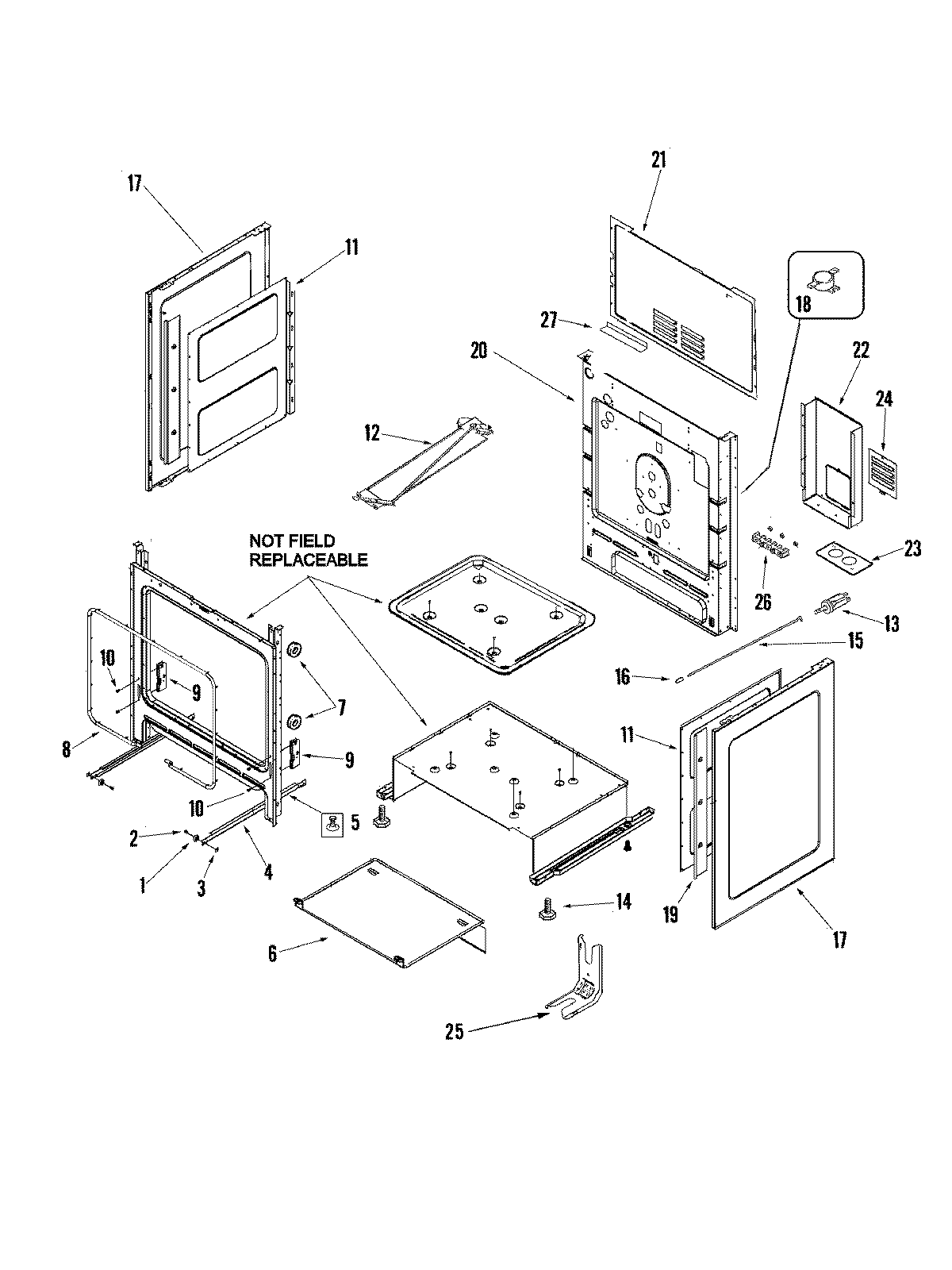

JER8785QAF 01 – CABINET

JER8785QAF 01 – CABINET

Written by

in

JER8785QAF 01 – CABINET

Products

PositionProduct
1WP74004078 Whirlpool Door Roller
2SHAFT, STORAGE DRAWER ROLLER
374005230 Whirlpool Oven Lock Nut (8-32)
4MAY 74008881
5MAY 74008688
6MAY 74009595
6MAY 74008882
7SCREW W/SHOULDER (No.8)
7SPACER, SIDE PANEL
8W11562931 Whirlpool Door Gasket
9WP74010551 Whirlpool Receiver
10WP4159193 Whirlpool Screw
11MAY 74009956
11MAY 74008701
12MAY 74008702
1274003975 Whirlpool Screw P1 (8ABX3/8-BLK)
1374008703 Whirlpool Door Switch
13MAY 74008704
14W11665456 Whirlpool Range Level Foot
1474008835 Whirlpool Clip Retainer
15SLEEVE, ROD TUBE
15MAY 74008706
1674008707 Whirlpool Oven Bumper
17MAY 74008709
18SCREW
1874008715 Whirlpool Thermal Limiter Switch
19WP7103P027-60 Whirlpool Nut
20MAY 74008699
21COVER, MAIN WIRE (ELE)
22MAY 74008760
23PLATE, CONDUIT REINFORCEMENT
24MAY 74008340
25WP7101P485-60 Whirlpool Anchor Tip
25WP3801F656-51 Whirlpool Range Anti-Tip Bracket
26WPW10245259 Whirlpool Terminal Block
27BOTTOM, WIRE COVER
