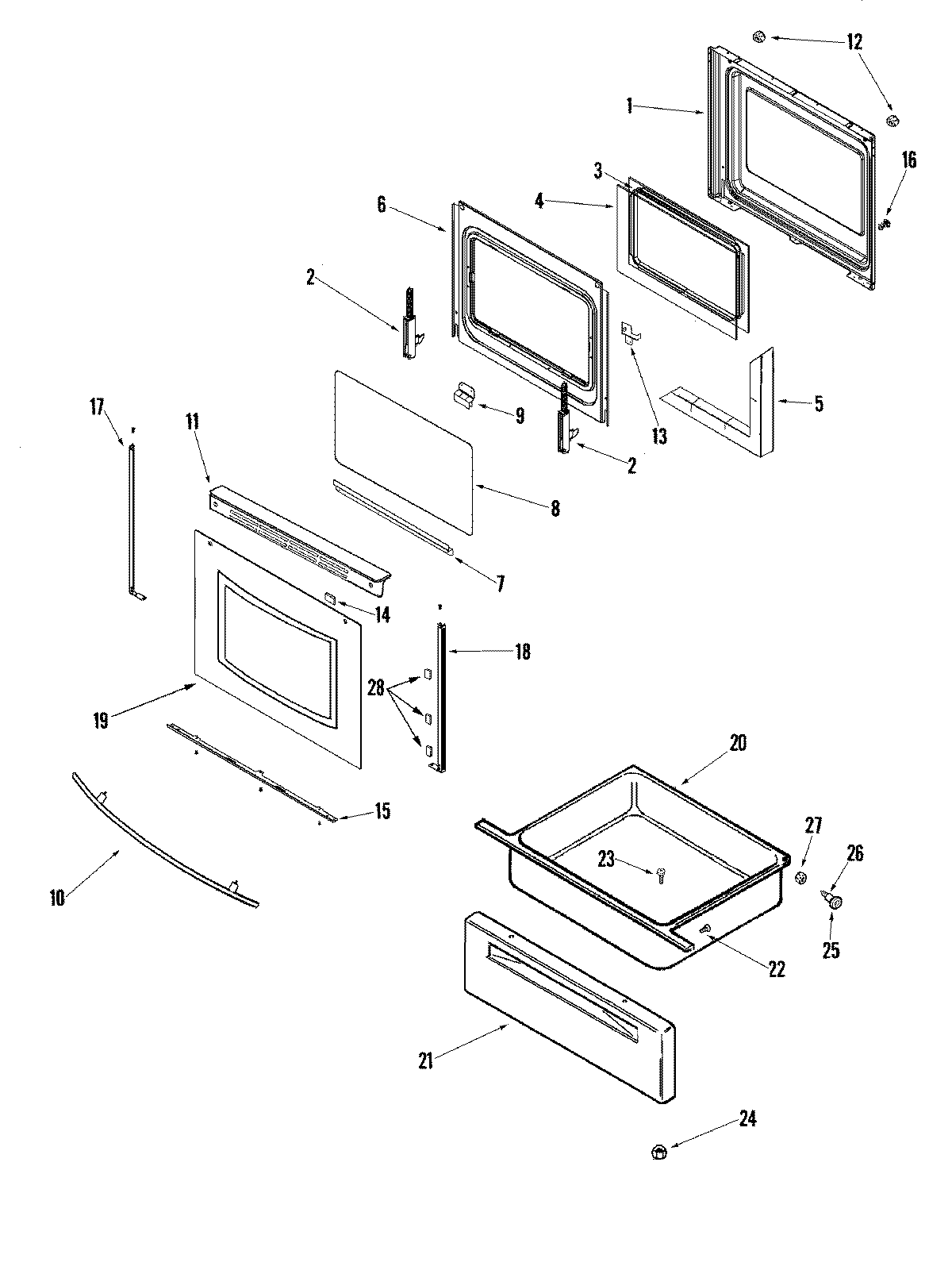

JER8785QAF 04 – DOOR/DRAWER

Products

Position	Product
1	MAY 74008742
2	74010546 Whirlpool Range Oven Door Hinge
3	FRAME, GLASS
4	74003645 Whirlpool Range Oven Door Inner Glass
5	INSULATION, OVEN DOOR
6	MAY 74008744
7	MAY 74008745
8	GLASS, DOOR
9	Trim, Door Top (Black)
10	MAY 74008920
11	WP98008544 Whirlpool Screw Assembly
11	MAY 74008747
12	WP74006515 Whirlpool Washer Screw
13	MAY 74008750
13	MAY 74008749
14	WP74004224 Whirlpool Tape
15	WP3608F092-71 Whirlpool Bottom Trim
16	SCREW (10-24X5/16-NI)
17	MAY 74008753
18	MAY 74008751
18	MAY 74010561
19	GLASS, DOOR (WHT)
20	MAY 74009105
20	MAY 74008339
21	Panel, Drawer (White)
22	SCREW
23	WP7101P072-60 Whirlpool Screw
24	WPW10131078 Whirlpool Nut Assembly
27	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
28	WP74009014 Whirlpool Double Tape
