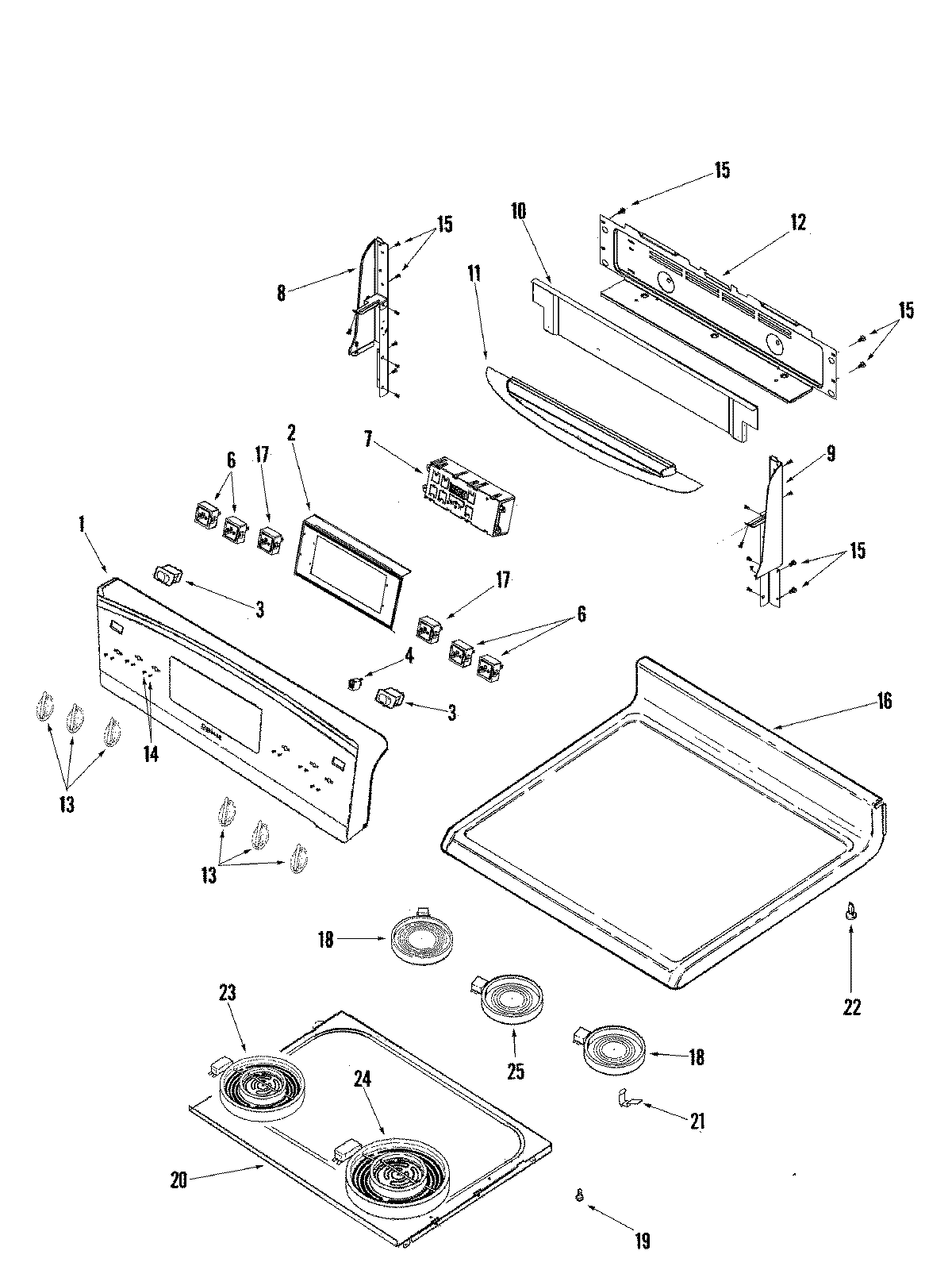

JER8785QAN 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74008648
2	MAY 74008716
3	74008765 Whirlpool Range Oven Rocker Switch Bisque
4	WP903115 Whirlpool Dishwasher Indicator Light
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	MAY 74009163
8	END CAP (RT-BSQ)
9	END CAP (LT-BSQ)
10	MAY 74009207
10	MAY 74008727
11	MAY 74008729
11	SHIELD, HEAT VISOR (BSQ)
12	MAY 74008836
12	MAY 74008730
13	MAY 74008922
14	SCREW
16	MAY 74008554
17	MAY 74006589
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	W10823692 Whirlpool Dual Radiant Element
24	W10823713 Whirlpool Surface Element
25	MAY 74008898
