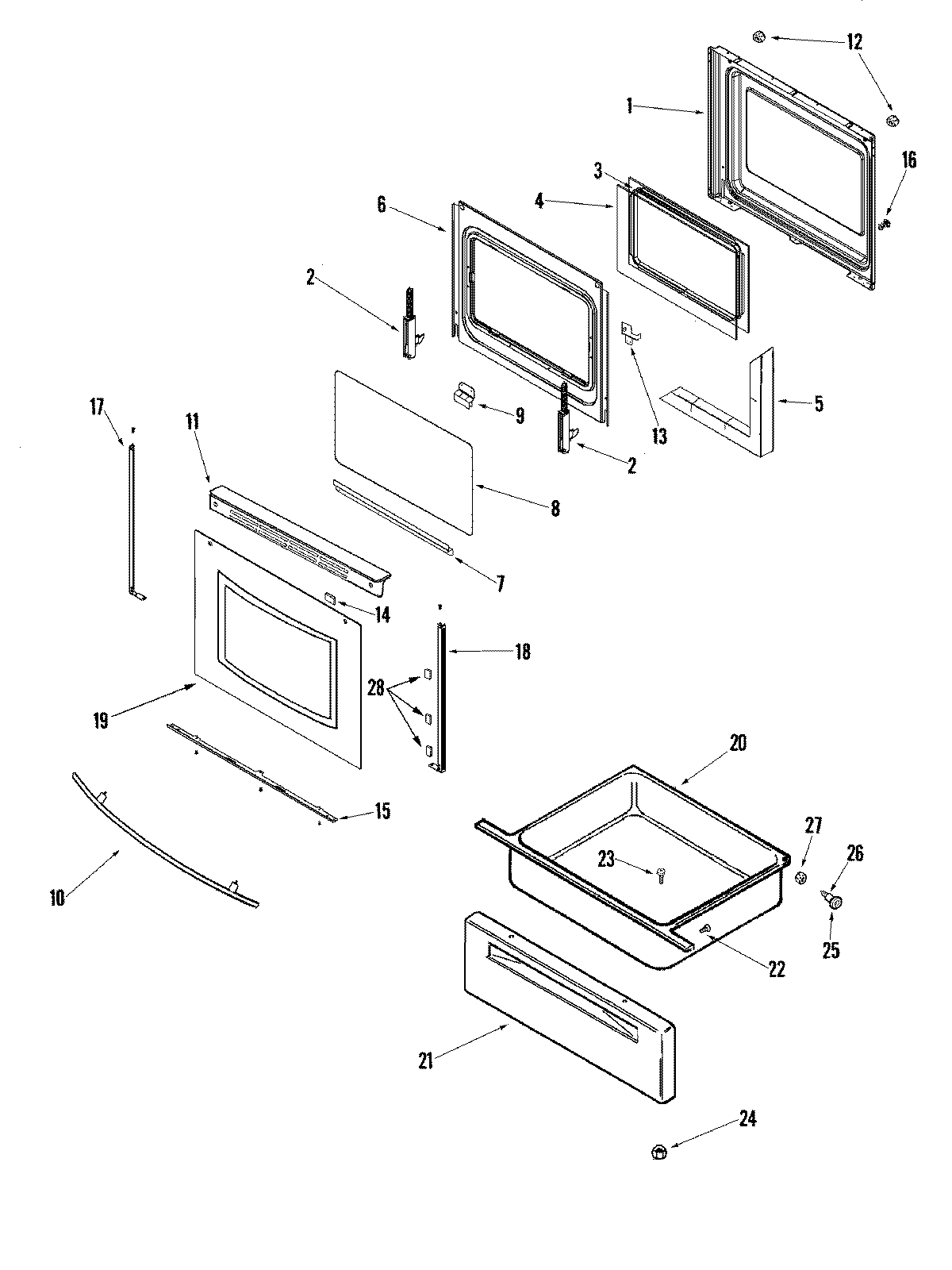

JER8785QAN 04 – DOOR/DRAWER

Products

Position	Product
1	MAY 74008742
2	74010546 Whirlpool Range Oven Door Hinge
3	FRAME, GLASS
4	74003645 Whirlpool Range Oven Door Inner Glass
5	INSULATION, OVEN DOOR
6	MAY 74008744
7	MAY 74008745
8	GLASS, DOOR
9	Trim, Door Top (Black)
10	MAY 74008920
11	WP74009541 Whirlpool Screw Assembly
11	MAY 74008748
12	WP74006515 Whirlpool Washer Screw
13	MAY 74008749
13	MAY 74008750
14	WP74004224 Whirlpool Tape
15	TRIM, BOTTOM (BSQ)
16	SCREW (10-24X5/16-NI)
17	MAY 74008754
18	TRIM, SIDE (BSQ)
18	MAY 74008752
19	MAY 74008685
20	MAY 74009105
20	MAY 74008339
21	MAY 74008756
22	SCREW
23	WP7101P072-60 Whirlpool Screw
24	WPW10131078 Whirlpool Nut Assembly
27	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
28	WP74009014 Whirlpool Double Tape
