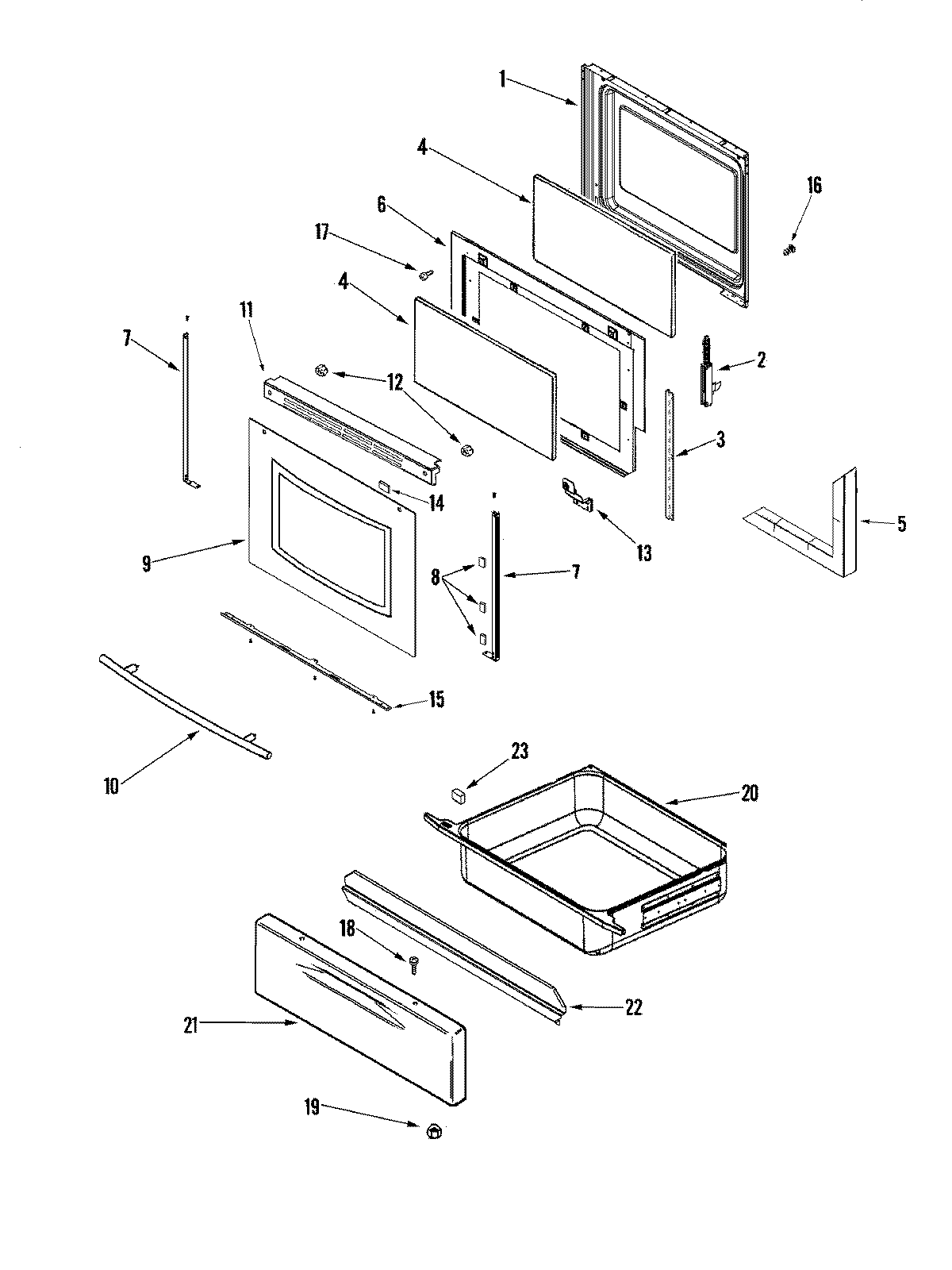

JER8785RAB 04 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008926
274010546 Whirlpool Range Oven Door Hinge
33801F886-51 Whirlpool Mounting Bracket
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6Retainer, Side
7MAY 74010560
8WP74009025 Whirlpool Double Sided Tape
9MAY 74008686
10MAY 74008920
11WP98008545 Whirlpool Screw
11MAY 74008890
12WP3400029 Whirlpool Dishwasher Nut
13BRACKET, DOOR HANDLE (RT)
13BRACKET, DOOR HANDLE (LT)
14WP74004224 Whirlpool Tape
15TRIM, BOTTOM (BLK)
16SCREW (10-24X5/16-NI)
17SCREW
18WP7101P072-60 Whirlpool Screw
19WPW10131078 Whirlpool Nut Assembly
20MAY 74008339
21Panel, Drawer (Black)
21MAY W10163038
22MAY 74009105
23WP74005546 Whirlpool RU Spacer
