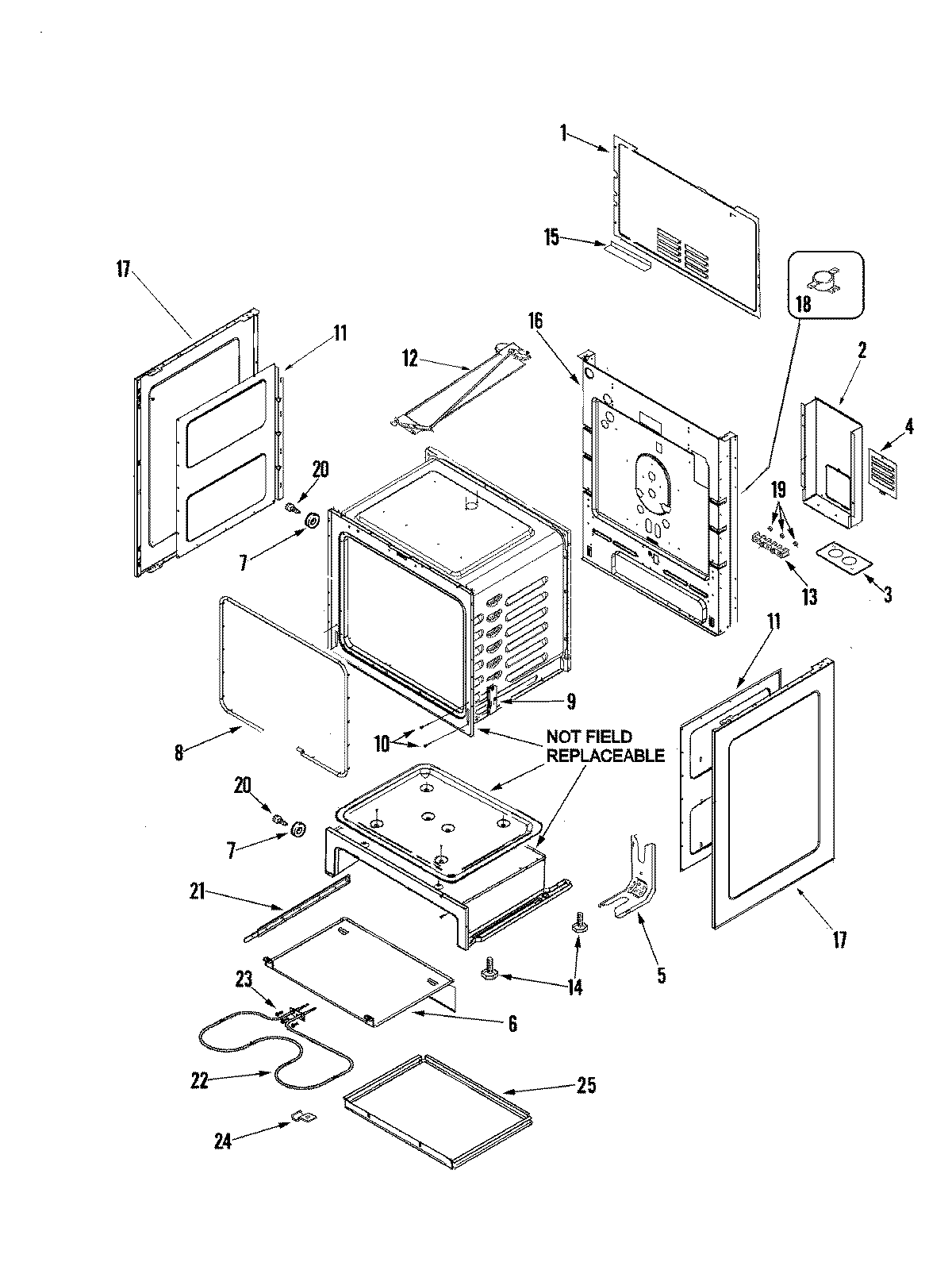

JER8785RAF 01 – CABINET

JER8785RAF 01 – CABINET

Written by

in

JER8785RAF 01 – CABINET

Products

PositionProduct
1COVER, MAIN WIRE (ELE)
2MAY 74008760
3PLATE, CONDUIT REINFORCEMENT
4MAY 74008340
5WP7101P485-60 Whirlpool Anchor Tip
5WP3801F656-51 Whirlpool Range Anti-Tip Bracket
6MAY 74009595
7SPACER, SIDE PANEL
8W11562931 Whirlpool Door Gasket
9WP74010551 Whirlpool Receiver
10WP4159193 Whirlpool Screw
11MAY 74008701
11MAY 3804F316-51
11MAY 7002P494-60
12MAY 74011896
12MAY 8002P104-60
1274003975 Whirlpool Screw P1 (8ABX3/8-BLK)
13WPW10245259 Whirlpool Terminal Block
14W11665456 Whirlpool Range Level Foot
15BOTTOM, WIRE COVER
16MAY 74008699
17MAY 74008709
1874008715 Whirlpool Thermal Limiter Switch
19WP7103P027-60 Whirlpool Nut
20SCREW W/SHOULDER (No.8)
21MAY 74008881
21SCREW
22MAY 74008883
23MAY 7101P147-60
24MAY 74006592
25MAY 74011024
