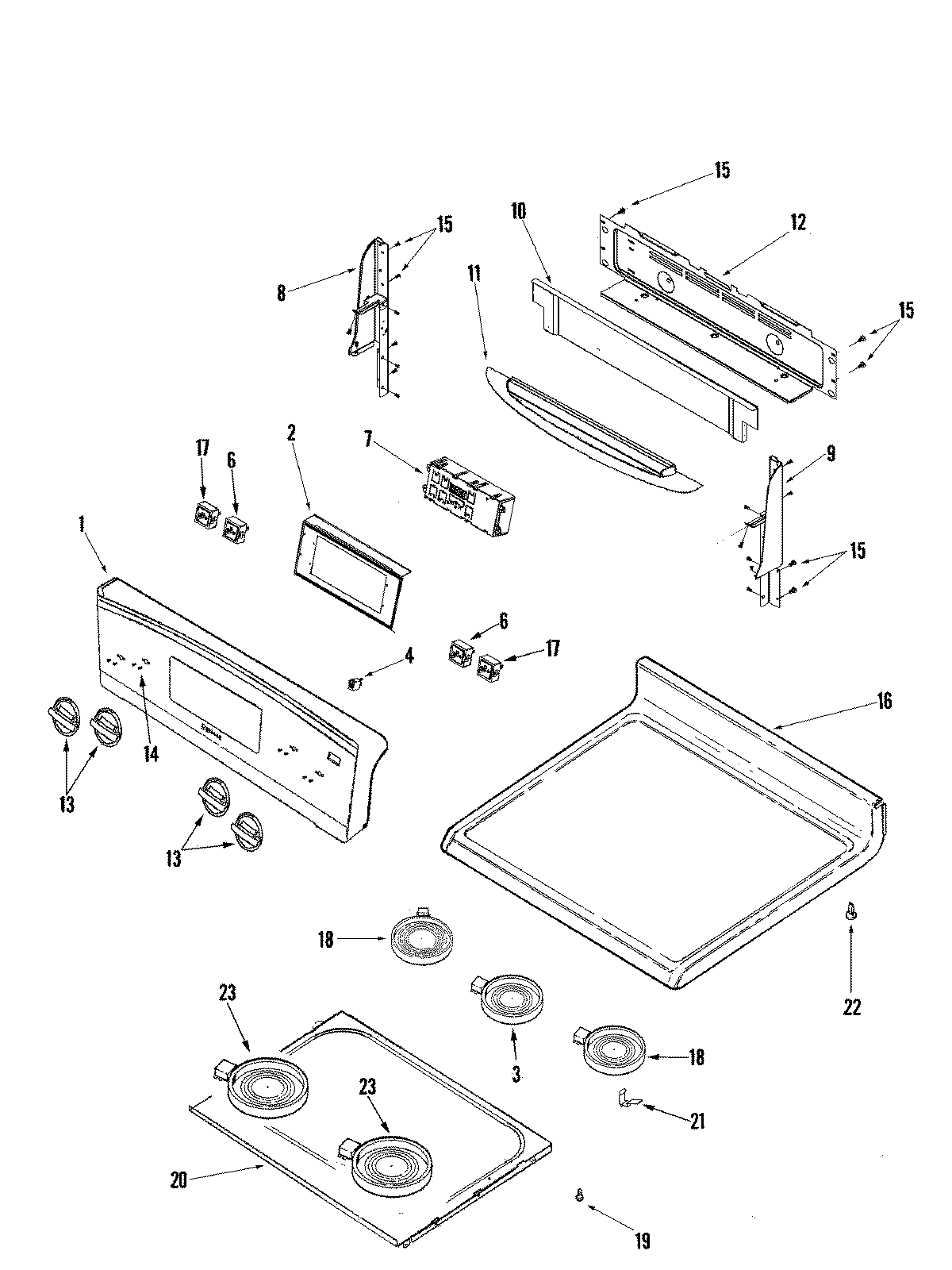

JER8785RAF 03 – CONTROL PANEL/TOP ASSEMBLY

JER8785RAF 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

JER8785RAF 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011918
2MAY 74011982
3MAY 74008898
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7MAY 74011983
8End Cap (Right White)
9End Cap (Left White)
10MAY 74009444
11MAY 74009203
12MAY 74010983
13WP74008921 Whirlpool Knob
14SCREW
16MAY 5706M612-81
17SWITCH-ELMNT
18W10823711 Whirlpool Surface Element Left Front and Right Rear
19SCREW
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
23W10823692 Whirlpool Dual Radiant Element
