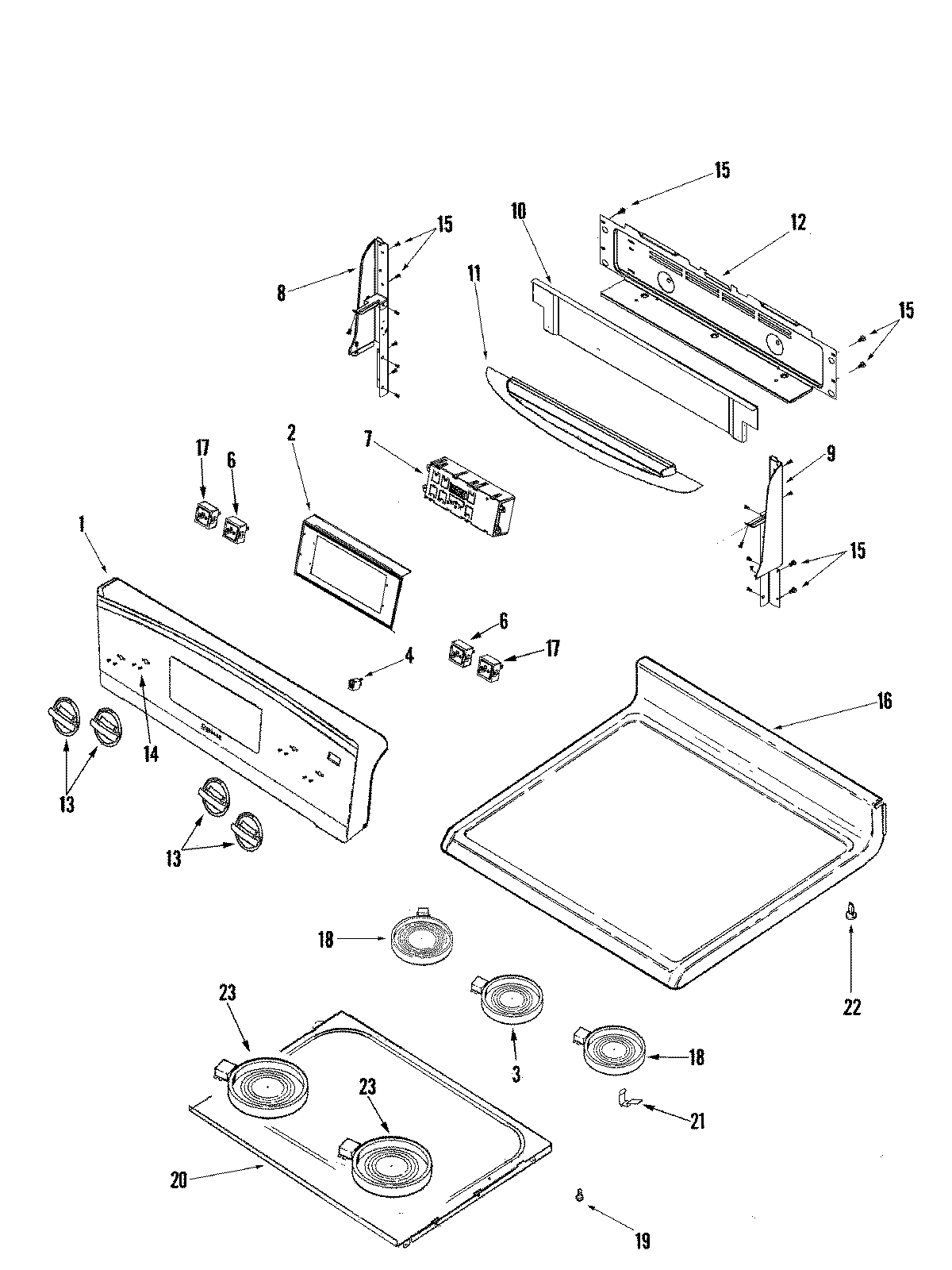

JER8785RAS 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74011920
2	MAY 74011982
3	MAY 74008898
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	MAY 74011983
8	End Cap (Right Black)
9	End Cap (Left Black)
10	MAY 74009444
11	MAY 74009202
12	MAY 74010983
13	WP74008921 Whirlpool Knob
14	SCREW
16	MAY 5706M613-09
17	SWITCH-ELMNT
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	W10823692 Whirlpool Dual Radiant Element
