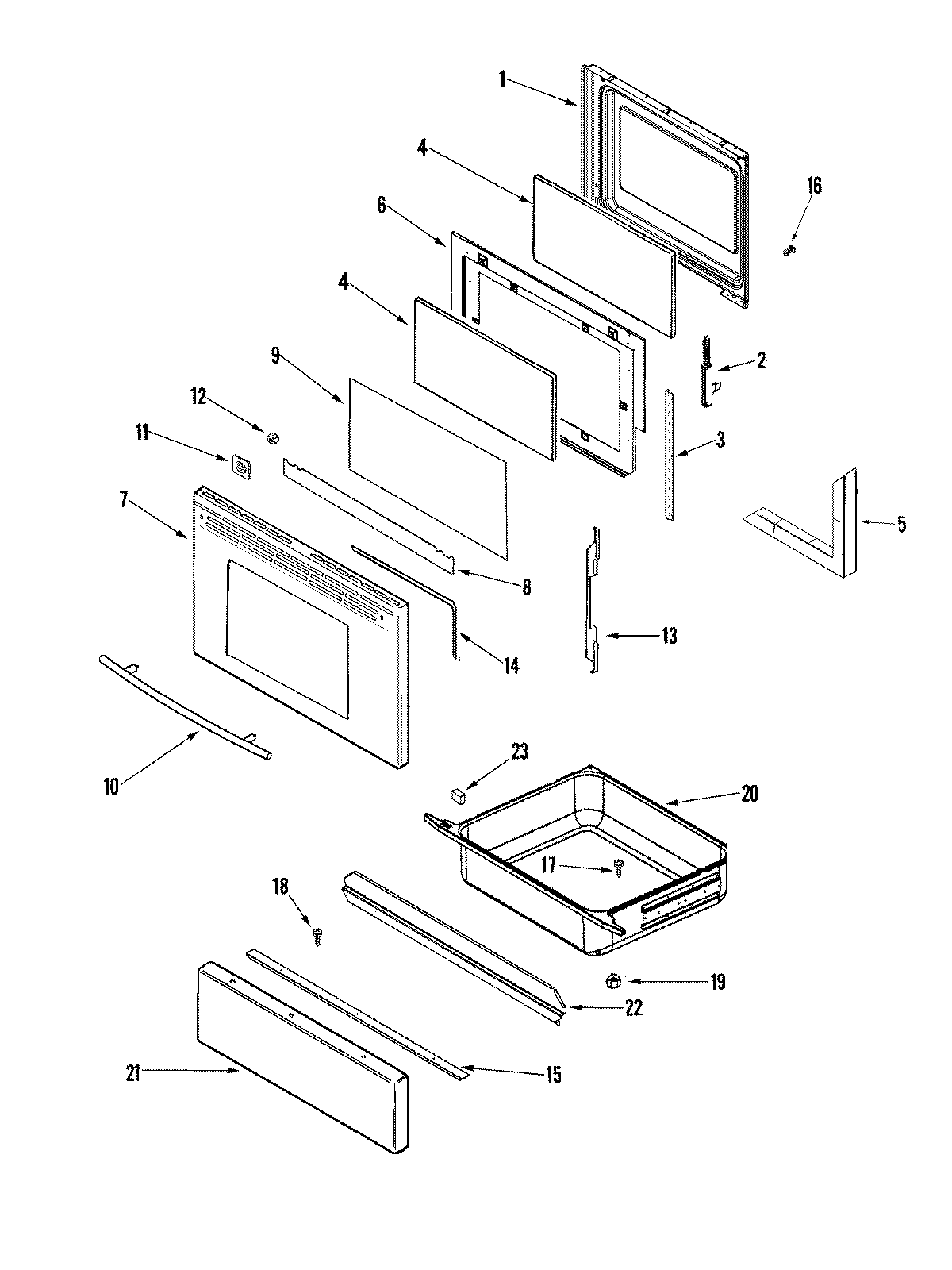

JER8785RAS 04 – DOOR/DRAWER (STL)

Products

Position	Product
1	MAY 74008926
2	74010546 Whirlpool Range Oven Door Hinge
3	3801F886-51 Whirlpool Mounting Bracket
4	74003645 Whirlpool Range Oven Door Inner Glass
5	INSULATION, OVEN DOOR
6	SCREW
6	Retainer, Side
7	PANEL, DOOR (STL)
8	TAPE, FOIL
9	MAY 7902P805-60
10	MAY 74008920
11	MAY 74008914
12	WP3400029 Whirlpool Dishwasher Nut
13	MAY 3801F918-51
14	74008916 Whirlpool Window Gasket
15	MAY 74008909
15	HANDLE, DRAWER
16	SCREW (10-24X5/16-NI)
17	WP7101P072-60 Whirlpool Screw
19	WPW10131078 Whirlpool Nut Assembly
20	MAY 74008339
21	PANEL, DRAWER (STL-ELEC)
21	12002306 Whirlpool Air Conditioner Drawer Panel Kit
22	MAY 74009105
23	WP74005546 Whirlpool RU Spacer
