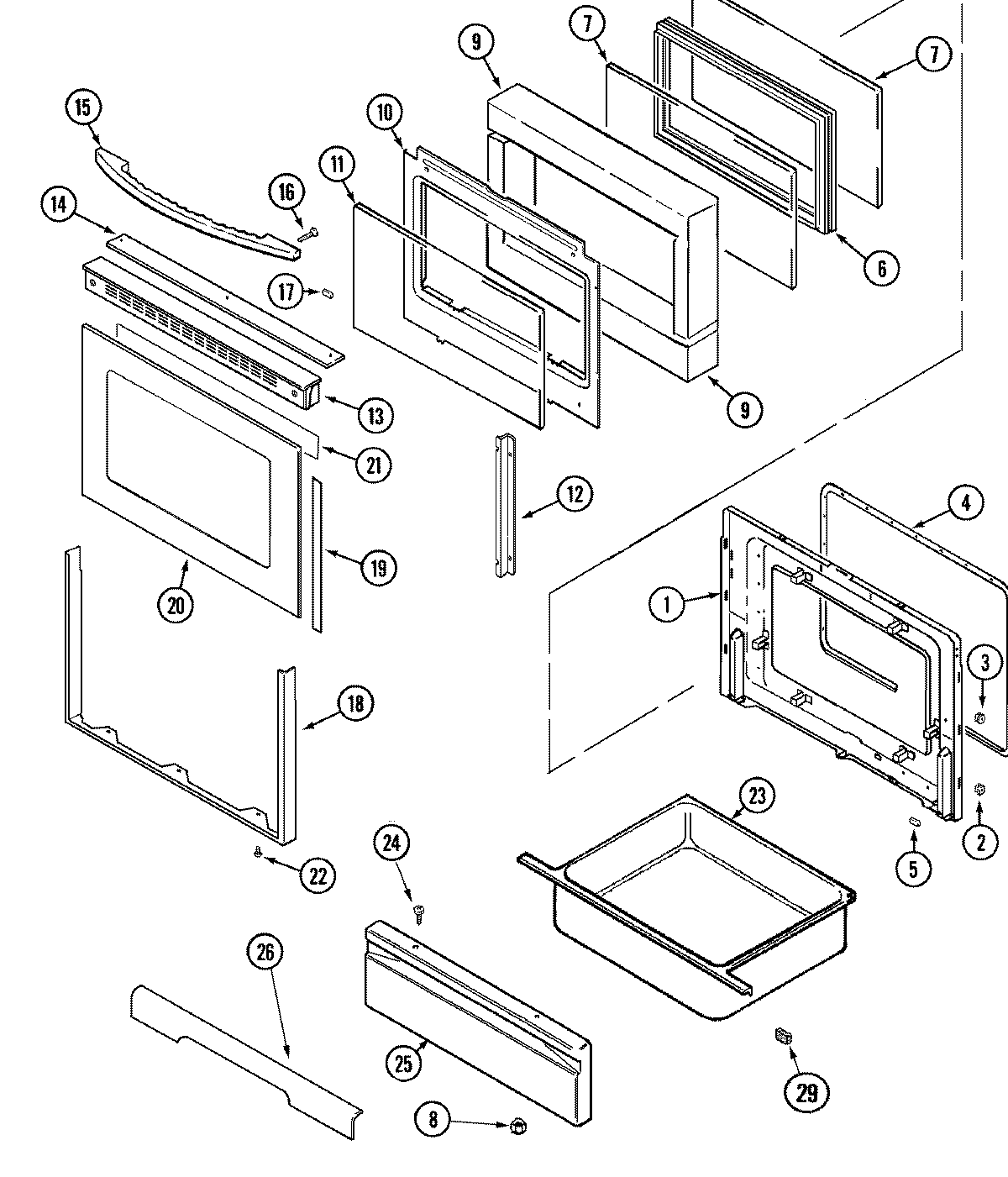

JER8849BCQ 03 – DOOR/DRAWER

Written by

Products

Position	Product
1	MAY 74003642
2	MAY 74003643
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
5	MAY 74003639
5	WP74005546 Whirlpool RU Spacer
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	WPW10131078 Whirlpool Nut Assembly
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	GLASS, DOOR
12	MAY 74003650
13	MAY 74006403
14	MAY 74004978
15	MAY 74006666
16	WP179051 Whirlpool Screw
17	MAY 71002092
18	MAY 74005162
18	WP74009541 Whirlpool Screw Assembly
19	MAY 74003660
20	MAY 74006740
21	TAPE, FOIL 29“ X 2“
22	SCREW
23	MAY 71003042
24	WP7101P072-60 Whirlpool Screw
25	MAY 71003607
26	MAY 71003594
