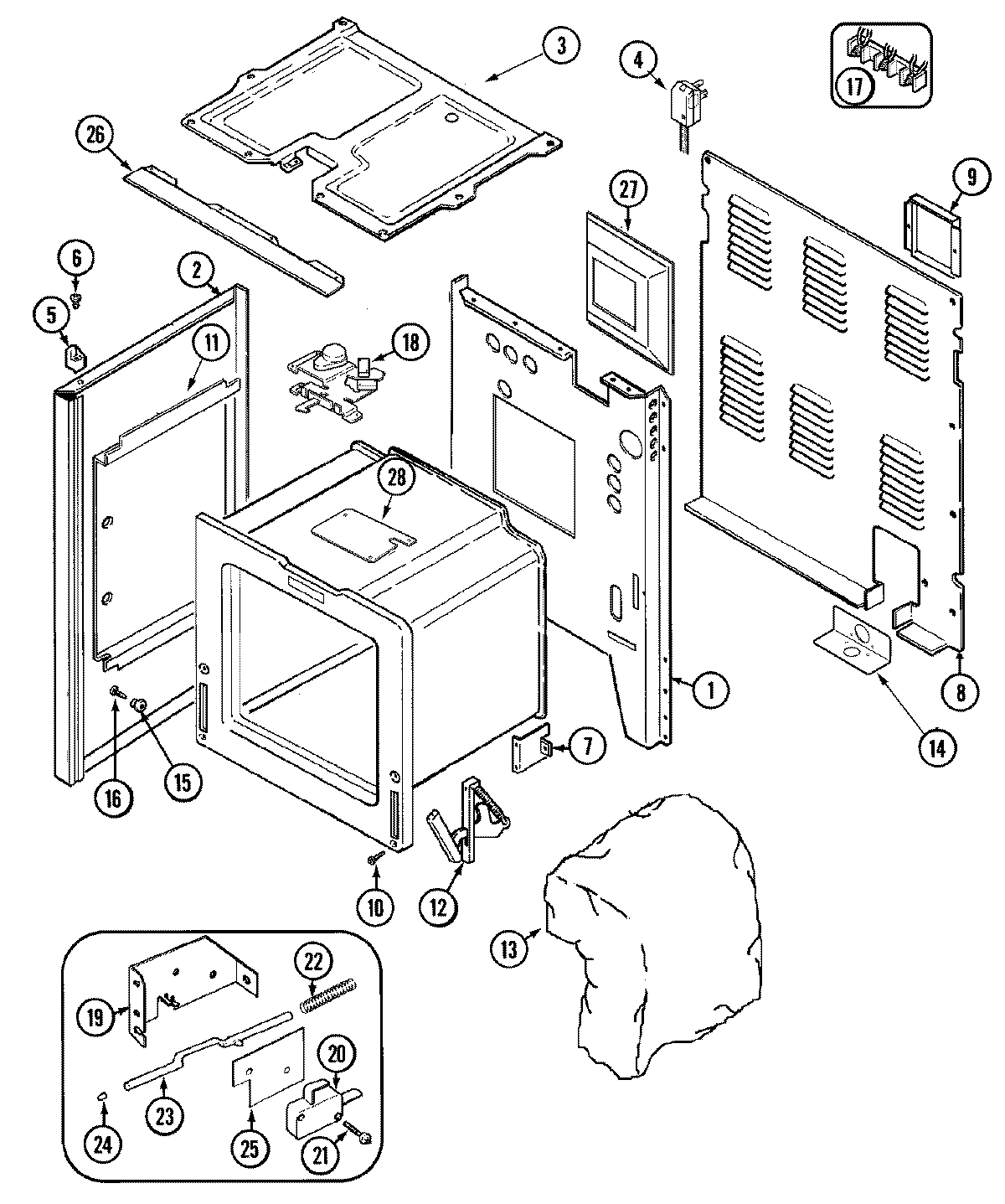

JER8849BCW 01 – BODY

Products

Position	Product
1	GROMMET
1	MAY 74006322
2	MAY 74003236
3	MAY 74007367
3	MAY 74007366
3	MAY 74006384
4	MAY 7402P050-60
4	CLIP, WIRE LOCK
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	SCREW
7	SUPPORT,OVEN REAR
8	MAY 74003241
9	MAY 4005F427-51
10	SCREW (10-24X5/16-NI)
11	MAY 74003422
12	HINGE-OVEN DOOR
13	WP74010942 Whirlpool Insulation
13	MAY 74005771
14	W10190166 Whirlpool Service Bracket
15	MAY 8004P024-60
16	W11693756 Whirlpool Screw Assembly
16	MAY 74001449
17	SCREW (10ABX1.0-ZN)
17	WPW10245259 Whirlpool Terminal Block
17	WP7103P027-60 Whirlpool Nut
18	MAY 74005478
18	MAY 74007721
19	WPY706189 Whirlpool Stove Screw
19	BRACKET, SWITCH ACTUATOR
20	MAY 74001802
21	MAY 912012
23	ROD, DOOR LIGHT SWITCH
24	MAY 74001631
25	MAY 74001872
26	MAY 74003384
27	MAY 74005498
28	MAY 74006590
28	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
28	MAY 74005496
28	MAY 74006825
