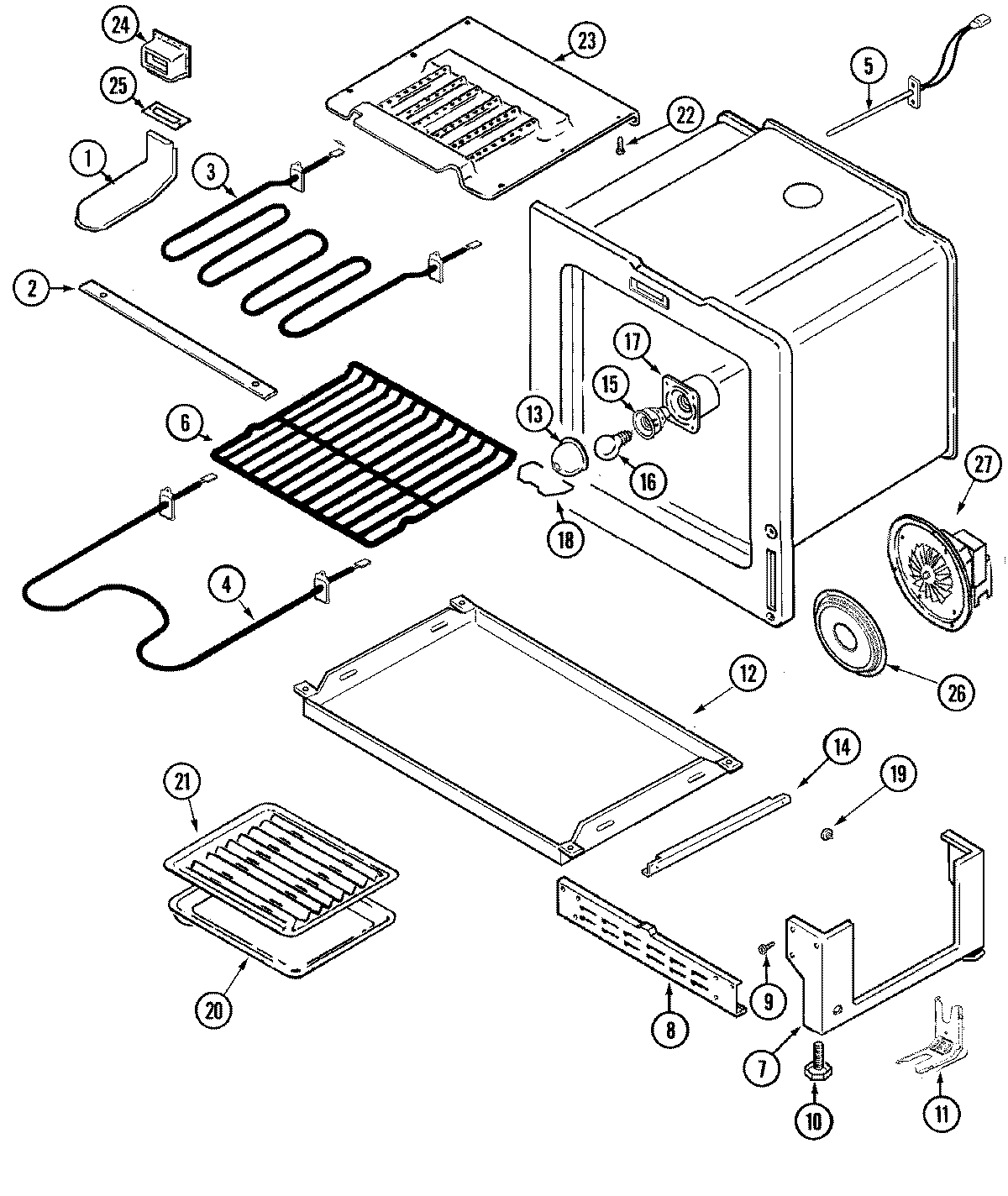

JER8849BCW 04 – OVEN/BASE

Products

Position	Product
1	MAY 74003394
2	MAY 74003563
2	WP400021-1 Whirlpool Screw
3	W11676350 Whirlpool Broil Element
4	WP74010750 Whirlpool Oven Bake Element
5	12001656 Whirlpool Range Oven Temperature Sensor
6	WPW10282492 Whirlpool Oven Rack
7	MAY 74006325
8	MAY 4020F001-80
10	W11665456 Whirlpool Range Level Foot
11	WP7101P485-60 Whirlpool Anchor Tip
11	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
12	RETAINER, INSULATION (BOTTOM)
13	MAY 74003389
14	SHAFT, STORAGE DRAWER ROLLER
15	MAY 74003387
16	RANGE ONLY 40W 120V APPL BULB
17	MAY 74003388
18	MAY 74003391
19	WP74004078 Whirlpool Door Roller
20	MAY Y3401F02019
21	MAY Y3413F01619
23	MAY 3601F237-47
24	MAY 74004534
24	SCREW
25	MAY 74003285
26	MAY 71001394
26	MAY 702592
26	COVER, CONVECT
27	MAY 74006807
