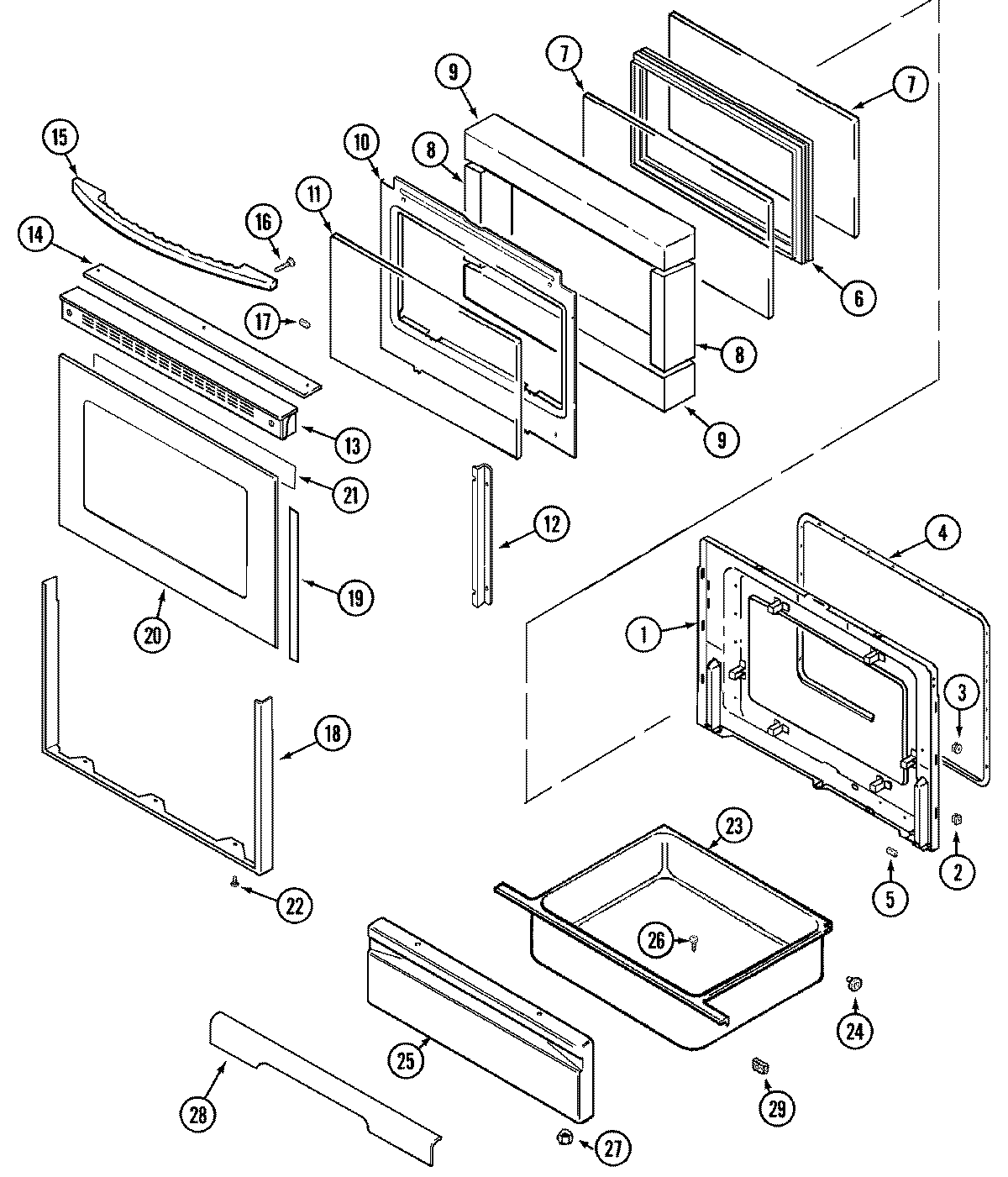

JER8850AAB 03 – DOOR/DRAWER

JER8850AAB 03 – DOOR/DRAWER

Written by

in

JER8850AAB 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74003642
2MAY 74003643
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8MAY 74003646
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13WP74003652 Whirlpool Door Trim
15MAY 74003655
16WP179051 Whirlpool Screw
17MAY 71002092
18MAY 74004841
18WP98008545 Whirlpool Screw
18MAY 74004324
19MAY 74003660
20MAY 74003662
21TAPE, FOIL 29“ X 2“
22SCREW
23MAY 74003618
24MAY 74003566
24WP488130 Whirlpool Air Conditioner Nut
25MAY 74003666
26WP7101P072-60 Whirlpool Screw
27WPW10131078 Whirlpool Nut Assembly
28MAY 74003669
29MAY 8010P085-60
